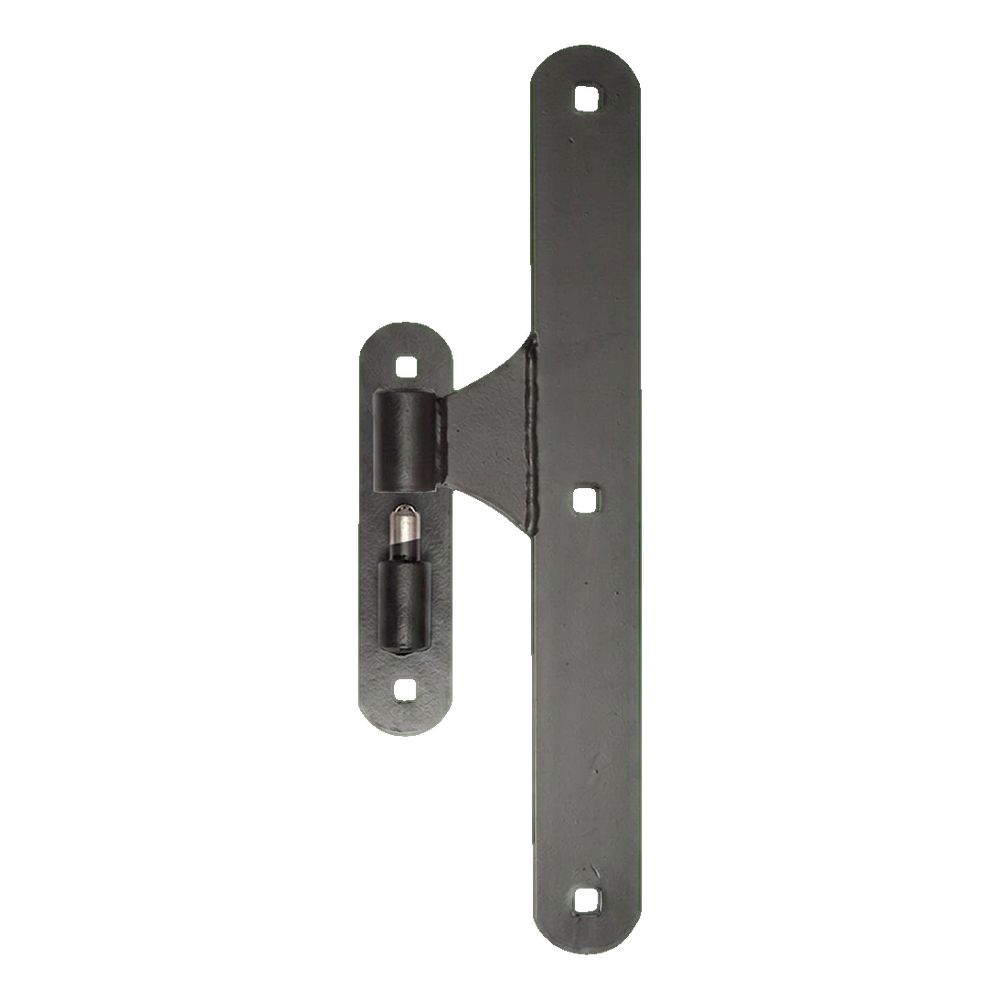

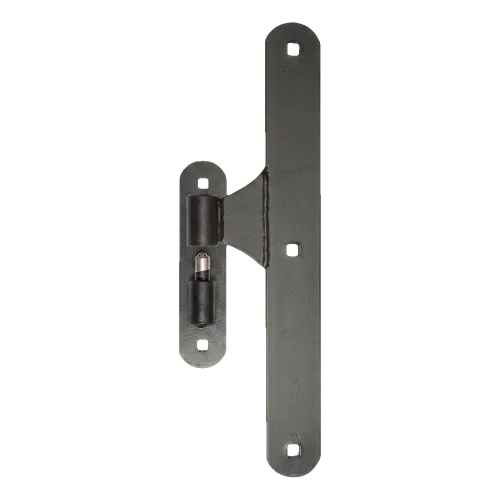

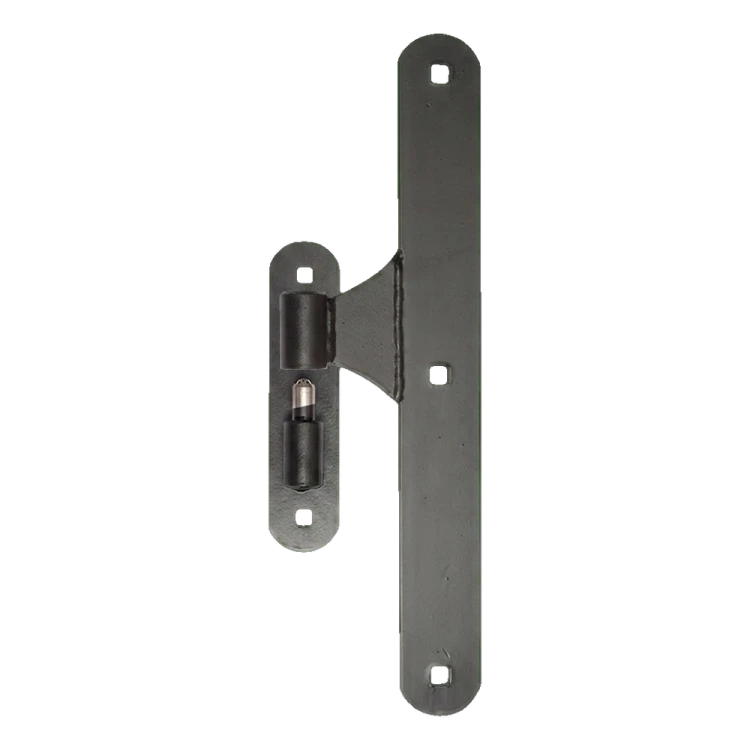

Central Strap Hinge with Ball for Leaf Gates 400 mm
Leave feedback on the product
Central strap hinge with ball for leaf gates. Height 400 mm, arm width 50 mm. Steel plate thickness 5 mm. Pin diameter 16 mm, sleeve 27 mm. Weight 1.68 kg. For mounting between the upper and lower hinges.
Product code: 001-498
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Central Strap Hinge with Ball for Leaf Gates 400 mm
Central strap hinge with ball designed for mounting leaf gates. Solid construction with mounting holes for screwing ensures durable and stable fixing of the gate leaf. Thanks to the use of a ball in the rotation axis, the hinge guarantees smooth operation of the gate and ease of adjustment, which translates to faster and more precise installation.
The hinge is made from thick steel plate with a thickness of 5 mm, ensuring high mechanical strength necessary for daily operation of leaf gates. Square mounting holes allow the use of carriage bolts, which effectively prevents them from rotating during tightening — this is an important convenience for an installer working alone.

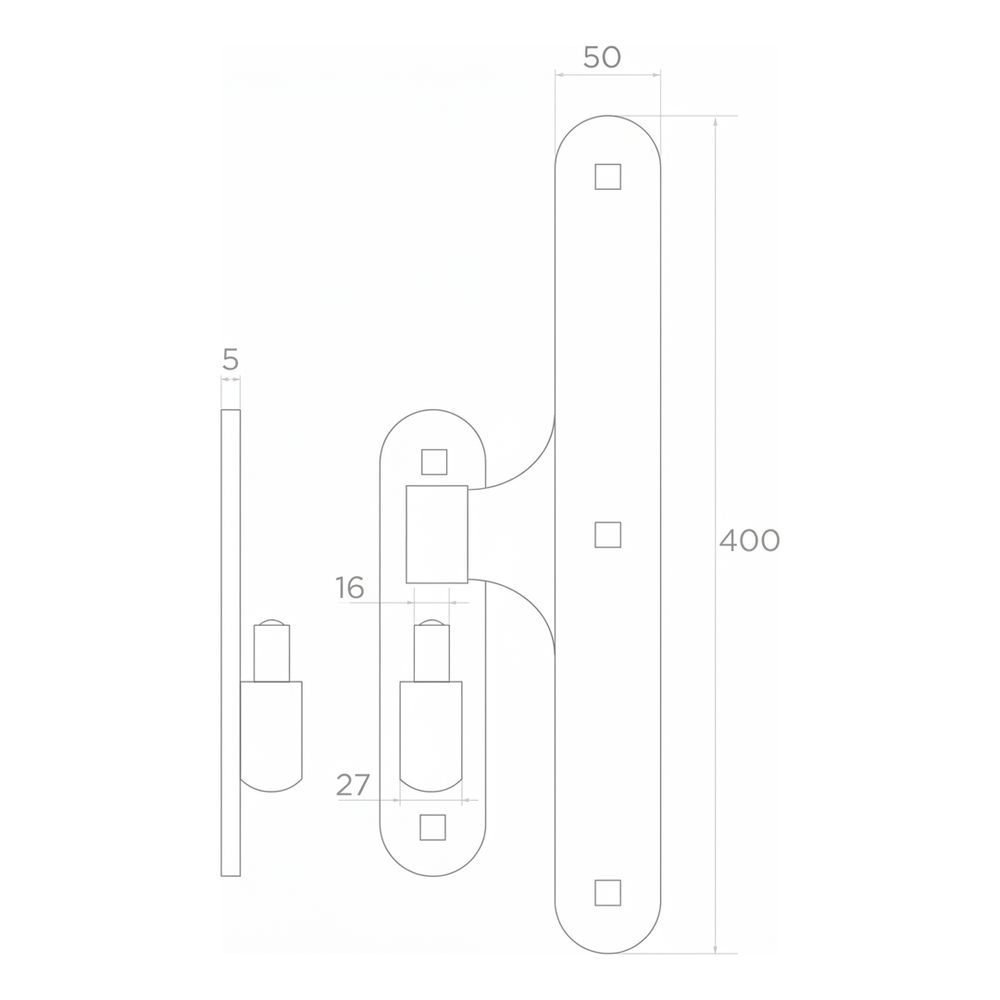

Dimensions and technical parameters
- Total height (H): 400 mm
- Arm width (L): 50 mm
- Plate thickness: 5 mm
- Pin diameter: 16 mm
- Sleeve diameter: 27 mm
- Weight: 1.68 kg
- EAN: 5901431940864
Application
The central hinge is mounted on the middle hinge of the gate leaf — between the upper and lower hinges. Its purpose is to provide additional support for heavy gate leaves and evenly distribute the load over the entire height of the post. Ideal for leaf gates in garden fencing systems, entrances to industrial sites, and heavy gates.
