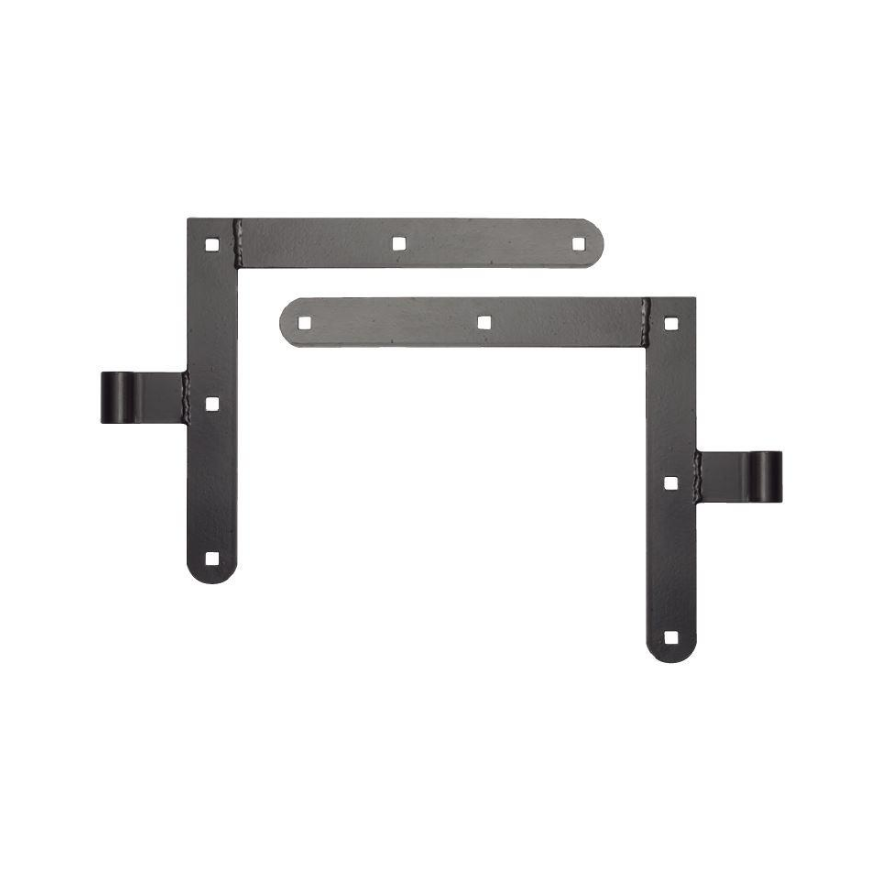

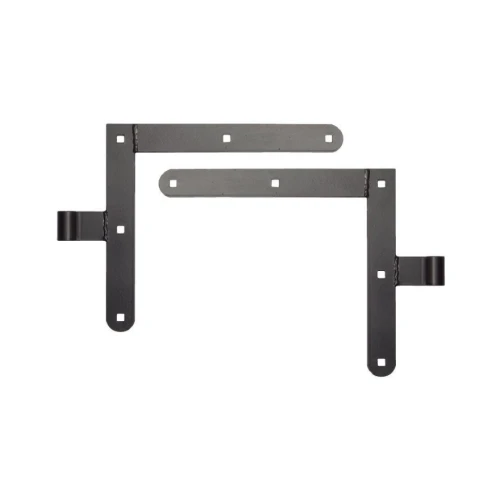

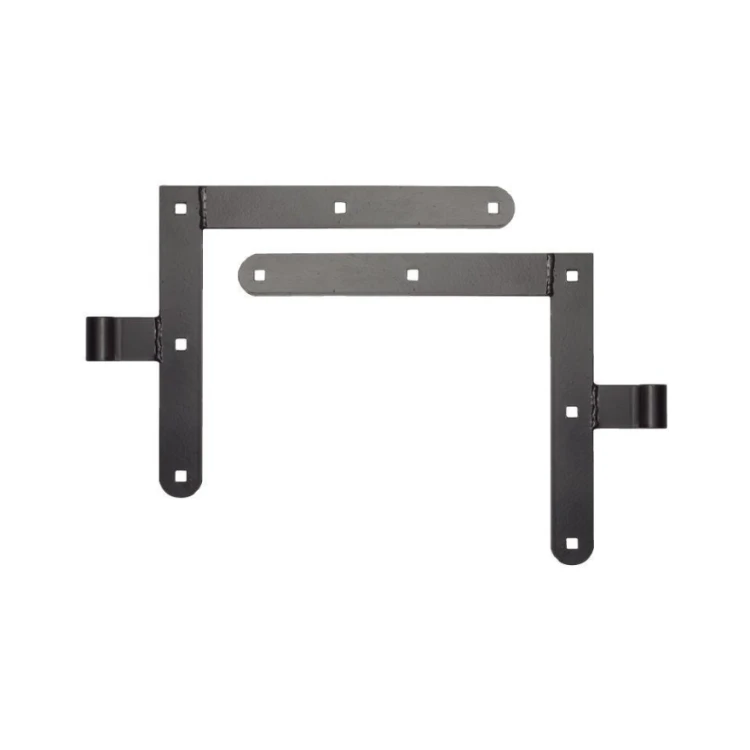

Black steel angle hinge H250 x L285 mm – set of 4 pcs for two leaves
Leave feedback on the product
Black steel angle hinge H250 x L285 mm, set of 4 pcs. Sheet thickness 4 mm, flat bar width 35 mm, pin diameter 14 mm. KTL cataphoretic painting. Weight 1.3 kg. For doors, gates and barriers.
Product code: 001-501
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Black steel angle hinge H250 x L285 mm – set of 4 pcs for two leaves
Set of four angle hinges designed for mounting large doors, gates and barriers — particularly in farm buildings and fencing installations. The set includes 4 hinges for two leaves, which allows completion of installation with one order, without the need to assemble components separately.
Durable paint coating
The hinges are coated with durable primer paint used in the automotive industry. The paint coating is applied using cataphoresis method with BASF technology, and the elements are cured at 200°C temperature after paint application. Before painting, the products underwent thorough cleaning using HENKEL technology, which ensures maximum paint adhesion and highest quality anti-corrosion protection. The result is a smooth, aesthetic, black surface resistant to mechanical damage and corrosion.
Design advantages
- Aesthetic appearance — smooth black surface complements modern fencing and gates well
- High corrosion resistance — BASF cataphoretic coating + HENKEL cleaning technology
- Mechanical strength — hinges do not bend under the weight of heavy doors and gate leaves
- Mechanical damage resistance — hardened coating cured at 200°C
- Complete set for two leaves — 4 pieces in the set eliminate the need for separate ordering

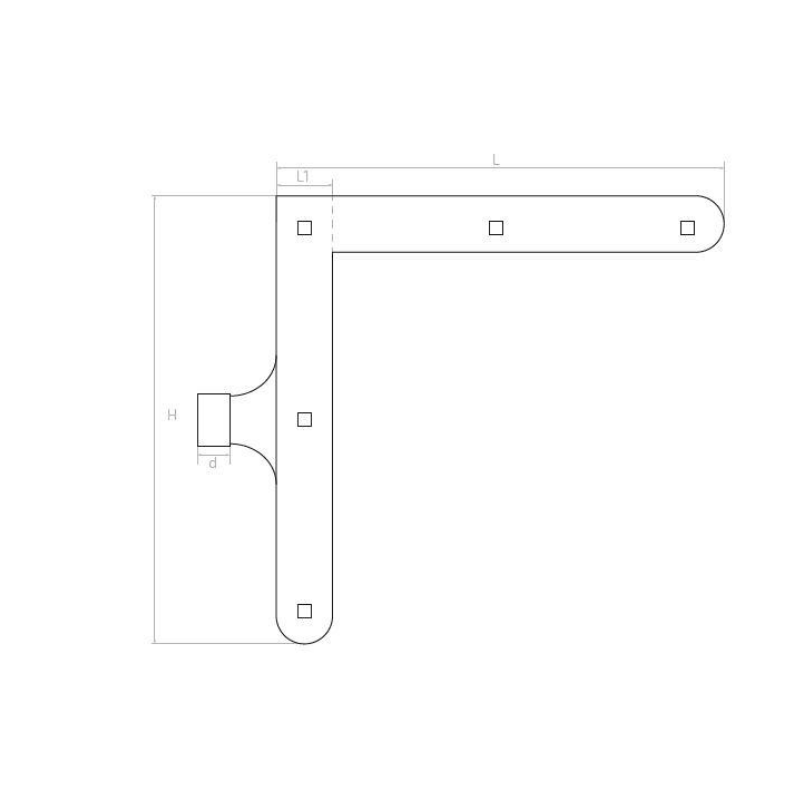

Dimensions and technical parameters
- Vertical arm height (H): 250 mm
- Horizontal arm length (L): 285 mm
- Flat bar width: 35 mm
- Sheet thickness: 4 mm
- Pin diameter: 14 mm
- Material: steel
- Colour: black
- Anti-corrosion protection: cataphoretic painting (KTL)
- Set weight: 1.3 kg
- Quantity in set: 4 pcs (for two leaves)
- Mounting holes: square
Application
Angle hinges are ideal for mounting large and heavy leaves — doors in farm buildings, garden gates, entrance gates and fencing leaves. The angle construction provides stable support for the leaf in two planes, which is crucial for elements with large mass and surface area exposed to wind loads.
