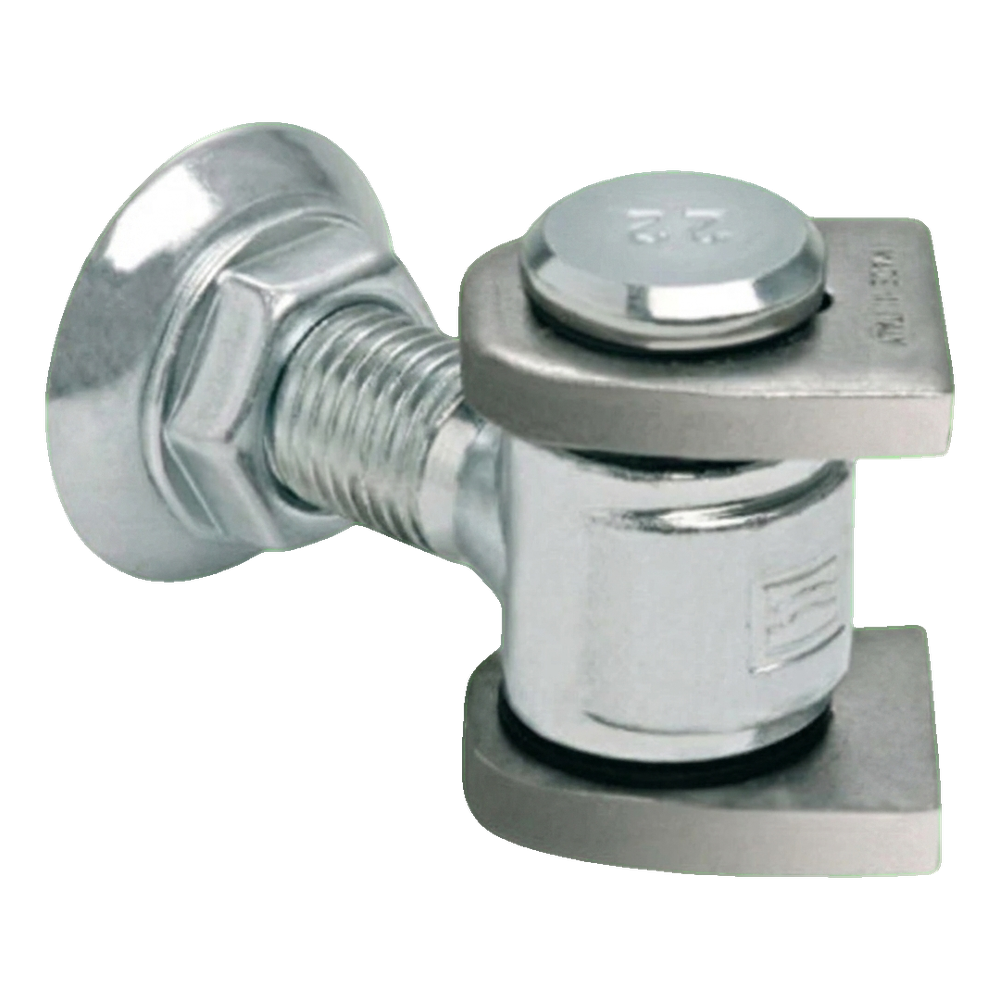

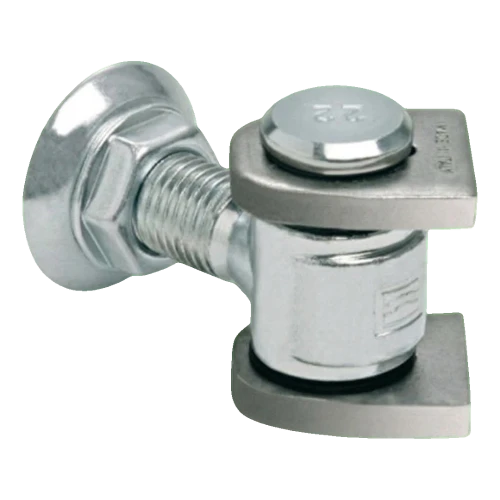

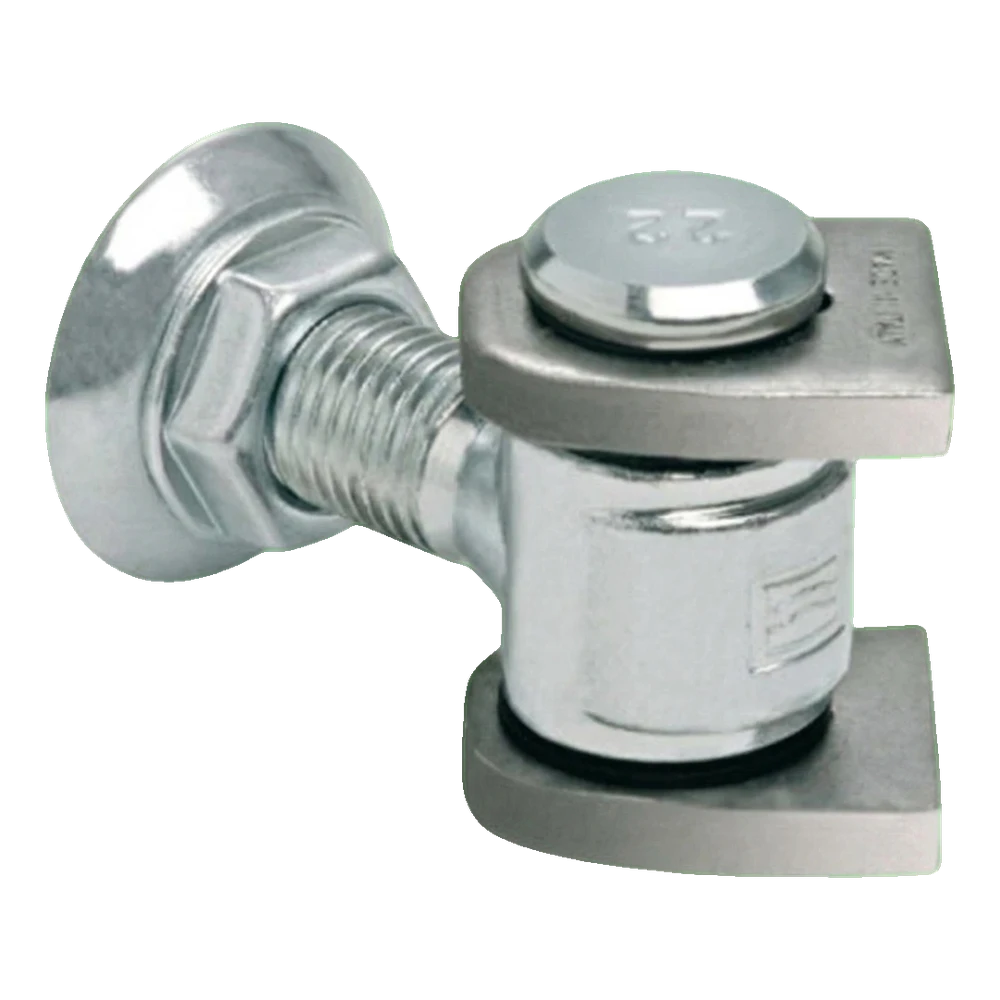

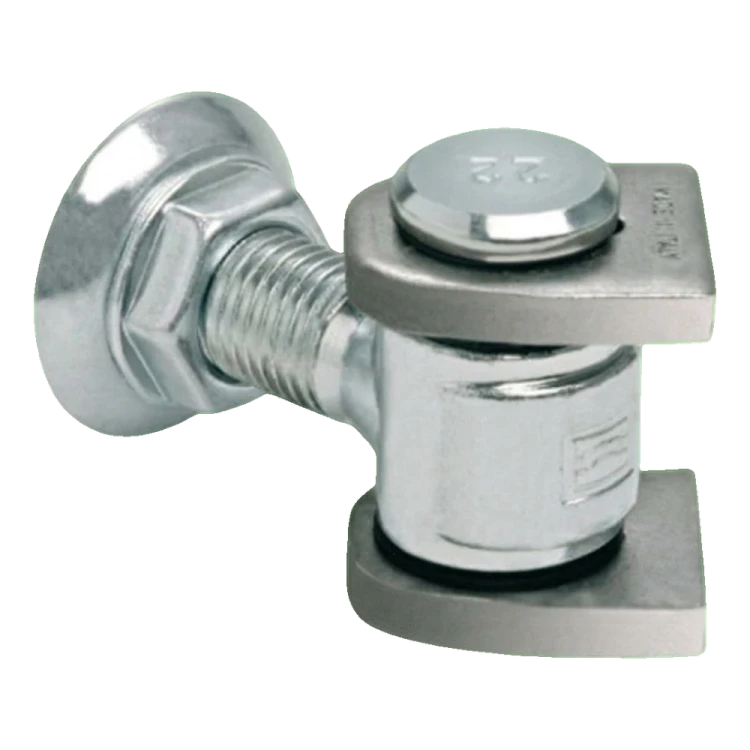

COMUNELLO adjustable steel hinge M22 for gates and garden wickets
Leave feedback on the product
COMUNELLO M22 adjustable hinge made of steel with protective coating. M22 thread, height 108 mm, bracket width 53 mm, base diameter 70 mm, weight 0.845 kg. For swing gates and garden wickets. Multi-plane adjustment after installation.
Product code: 001-377
Product features
[PIM] zawiasy #113
- Thread type M22
- Mounting Method Wall-Embedded
- Material Steel
Description
COMUNELLO adjustable steel hinge M22 for gates and garden wickets
COMUNELLO adjustable hinge M22 is a durable hardware component designed for mounting swing gates and wickets in fence posts. The M22 thread ensures solid seating in the post, and the hinge construction enables multi-plane adjustment of the gate leaf position after installation is complete — significantly speeding up adjustment and eliminating the need for dismantling.
Made of steel with protective coating, the hinge features high resistance to mechanical loads and weather conditions. The compact design with wide base ensures stable force transmission even with heavy gate leaves. Product by COMUNELLO — a European manufacturer of automation systems and fence hardware.
Advantages for installers
- Quick installation — M22 thread screwed directly into the fence post
- Post-installation adjustment — possibility to correct leaf positioning without dismantling the hinge
- High load capacity — massive steel construction resistant to dynamic loads

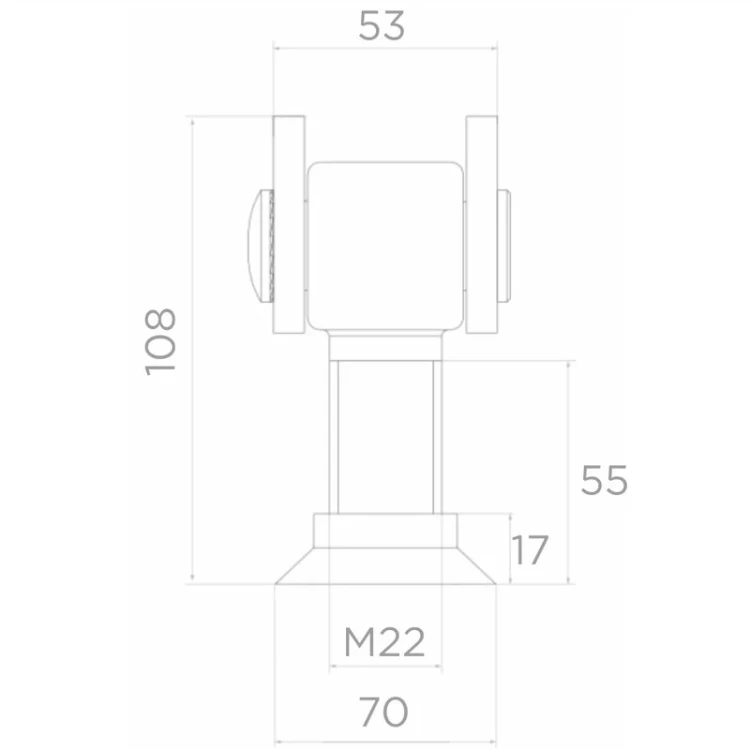

Dimensions and technical data
- Manufacturer: COMUNELLO
- Spindle thread: M22
- Total height: 108 mm
- Bracket (eye) width: 53 mm
- Threaded section length: 55 mm
- Base (flange) diameter: 70 mm
- Flange height: 17 mm
- Length (L): 97 mm
- Material: steel with protective coating
- Weight: 0.845 kg
- EAN: 8028390207368
