Ball bearing hinge φ 24 with mounting plate 150×40 mm for gates and wickets
Leave feedback on the product
Ball bearing hinge φ 24 with mounting plate 150×40 mm. Steel plate thickness 4 mm, ball ø 24 mm, hole spacing 110 mm, holes ø 10.5 mm. Weight 0.44 kg. For gates and wickets.
Product code: 001-497
Product features
[PIM] zawiasy #113
- Diameter 24
- Mounting Method Weld-On
- Material Steel
Description
Ball bearing hinge φ 24 with mounting plate 150×40 mm for gates and wickets
Ball bearing hinge φ 24 with mounting plate is a robust hardware component designed for mounting gates, wickets and heavy fence panels. The construction based on a turned ball with 24 mm diameter ensures smooth hinge operation even under heavy loads, whilst the massive mounting plate with two fixing holes guarantees stable and durable attachment to posts or frames.

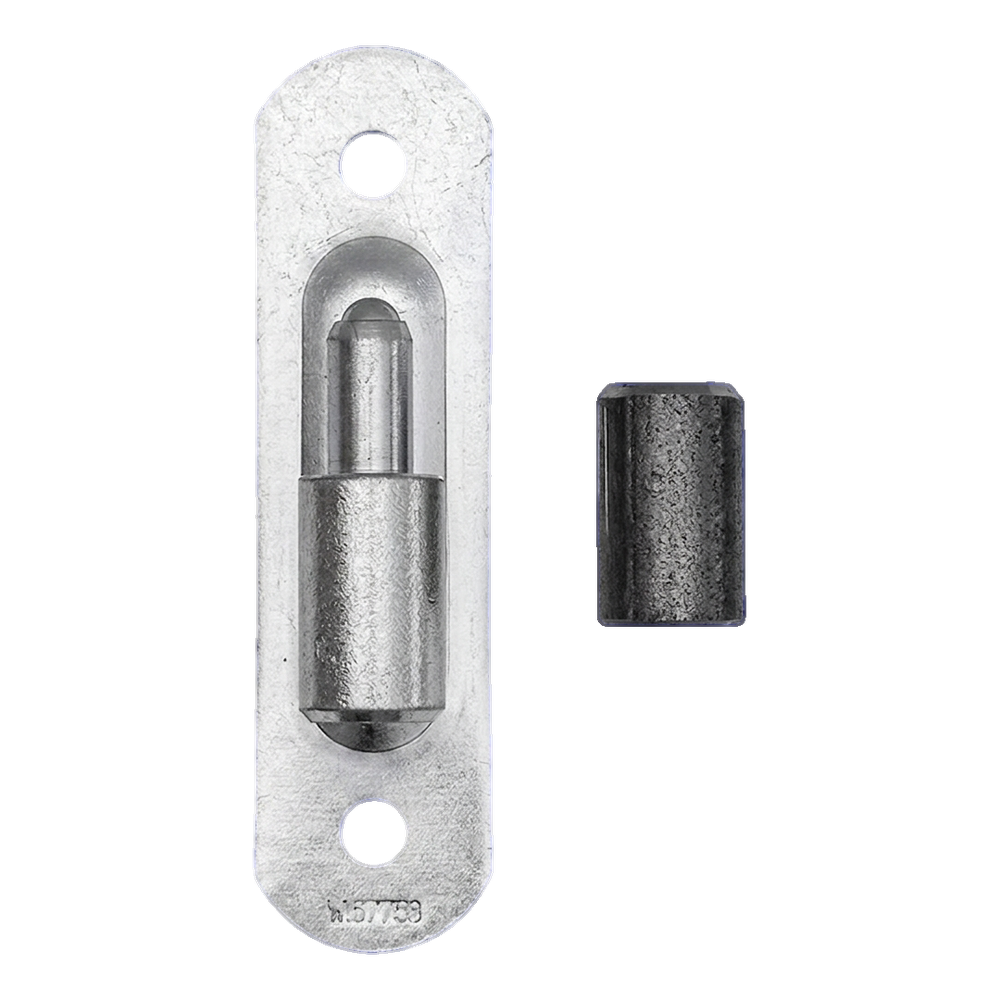

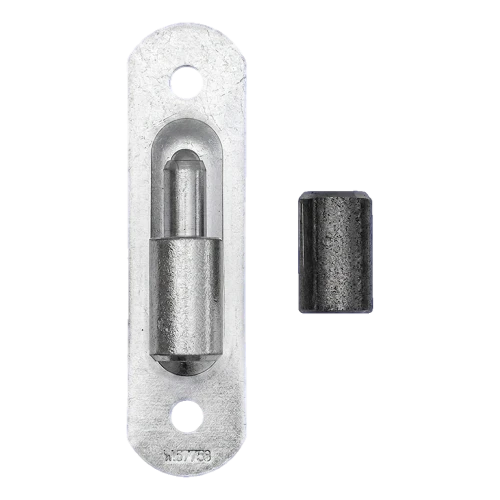

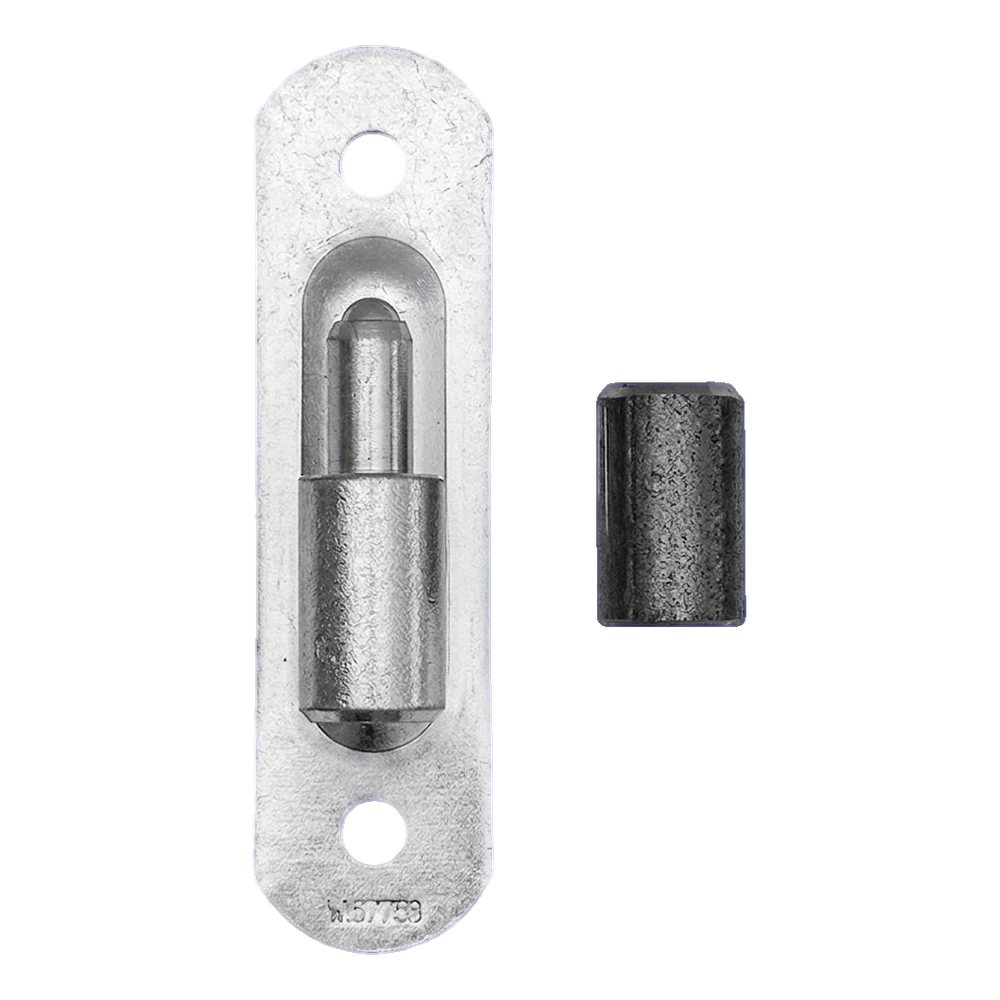

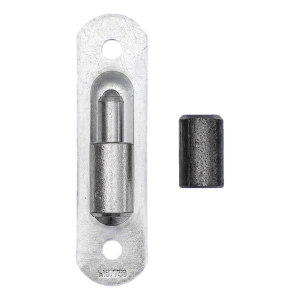

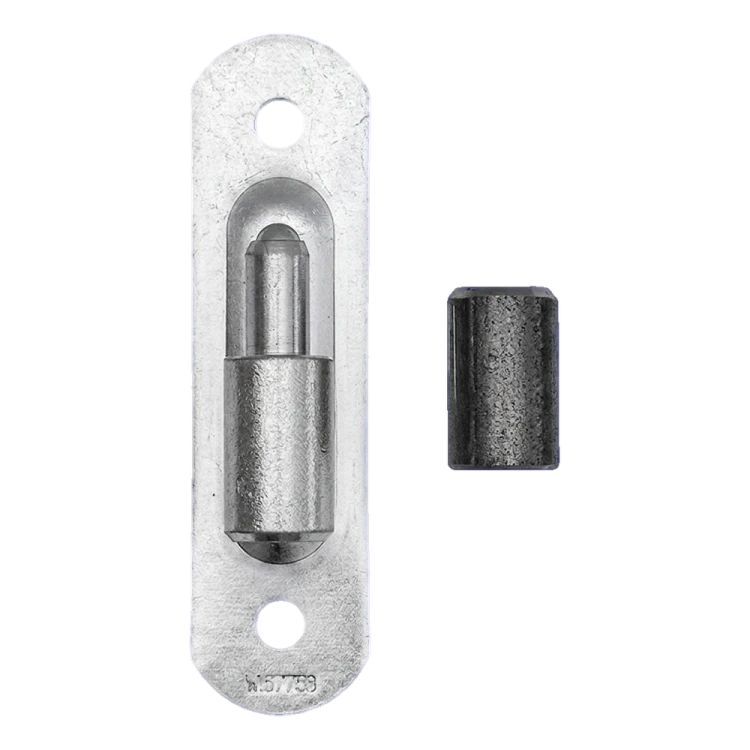

The set includes a steel mounting plate with ball pin and bushing (socket), which forms the counter-element of the hinge. Thanks to precision turning of components, the hinge operates quietly and smoothly, which is particularly important for frequently opened entrance gates and property wickets.

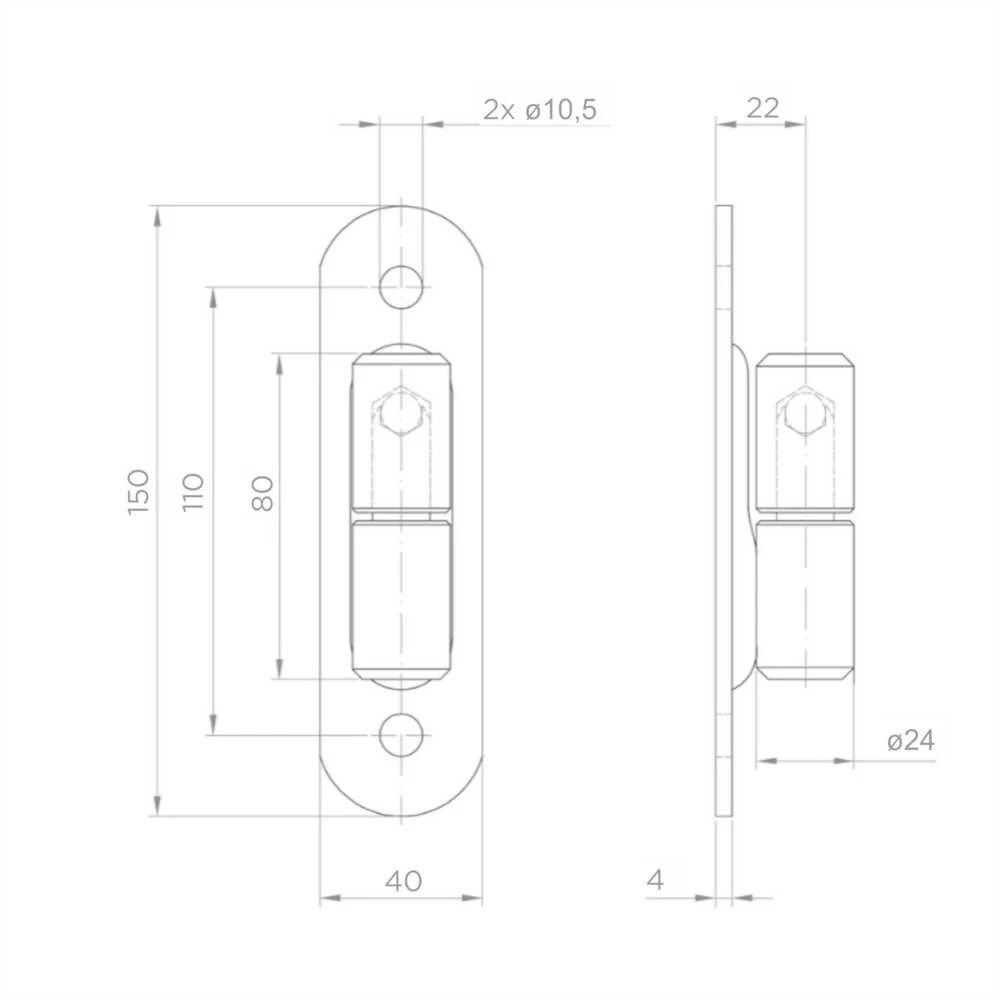

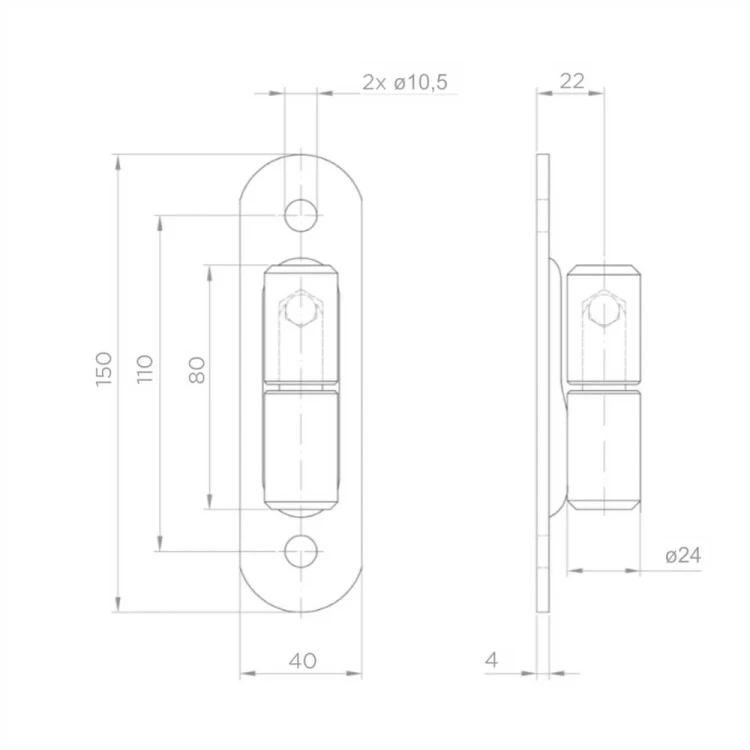

Dimensions and technical parameters
- Plate height: 150 mm
- Plate width: 40 mm
- Plate thickness: 4 mm
- Ball (pin) diameter: ø 24 mm
- Turned section height: 80 mm
- Mounting hole spacing: 110 mm
- Mounting hole diameter: 2× ø 10.5 mm
- Distance of hinge axis from plate surface: 22 mm
- Weight: 0.44 kg
- EAN: 99915727
Application and mounting
The hinge is designed for bolt-on installation — two mounting holes with 10.5 mm diameter allow fixing using M10 bolts. It performs excellently as a suspension element for entrance gate panels, garden wickets and other heavy fence structures. Solid steel construction and turned ball ensure long-lasting, trouble-free operation even in harsh weather conditions.
