DC Surge Protector iPRD-DC40r-T2 3-Pole Type 2 15kA With Contact
DC Type 2 surge protection device, 3-pole 1000V with nominal discharge current 15kA and maximum 40kA. Protection level 3.9kV, DIN rail 35mm mounting, local signalling white-red flag, IP20.
GPV-401-05 Availability: In stock (large quantity)
Delivered within: 10 Business days
Eaton PV DC Surge Arrester Type 1+2 (Class B+C) 1000V 2P+N 15kA 3.7kV
DC Type 1+2 surge protection device for photovoltaic installations 1000V 2P+N, discharge current 15kA, protection level 3.7kV. Replaceable cartridges, optical status indicator, withstand rating 40kA, mounting on DIN rail TH-35.
GPV-401-44 Availability: In stock (large quantity)
Delivered within: 10 Business days
Eaton Surge protector type 2 (C) 4P 20kA 1.4kV
Surge arrester, surge protector B+C SPBT12-280/1 EATON is an advanced Type 2 (C) protection device designed to effectively protect electrical installations against surges.
GPV-401-226 Availability: In stock (large quantity)
Delivered within: 10 Business days
ETI PV DC Surge Arrester Type 1+2 (Class B+C) 1100V 3P 65kA 3.8kV
Type 1+2 (Class B+C) surge protection device for photovoltaic installations, 1100V DC voltage, 3-pole. Impulse current 65kA (10/350), protection level 3.8kV. MOV technology with varistors with thermal protection. Optical fault indication (green/red indicator). Protection of PV modules against switching and atmospheric overvoltages.
GPV-401-64 Availability: In stock (large quantity)
Delivered within: 10 Business days
ETI Surge Arrester PV DC Type 1+2 (Class B+C) 1100V 3P 20kA 3.8kV
Type 1+2 (B+C) surge protection device for 1100V DC photovoltaic installations, 3-pole with 20kA discharge current and 3.8kV protection level. Mounting on DIN rail TH-35mm, protection degree IP20.
GPV-401-38 Availability: In stock (large quantity)
Delivered within: 10 Business days
ETI Surge Arrester PV DC Type 1+2 (Class B+C) 1200V 3P 12.5kA 4.4kV
Type 1+2 surge protection device for PV installations, 1200V DC voltage, 3-pole. Discharge current 12.5kA (10/350), protection level 4.4kV. DIN rail mounting, varistor damage indicator, thermal protection for each pole.
GPV-401-50 Availability: Temporarily unavailable
£133.09

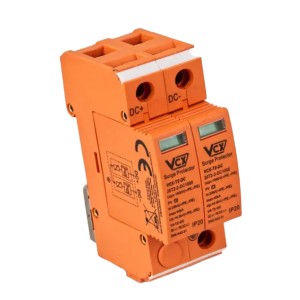

PV DC Surge Arrester Type 2 (Class C) 1000V 2P 20kA 4.0kV
DC Type 2 surge protection device for photovoltaic systems, 1000V 2P, discharge current 20kA, protection level Up <4.0kV. Varistor-based design with status indicator and thermal disconnect, IP20 enclosure rating.
GPV-401-13 Availability: In stock (large quantity)
Delivered within: 10 Business days

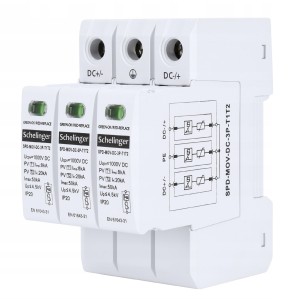

Schelinger Surge Arrester 3P 8kA DC 1000V
3-pole surge protection device for photovoltaic installations, impulse current 8kA (10/350µs), DC operating voltage 1000V. Type T1+T2, mounting on DIN rail 35mm, temperature range -40°C to +70°C. Protection IP20, dimensions 90x54x68mm, occupies 3 modules.
GPV-401-24 Availability: In stock (large quantity)
Delivered within: 10 Business days

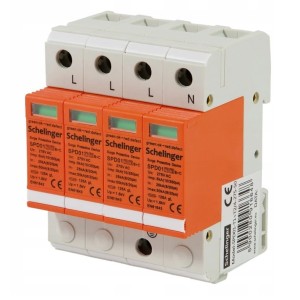

Schelinger Surge Protector 4P 5kA Class T1+T2 (B+C)
4P surge protection device | Class T1+T2 (B+C) | Iimp 5kA. Impulse current 5kA and maximum discharge current Imax 50kA. Voltage protection level Up <1.5kV, operating voltage Uc 275V AC, DIN rail TH-35 mounting.
GPV-401-25 Availability: In stock (large quantity)
Delivered within: 10 Business days
Simtec Surge Arrester PV DC Type 1+2 (Class B+C) 1000V 3P 20kA 4.5kV
Type 1+2 (B+C) varistor surge protection device for PV installations, 1000V DC, 3-pole. Discharge current 20kA, protection level ≤4.5kV, response time <25ns. DIN rail TS35 mounting, IP20.
GPV-401-16 Availability: In stock (large quantity)
Delivered within: 10 Business days
Simtec Surge Arrester Type 1+2 (Class B+C) 1P 30kA
Class B+C (Type 1+2) surge arrester with 30kA discharge current and ≤25ns response time. Single-pole modular design for 35mm DIN rail mounting, IP20 protection rating. Cartridge replacement without dismounting the entire device.
GPV-401-37 Availability: In stock (large quantity)
Delivered within: 10 Business days
Simtec Surge Arrester Type 1+2 (Class B+C) 4P 30kA 1.5kV
Type 1+2 (Class B+C) surge protection device 4P 30kA with voltage protection level 1.5kV. Designed for TN-S networks, DIN rail mounting, IP20 protection rating. Response time 25 ns, operating frequency 40-63 Hz.
GPV-401-29 Availability: In stock (large quantity)
Delivered within: 10 Business days
Simtec Surge protector type 2 (class C) 4P 20kA 1.5kV
Surge protector type 2 (class C) 4P 20kA 1.5kV by SIMET is a device designed to protect electrical installations from surges that can adversely affect the duration and frequency of current.
GPV-401-202 Availability: In stock (large quantity)
Delivered within: 10 Business days
Surge arrester PV DC Type 2 (C) 1100V 3P 20kA 3.8kV ETITEC M T2 PV 1100/20 Y 002440515 ETI
Surge arrester PV DC Type 2 (C) 1100V 3P 20kA 3.8kV ETITEC M T2 PV 1100/20 Y 002440515 ETI is an advanced protective device that is used to protect electrical installations from the effects of lightning and surges occurring when switching on or off an unloaded overhead line.
GPV-401-135 Availability: In stock (large quantity)
Delivered within: 10 Business days
Surge arrester type 1+2 (B+C) 3P+N 12.5kA 1.5kV iPRD1-12.5r-T12-3N A9L16482 SCHNEIDER ELECTRIC
Surge arrester type 1+2 (B+C) 3P+N 12.5kA 1.5kV iPRD1-12.5r-T12-3N A9L16482 by SCHNEIDER ELECTRIC is a device designed to protect electrical installations against surges resulting from lightning and transmission network failures.
GPV-401-176 Availability: In stock (large quantity)
Delivered within: 10 Business days
Surge arrester Type 1+2 (B+C) 4P 50kA 1.2kV SPD MOV TN-S/TT network contact SPA931 HAGER
Surge arrester Type 1+2 (B+C) 4P 50kA 1.2kV SPD MOV TN-S/TT network contact SPA931 by HAGER also known as a lightning arrester, is designed to protect electrical installations from surges. This device is based on spark gaps and/or varistors, which consist of a base and an insert containing a protective element.
GPV-401-101 Availability: In stock (large quantity)
Delivered within: 10 Business days
Surge arrester type 2 (C) 4P 20kA 1.5kV ETITEC C T2 275/20 4+0 002440395 ETI
Surge arrester type 2 (C) 4P 20kA 1.5kV ETITEC C T2 275/20 4+0 002440395 by ETI is an advanced protective device designed to protect electrical installations from the effects of lightning and surges that may occur when switching on or off an unloaded overhead line.
GPV-401-97 Availability: In stock (large quantity)
Delivered within: 10 Business days
Surge Protector iPF40 3P+N 40kA GR.01/PG.A01 Acti9
Type 2 (C) surge protection device for TN-S/TT networks, 3P+N, 40kA In, 1.5kV Up. MOV + GDT technology, DIN rail mounting, dimensions 72x81x69mm. Operating voltage 230/400V AC.
GPV-401-04 Availability: In stock (large quantity)
Delivered within: 10 Business days
