SCHNEIDER ELECTRIC

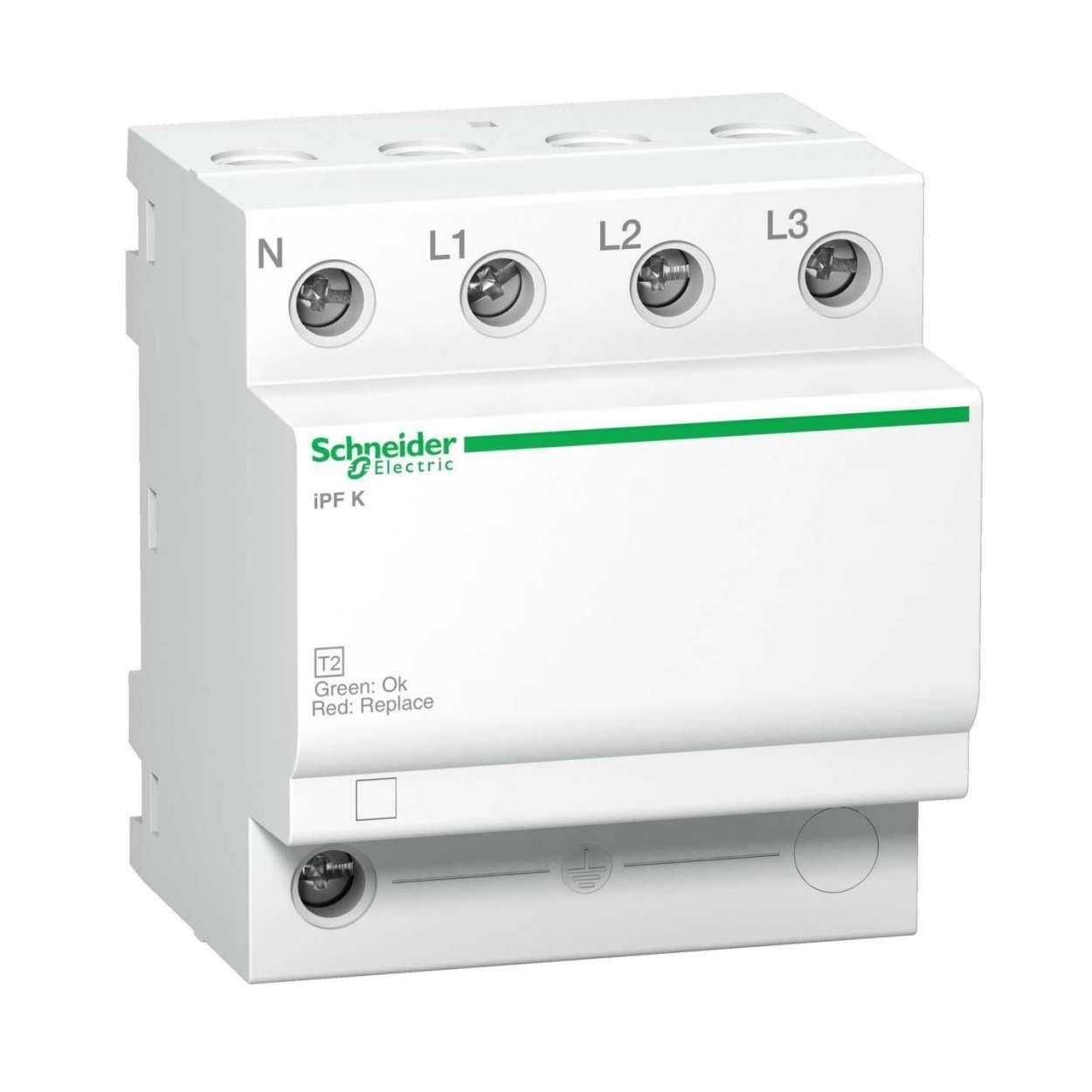

Surge Protector iPF40 3P+N 40kA GR.01/PG.A01 Acti9

Go to Product feedback

Type 2 (C) surge protection device for TN-S/TT networks, 3P+N, 40kA In, 1.5kV Up. MOV + GDT technology, DIN rail mounting, dimensions 72x81x69mm. Operating voltage 230/400V AC.

Go to full description
with VAT without VAT
Price €62.24
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] ograniczniki-przepiec #93

  • Application AC (mains)
  • Surge Protector Type (SPD Class) T2 (C)
  • Rated Voltage [V] 275V AC
  • Number of poles 3P+N
  • Lightning Current (Iimp/In) [kA] 15 kA
  • Brand SCHNEIDER ELECTRIC
  • Protection Level (Up) [kV] 1,5 kV

Description

Surge Protection Device Type 2 (C) 3P+N 40kA 1.5kV iPFK40-T2-3N A9L15688 SCHNEIDER ELECTRIC

Surge Protection Device Type 2 (C) 3P+N 40kA 1.5kV iPFK40-T2-3N A9L15688 SCHNEIDER ELECTRIC

  • Number of poles: 3P +N
  • Rated operational voltage [Ue]: 230/400 V alternating current (AC) (+/- 10%) at 50/60 Hz
  • Nominal discharge current [In]: common mode: 15 kA L/PE, common mode: 15 kA N/PE, differential mode: 15 kA L/N
  • Maximum discharge current [Imax]: common mode: 40 kA L/PE, common mode: 40 kA N/PE, differential mode: 40 kA L/N
  • Maximum continuous operating voltage [Uc]: common mode 260 V N/PE, differential mode: 340 V L/N
  • Voltage protection level [Up]: common mode <1.5 kV type 2 N/PE, differential mode <1.5 kV type 2 L/N
  • Mounting: DIN rail

SPECIFICATION

ParameterValue
Package weight0.407 kg
Elektroklubyes
For networkTN-S/TT
Protector classC (Type 2)
Nominal discharge current (In)40kA
Voltage protection level1.5kV
Number of poles3P +N
Remote signallingNone
Type of surge protectorElectrical distribution network
Surge protector classType 2
Surge protector technologyMOV + GDT
[Ue] rated switching voltage230/400 V alternating current (AC) (+/- 10%) at 50/60 Hz
Maximum continuous operating voltage [Uc]Common mode: 260 V N/PE Differential mode: 340 V L/N
Voltage protection level [Up]Common mode <1.5 kV type 2 N/PE Differential mode <1.5 kV type 2 L/N
Temporary overvoltage [Ut]337 V L/N 5 s withstand 442 V L/PE 5 s withstand 1200 V N/PE 200 ms withstand 1453 V L/PE 200 ms withstand
Dimensions72x81x69mm
