PV DC Surge Arrester Type 2 (Class C) 1000V 2P 20kA 4.0kV
Leave feedback on the product
DC Type 2 surge protection device for photovoltaic systems, 1000V 2P, discharge current 20kA, protection level Up <4.0kV. Varistor-based design with status indicator and thermal disconnect, IP20 enclosure rating.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] ograniczniki-przepiec #93
- Application DC (photovoltaic)
- Surge Protector Type (SPD Class) T2 (C)
- Rated Voltage [V] 1000V DC
- Number of poles 2P
- Lightning Current (Iimp/In) [kA] 20 kA
- Protection Level (Up) [kV] 4,0 kV
Description

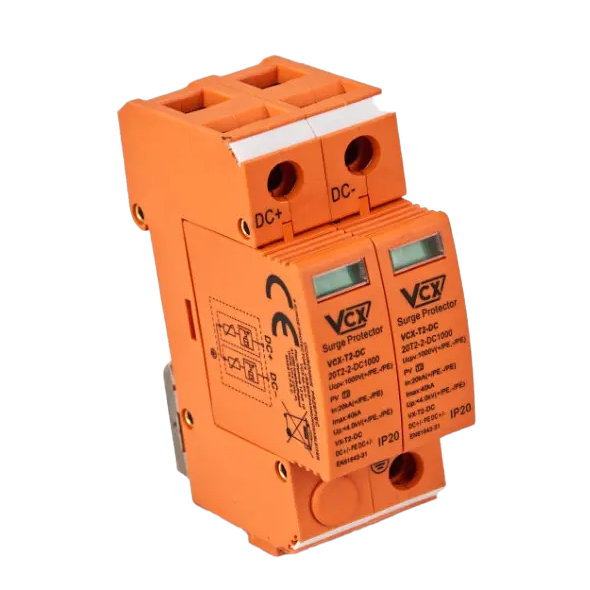

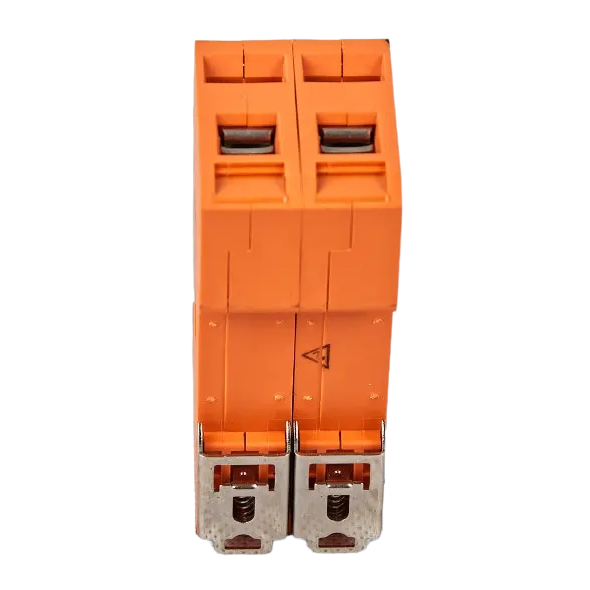

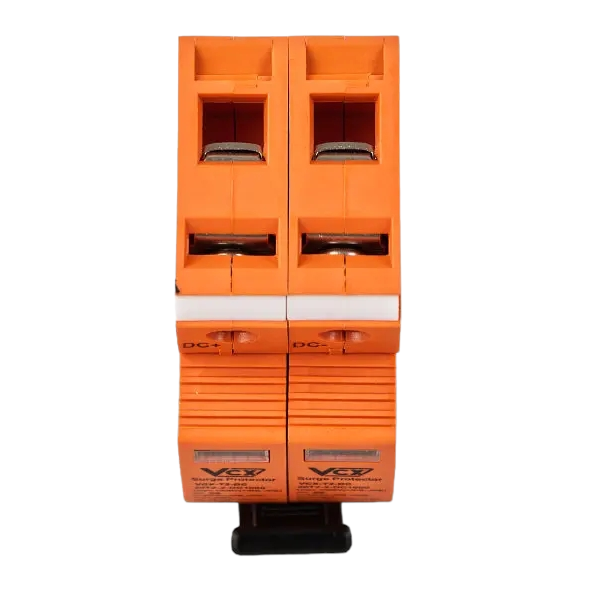

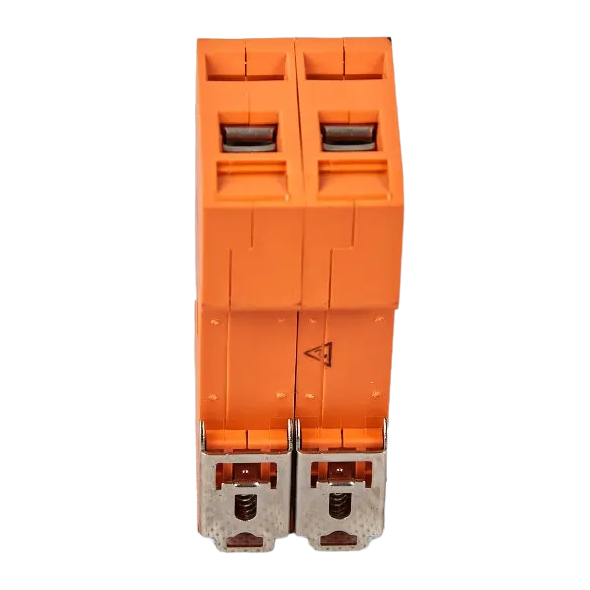

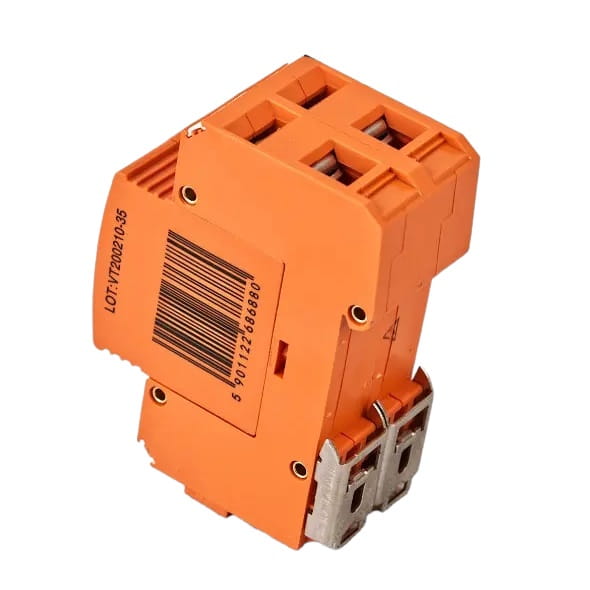

PV DC Surge Protective Device Type 2 (C) 1000V 2P 20kA 4.0kV DC C2P 1000 VCX
PV DC Surge Protective Device Type 2 (C) 1000V 2P 20kA 4.0kV DC C2P 1000 VCX, designed for photovoltaic (PV) systems, is a device providing surge protection for photovoltaic systems against lightning discharges.
Equipped with an operating status indicator, which shows active protection in green and lack of protection in red. Thanks to the built-in thermal protection, it does not require additional thermal protection measures, although their use is recommended. The VCX DC C 3P 1000 V type surge protective device is suitable for use in PV systems.
SPECIFICATION
| Parameter | Value |
|---|---|
| Type and series | Photovoltaic DC surge protective device class C 2P 1000V Professional PV arrester type 2 DC C2P 1000 VCX |
| Protection class | T2 |
| Design | varistor-based |
| Required protection | 32 A |
| Max. connection | 35 mm² |
| Rated operating voltage | Un 1000 V DC |
| Maximum operating voltage | Uc 1060 V DC |
| Test current | In (8/20) 20 kA |
| Max. current | Imax (8/20) 40 kA |
| Voltage protection level | Up <4.0 kV |
| Storage temperature | -30/+70°C |
| Ambient temperature | -30/+50°C |
| Degree of protection | IP20 |
| Package weight | 0.1 kg |
| For network | DC (Photovoltaic PV) |
| Arrester class | C (Type 2) |
| Number of poles | 2 |
| Nominal discharge current (In) | 6kA |
| Voltage protection level | 1kV |
| Width expressed in number of modules | 2 |
| Degree of protection IP | IP20 |
