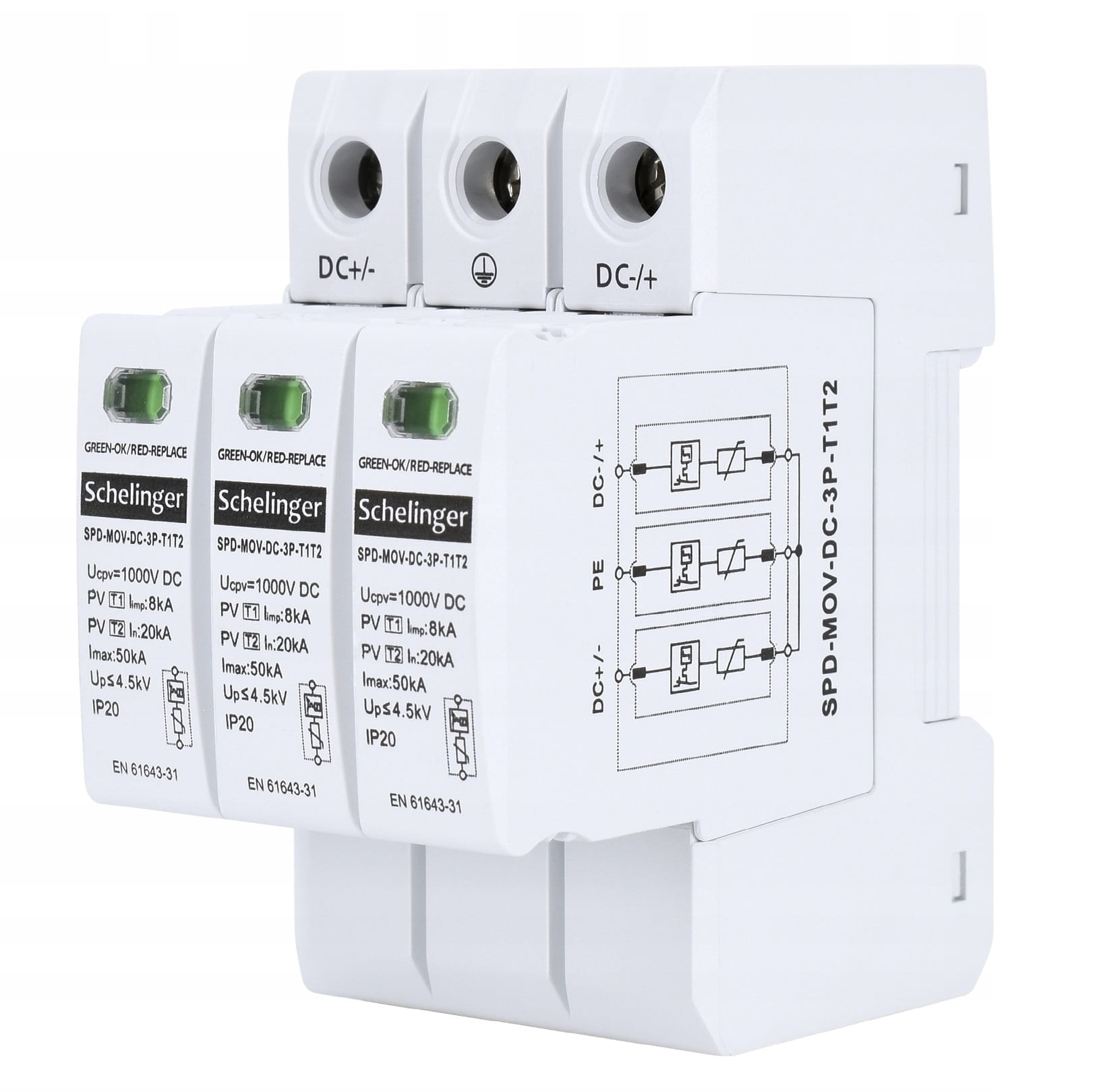

Schelinger Surge Arrester 3P 8kA DC 1000V
Leave feedback on the product
3-pole surge protection device for photovoltaic installations, impulse current 8kA (10/350µs), DC operating voltage 1000V. Type T1+T2, mounting on DIN rail 35mm, temperature range -40°C to +70°C. Protection IP20, dimensions 90x54x68mm, occupies 3 modules.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] ograniczniki-przepiec #93
- Application DC (photovoltaic)
- Surge Protector Type (SPD Class) T1+T2 (B+C)
- Rated Voltage [V] 1000V DC
- Number of poles 3P
- Lightning Current (Iimp/In) [kA] 8 kA
- Brand SCHELINGER
Description
Schelinger Surge Protection Device 3P 8kA DC 1000V
Surge protection device 3P 8KA DC 1000V T1T2 A53-SPD-MOV-DC-3P-T1T2 Schelinger
SPECIFICATION
| Parameter | Value |
|---|---|
| Length | 90mm |
| Width | 54mm |
| Height | 68mm |
| Number of modules | 3 |
| Mounting | DIN rail 35 (TH 35) |
| Maximum continuous operating voltage | Ucpv: 1000V DC |
| Impulse current (10/350µs) | Iimp: 8kA |
| Operating temperature | -40°C /+70°C |
| Type | T1+T2 |
| Brand | Schelinger |
| IP rating | IP20 |
