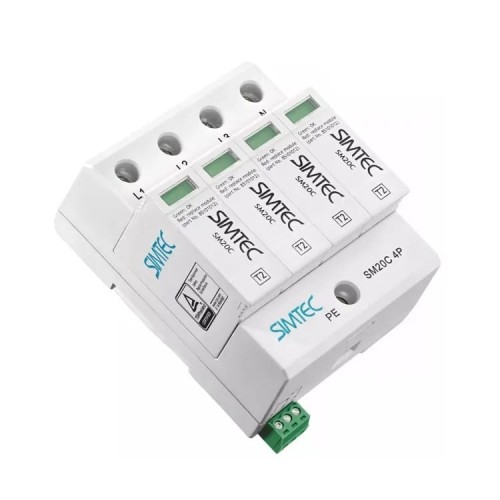

SIMET SIMTEC SM20C 4P – Surge Arrester Type 2 (C) 20kA 1.5kV
Leave feedback on the product
SIMET SIMTEC SM20C 4P surge arrester, Type 2 (C), 4-pole. Nominal discharge current 20 kA, voltage protection level < 1.2 kV, Uc 275 V, TN network. Replaceable cartridges, status indicators. Mounted on a 35 mm rail in accordance with EN 60715, IP20.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] ograniczniki-przepiec #93
- Application AC (mains)
- Surge Protector Type (SPD Class) T2 (C)
- Rated Voltage [V] 275V AC
- Number of poles 4P
- Lightning Current (Iimp/In) [kA] 20 kA
- Brand SIMTEC
- Protection Level (Up) [kV] 1,5 kV
Description
SIMET SIMTEC SM20C 4P – Surge Arrester Type 2 (C) 20kA 1.5kV
SIMET SIMTEC SM20C 4P is a four-pole Class C (Type 2) surge arrester, designed to protect electrical installations in TN networks against lightning and switching overvoltages. The device provides a nominal discharge current of 20 kA and a voltage protection level below 1.2 kV, effectively protecting end equipment — from computer and telecommunications equipment to building automation devices. The modular construction with replaceable cartridges allows quick replacement of a damaged element without dismantling the entire device, which shortens service time and reduces installation maintenance costs. The arrester does not require the use of coordination inductors, which simplifies the switchboard layout. Installation is carried out on a 35 mm rail in accordance with EN 60715 — standard clips allow installation within seconds. Green inspection windows on each module allow instant visual verification of the arrester's condition without the use of measuring instruments.
Key features and application
- Protection against lightning and switching overvoltages in TN networks
- Modular construction with replaceable cartridges — quick servicing without replacing the entire device
- No need for coordination inductors — simplified installation
- Visual status indication for each module via green indicators
- Mounting on a 35 mm DIN rail in accordance with EN 60715 — standard installation in the switchboard
Technical specification
| Electrical parameters | |
|---|---|
| Arrester class | C (Type 2) |
| Number of poles | 4 |
| Rated operating voltage | 230 V |
| Maximum continuous operating voltage (Uc) | 275 V |
| Nominal discharge current (In) | 20 kA |
| Impulse current | 20 kA |
| Voltage protection level (Up) | < 1.2 kV |
| Response time | < 25 ns |
| Operating frequency | 40–63 Hz |
| Network | |
| Network type | TN |
| Mounting and enclosure | |
| Mounting method | 35 mm rail in accordance with EN 60715 |
| IP protection rating | IP20 |
| Colour | grey |
| Operating conditions | |
| Permissible humidity | < 95% |
| Commercial data | |
| Manufacturer | SIMET |
| Model | SM20C 4P |
| Weight | 0.2 kg |
| EAN | 5907813217296 |
