Comunello RS-100F – screw-on gate hinge set for rising slopes
0
Description
Comunello RS-100F – screw-on gate hinge set for rising slopes

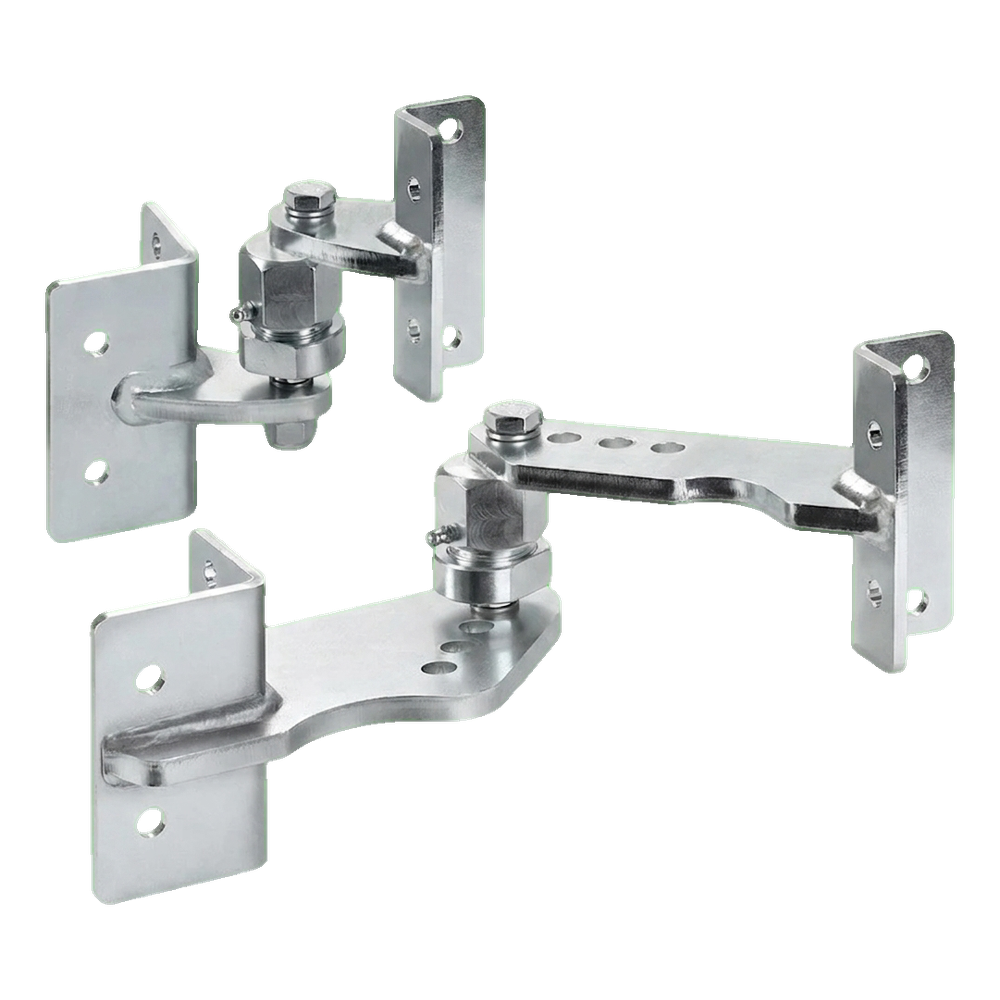

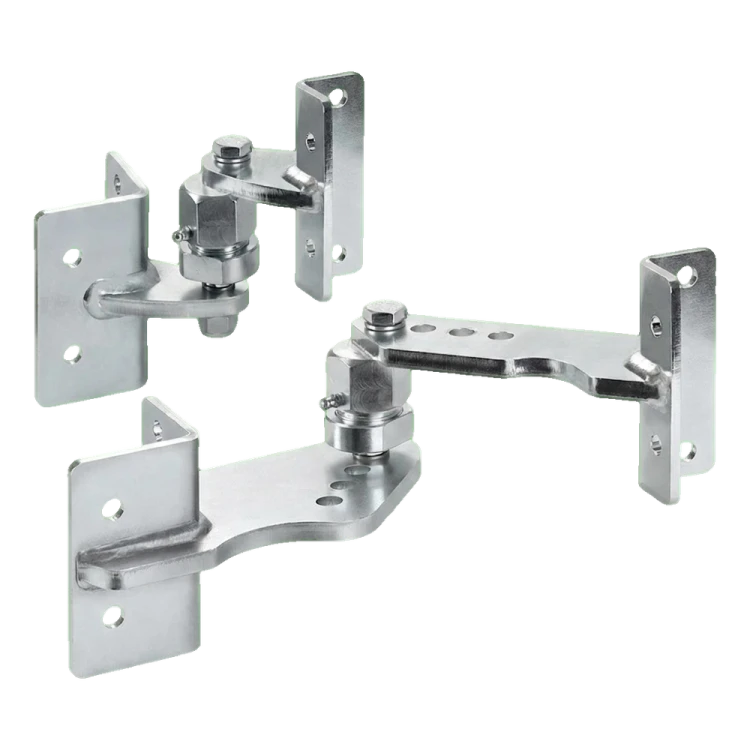

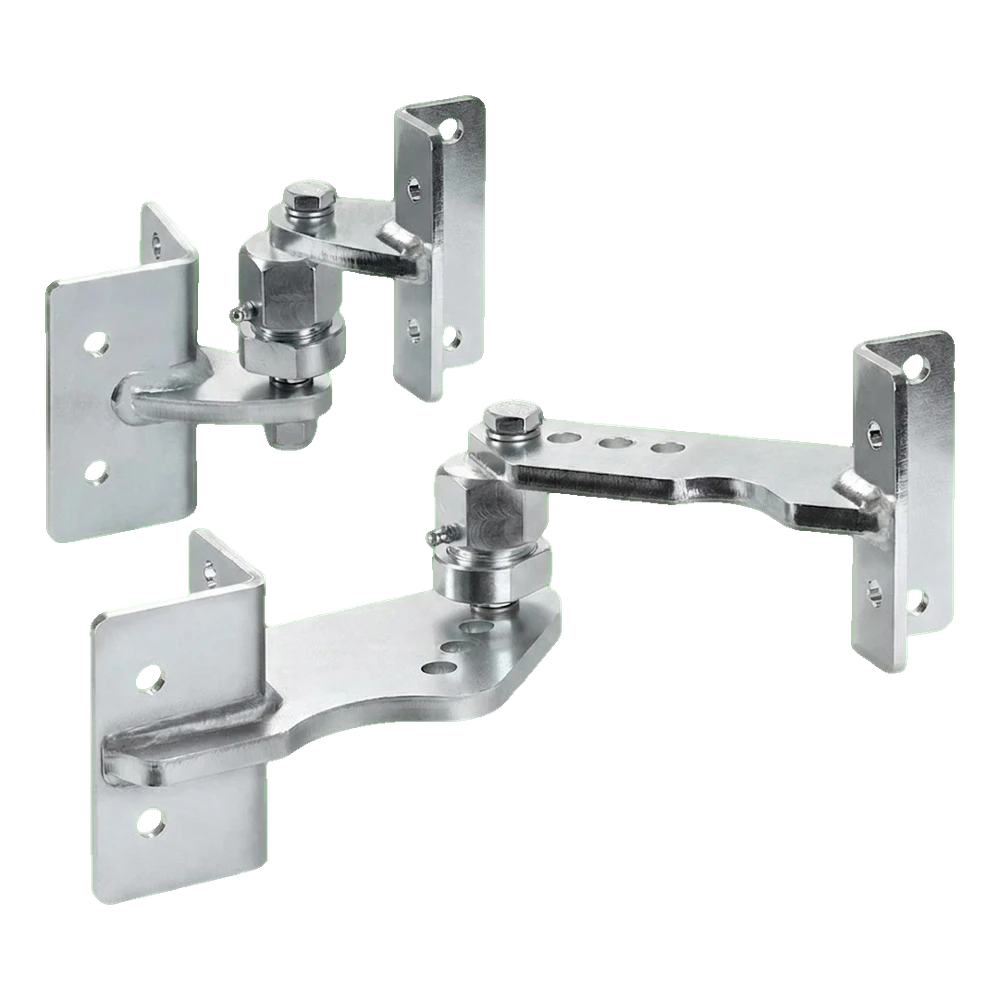

Comunello RS-100F is a complete set of screw-on hinges, specially designed for mounting swing gates on rising slopes. Thanks to the eccentric screw connecting the leaf bracket with the joint, the installer gains the ability for precise leaf position adjustment — setting it in a horizontal position and perfect alignment with the post, even on uneven terrain.
The set is intended for professional installation of gates weighing up to 150 kg and maximum leaf length up to 3 metres, with terrain rise angle up to 10° (~20%). Thanks to joints equipped with grease nipples, maintenance is quick and convenient — without the need to dismantle the hinges.
Main features and technical parameters
- Manufacturer: Comunello
- Designation: RS-100F
- Application: swing gates on rising slopes
- Maximum leaf weight: 150 kg
- Maximum leaf length: 3 m
- Maximum rise angle: 10° (~20%)
- Material: electrolytically galvanised steel
- Set weight: 4.6 kg
- Set length (L): 220 mm
- Mounting: screw-on — on steel or concrete posts
- Leaf inclination adjustment: yes — eccentric screw
- Grease nipples: yes — lubrication without dismantling
- Number of mounting holes on each bracket: 4
- EAN: 8028390517467

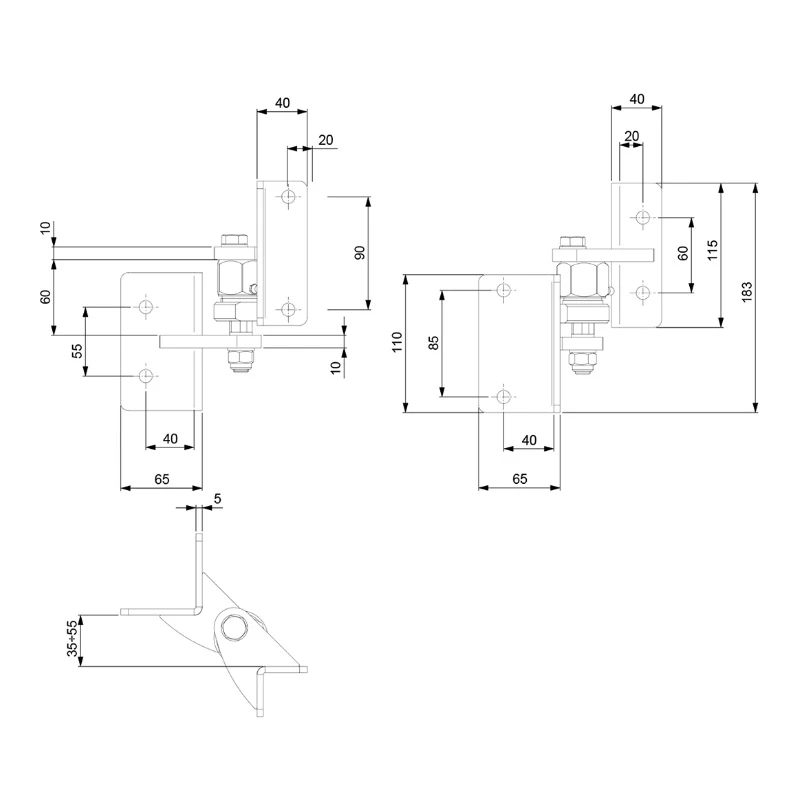

Dimensions — smaller hinge (upper)
- Total height: 183 mm
- Width of upper plate (post plate): 40 mm
- Hole spacing of upper plate: 90 mm (left view) / 60 mm (right view)
- Height of upper plate: 115 mm
- Width of lower plate (leaf plate): 65 mm
- Vertical hole spacing of lower plate: 85 mm (right view) / 55 mm (left view)
- Horizontal hole spacing of lower plate: 40 mm
- Height of lower plate: 110 mm
- Distance between hinge arms: 60 mm
- Arm thickness: 10 mm
- Mounting plate thickness: 5 mm
- Adjustable mounting plane spacing: 35–55 mm

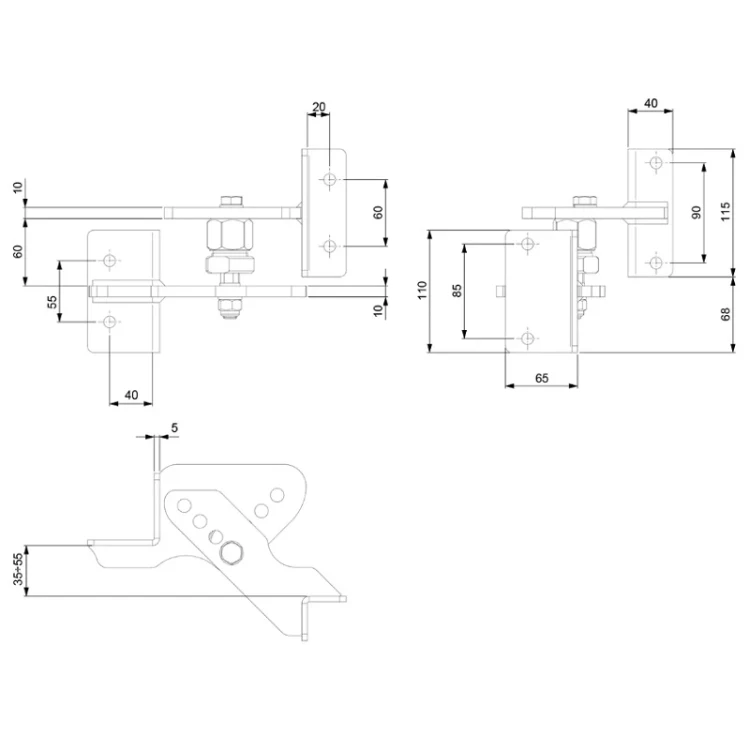

Dimensions — larger hinge (lower)
- Width of upper plate (post plate): 40 mm
- Hole spacing of upper plate: 90 mm
- Height of upper plate: 115 mm
- Width of lower plate (leaf plate): 65 mm
- Vertical hole spacing of lower plate: 85 mm
- Horizontal hole spacing of lower plate: 40 mm
- Height of lower plate: 110 mm
- Vertical offset between lower edges of plates: 68 mm
- Distance between hinge arms: 60 mm
- Arm thickness: 10 mm
- Mounting plate thickness: 5 mm
- Adjustable mounting plane spacing: 35–55 mm
Application and benefits for the installer
The Comunello RS-100F hinge set is dedicated to mounting swing gates on sloping terrain — driveways, entrances to properties situated on slopes, and everywhere where the ground level at the post differs from the level at the end of the leaf. The eccentric mechanism allows for precise adjustment of the leaf inclination angle directly during installation, which significantly speeds up installation work and eliminates the need for spacer washers.
The hinges are suitable for mounting on both steel and concrete posts, making them a universal solution for different types of fencing. Electrolytic galvanising ensures corrosion resistance, and grease nipples enable regular maintenance without dismantling — which translates into long service life and trouble-free gate operation.
Technical data
| Material | Steel |
