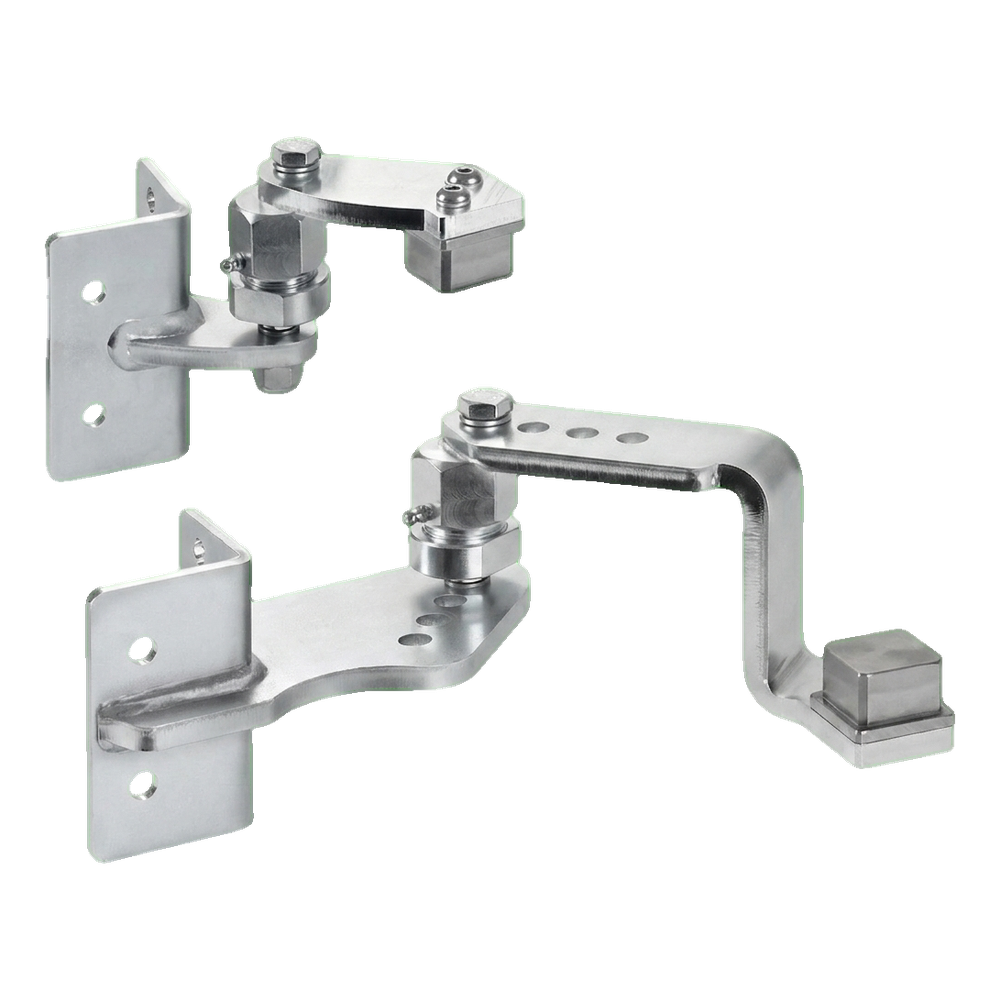

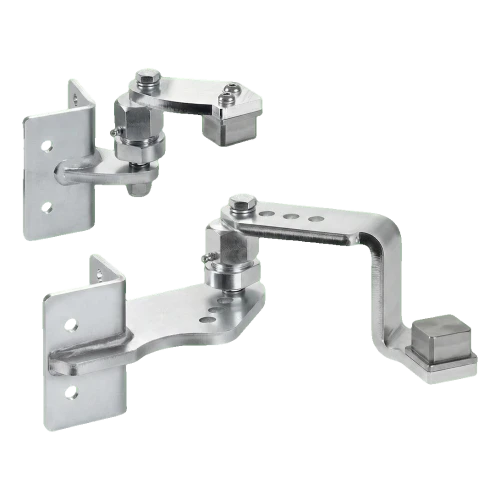

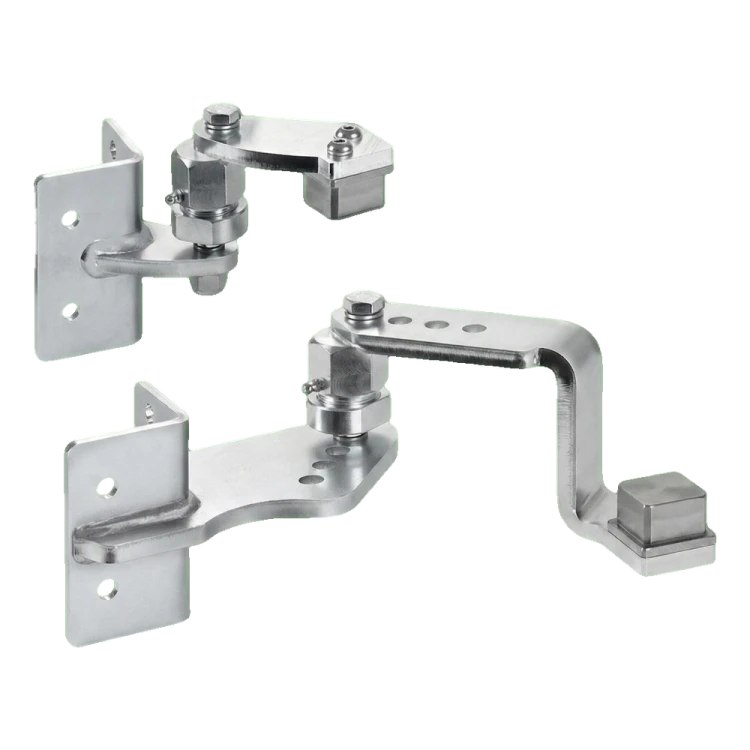

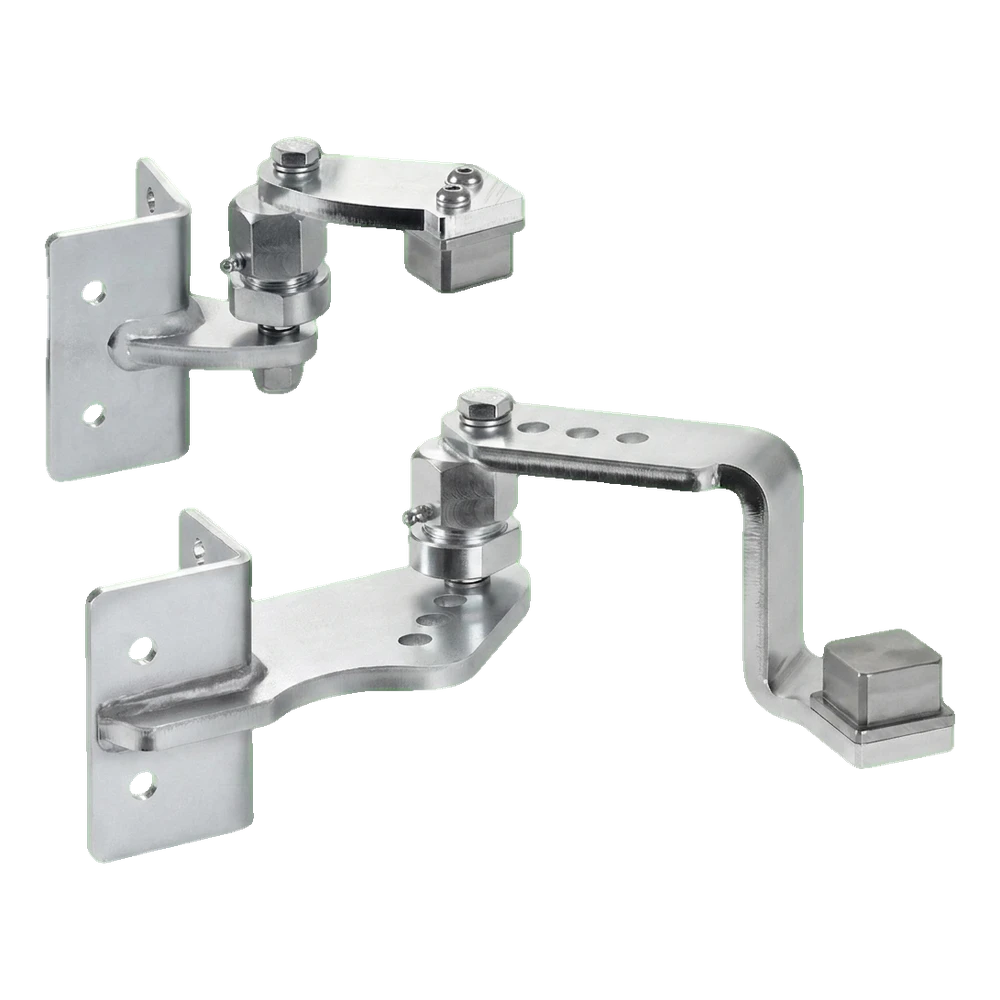

Comunello gate hinge set for welding to 50×50 mm post – right-hand, for sloping grounds
Leave feedback on the product
Comunello gate hinge set for welding to 50×50 mm post, right-hand. Electrolytically galvanised steel. For swing gates up to 3 m and 120 kg. Inclination adjustment up to 10°. Mounting plate 65×110×5 mm, weight 5.8 kg.
Product code: 001-525
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Comunello gate hinge set for welding to 50×50 mm post – right-hand, for sloping grounds
Comunello gate hinge set for welding to 50×50 mm post in right-hand version — specially designed for mounting swing gates on elevated terrain. Thanks to the eccentric screw connecting the leaf support with the hinge joint, you gain precise adjustment of the leaf position, allowing you to set it perfectly level and align it with the post even on uneven ground.
Key advantages for the installer
- Application: swing gates on sloping grounds (inclination up to 10°, approx. 20%)
- Maximum leaf length: 3 m
- Maximum leaf weight: 120 kg
- Adjustable leaf inclination — compensation for ground unevenness
- Hinges equipped with grease nipples — lubrication without dismantling hinges
- Brackets with 4 mounting holes — secure attachment to steel or concrete posts
- Material: electrolytically galvanised steel — anti-corrosion protection
- Version: right-hand

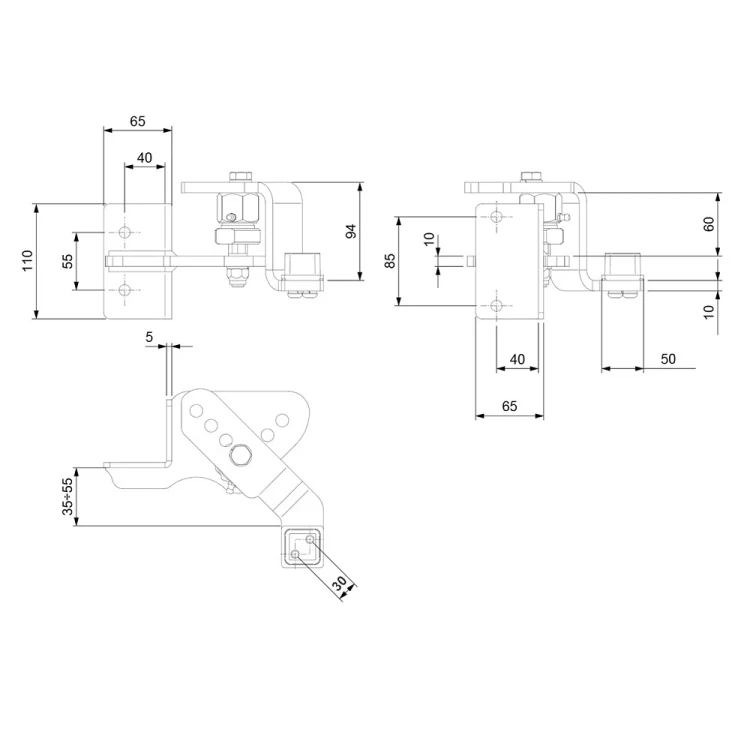

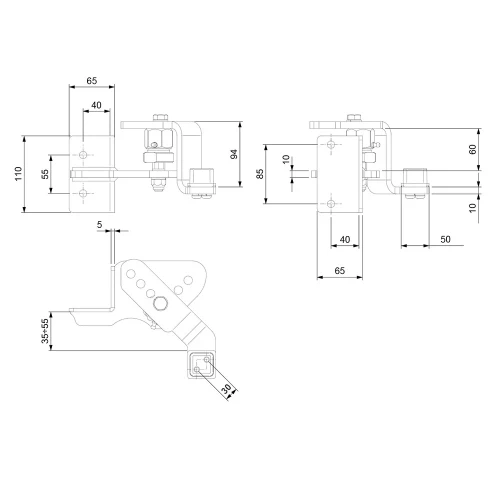

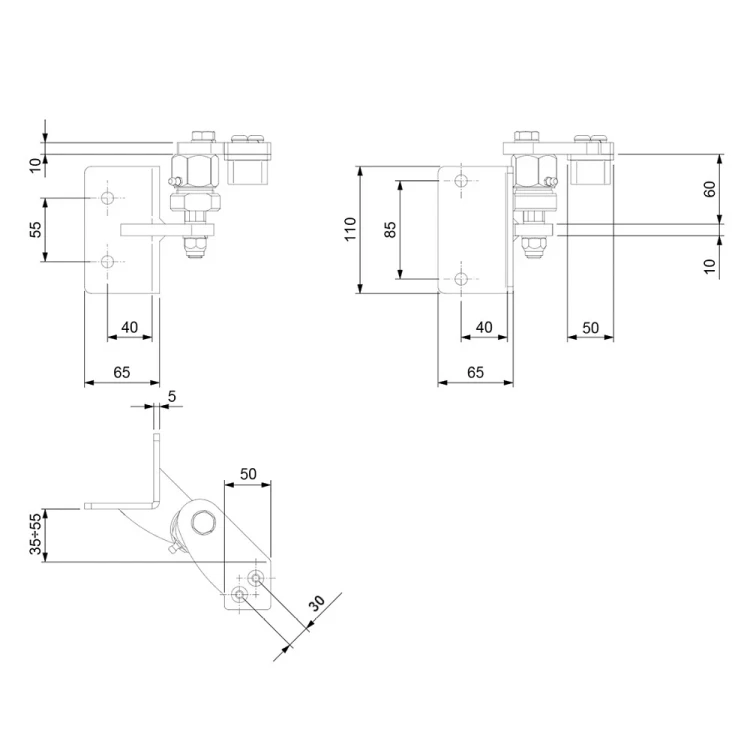

Dimensions and technical parameters
- Mounting plate (external dimensions): 65 × 110 mm
- Mounting plate thickness: 5 mm
- Mounting hole spacing (front): 40 × 55 mm
- Mounting hole spacing (side): 40 × 85 mm
- Hinge mechanism height: 94 mm
- Mounting block dimension for post: 50 × 30 mm
- Depth adjustment range (distance from plate face to rotation axis): 35–55 mm
- Distance between arms: 60 mm
- Total length (L): 220 mm
- Set weight: 5.8 kg
- EAN: 8028390517498
Installation and application
The hinges are designed for welding to steel posts 50×50 mm and for mounting on concrete posts using mounting holes. The hinge mechanism with eccentric screw allows for smooth adjustment of the gate leaf angle and level after installation — there is no need for perfect levelling of posts during the concreting stage. Grease nipples built into the hinges ensure easy maintenance — periodic lubrication is sufficient without the need to dismantle the entire hinge.
The set works well wherever the driveway or entrance is inclined — ground slope up to 10° (~20%) is compensated by the adjustable mechanism, and the gate leaf remains in a horizontal position regardless of ground inclination.
