Adjustable Gate Hinge M18 with Shield 140×50 mm – Galvanised
Description

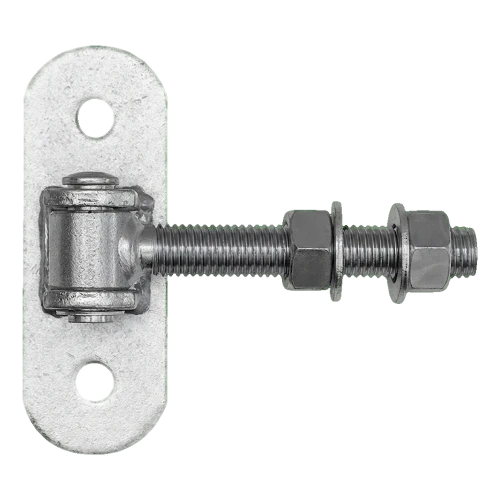

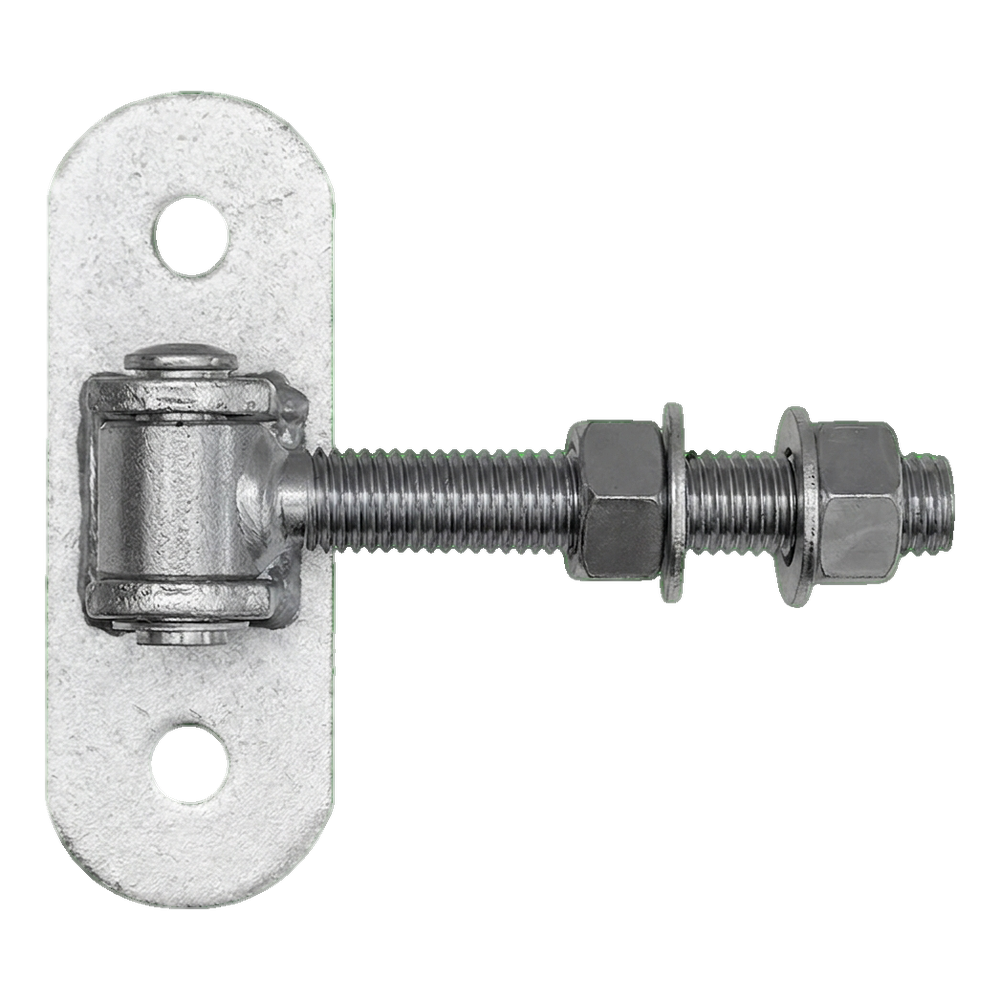

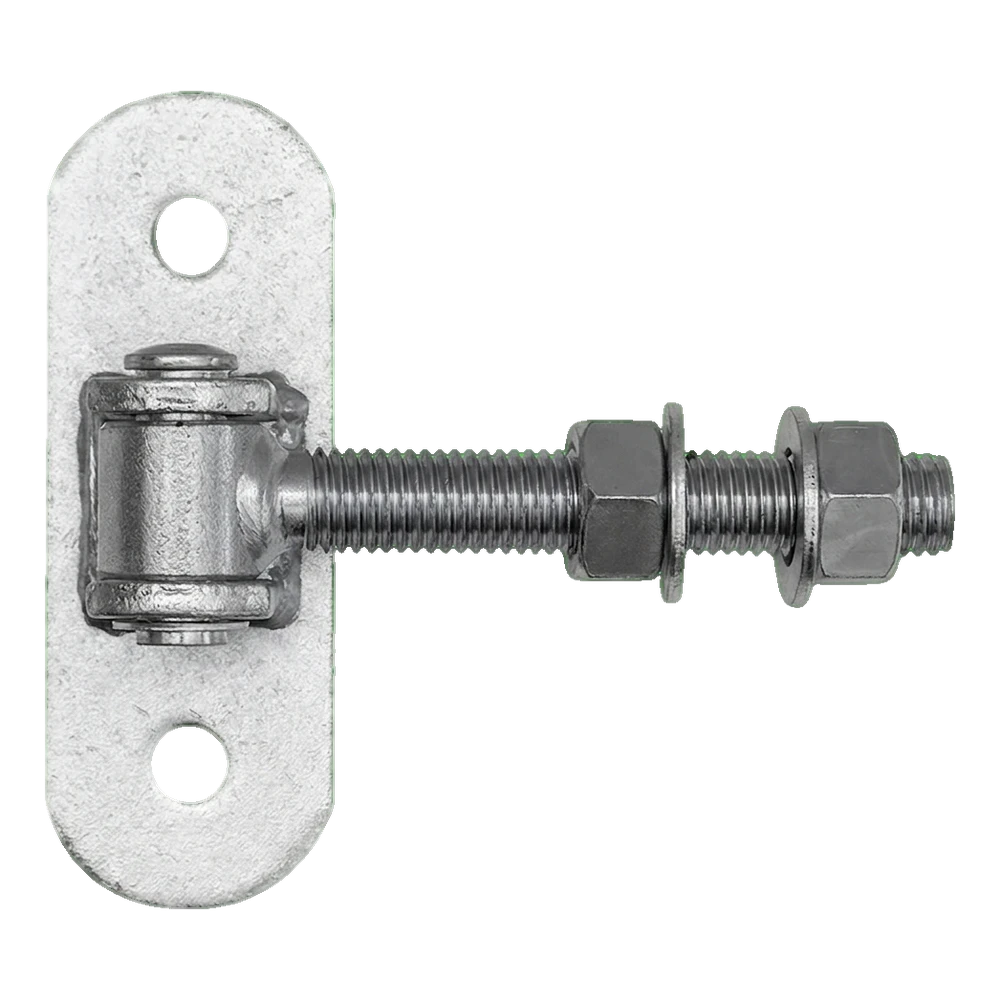

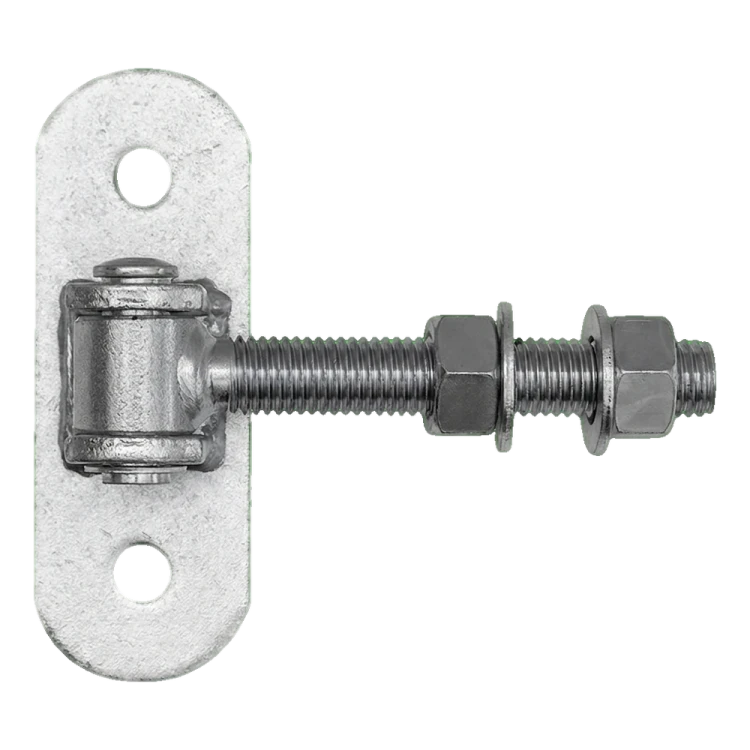

Adjustable Gate Hinge M18 with Shield 140×50 mm – Galvanised
Adjustable M18 hinge with 140×50 mm shield is a robust hardware component designed for mounting gate leaves and garden gates. Thanks to the M18 threaded pin with double nut, you can adjust the leaf position at any time — both during initial installation and when dimensions change due to temperature fluctuations. The galvanised coating guarantees years of corrosion resistance in outdoor conditions, eliminating the need for additional surface protection.
The shield with two mounting holes enables quick and secure attachment to posts or walls, whilst the solid steel construction can handle significant loads — a pair of hinges supports up to 80 kg on a leaf length of 2 m. This is a proven solution that speeds up installation projects and minimises the risk of warranty claims.
Installer Benefits
- Post-installation adjustment — tightening or loosening the nut allows leaf position correction without hinge removal
- Galvanising — high anti-corrosion protection for years of outdoor operation
- Quick installation — shield with two ø13 mm holes allows rapid attachment
- High load capacity — pair of hinges supports up to 80 kg on a 2 m leaf
- Mechanical strength — steel construction resistant to impacts and deformation

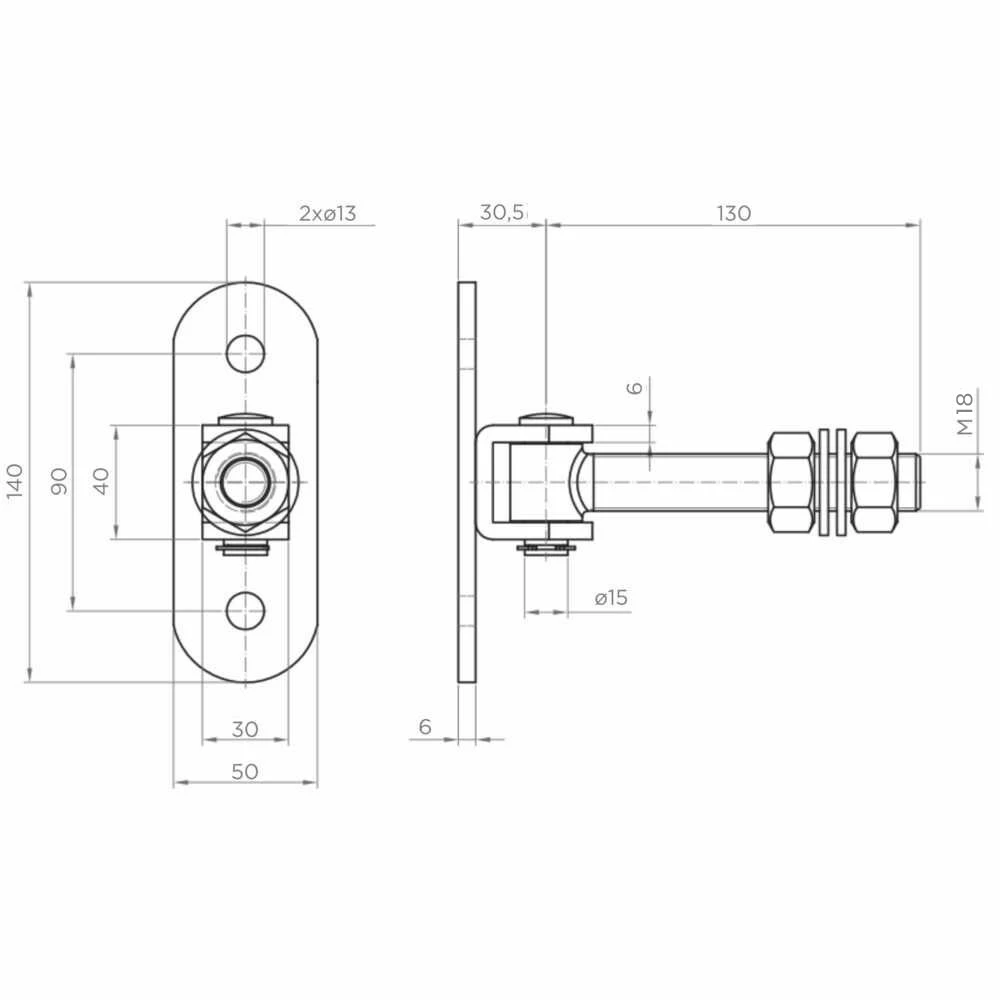

Dimensions and Technical Parameters
- Material: galvanised steel
- Pin thread: M18
- Overall length: 200 mm
- Threaded pin length (from pin axis): 130 mm
- Shield dimensions: 140 × 50 mm
- Shield thickness: 6 mm
- Mounting hole spacing: 90 mm
- Mounting hole diameter: 2 × ø13 mm
- Pin diameter: ø15 mm
- Distance from shield to pin axis: 30.5 mm
- Bracket base width: 30 mm
- Permissible load for pair of hinges (2 m leaf): 80 kg
- Weight: 0.88 kg
- Anti-corrosion protection: galvanising
Application
The hinge is primarily intended for gate leaves and garden gates in residential fencing systems. It performs well wherever post-installation leaf adjustment is required — e.g. with masonry posts, steel structures or timber frames. Thanks to the threaded adjustment mechanism, you can compensate for seasonal dimensional changes resulting from extreme temperatures, as well as correct leaf alignment after extended operation.
Technical data
| Thread type | M18 |
| Mounting Method | With Plate |
| Material | Steel |
