Adjustable bent hinge M16 for gates and wickets – 180° / 125 mm, galvanised
0
Description

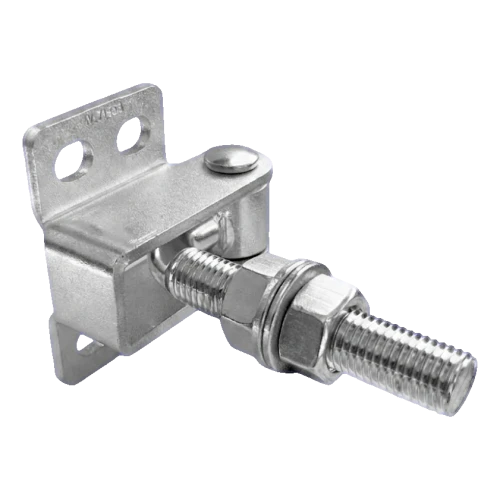

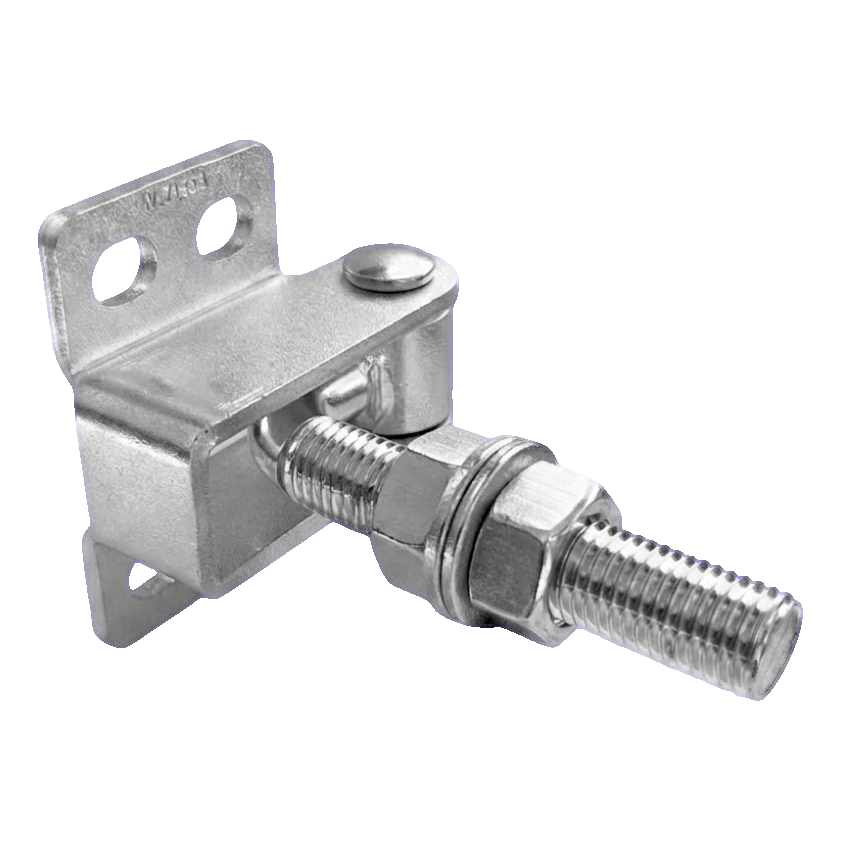

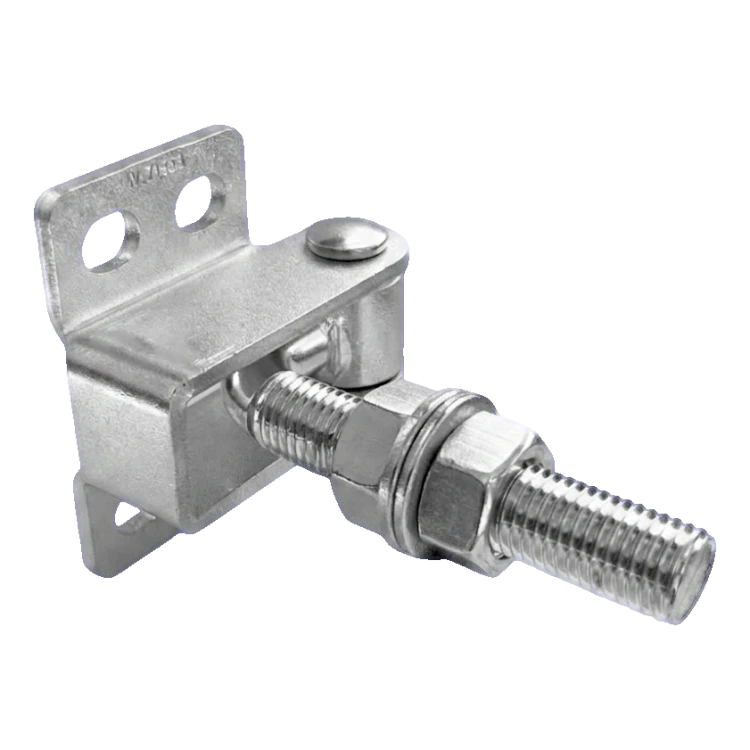

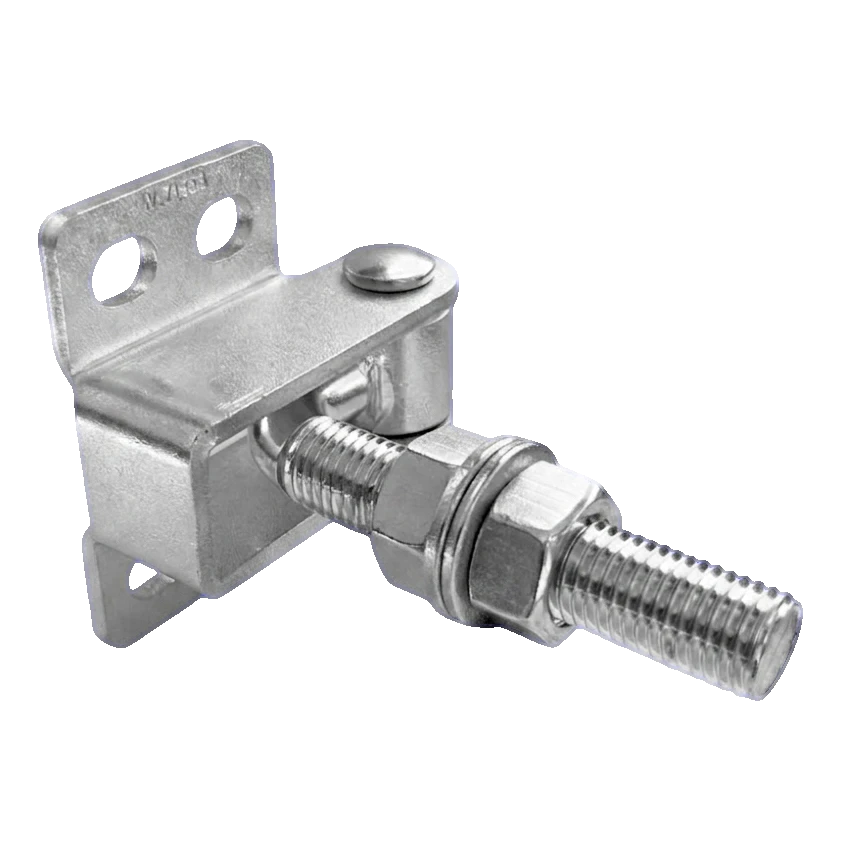

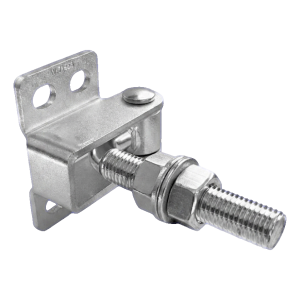

Adjustable bent hinge M16 for gates and wickets – 180° / 125 mm, galvanised
Adjustable bent hinge M16 is a heavy-duty, fully adjustable hinge designed for mounting gates, wickets and fence doors. Thanks to the bent arm construction, it enables the leaf to open to a full 180°, ensuring free passage and access even in narrow driveways. The ability to adjust the distance between the post and the leaf allows precise gate positioning after installation — without the need to interrupt work and re-drill.
M16 thread guarantees a strong and stable connection, suitable for heavy gate leaves. The mounting plate equipped with 4 fixing holes (slots) enables solid attachment to the fence post, and their elongated shape facilitates position correction during installation.
Durability and corrosion protection
The hinge is made from S235JR steel and coated with galvanic zinc coating in white colour. Galvanic galvanising effectively protects against corrosion, moisture and changing weather conditions, ensuring years of durability even when exposed to rain and snow. At the same time, it gives the component an aesthetic, uniform appearance that complements modern fencing well.
Technical specification
- Type: bent, 180°
- Thread: M16
- Arm length: 125 mm
- Arm axis offset (bend): 40 mm
- Material: S235JR steel
- Coating: galvanic zinc (white)
- Weight: 0.57 kg
- EAN: 5903313205597
Mounting plate dimensions
- Plate height: 82 mm
- Plate width: 50 mm
- Plate depth (profile): 78 mm
- Mounting hole spacing: 57.5 × 23.5 mm
- Mounting hole dimension (slot): 14 × 10.5 mm
- Pin diameter: Ø12 mm
- Pin bracket plate thickness: 4 mm
- Pin axis distance from base: 32.5 mm
- Number of fixing holes: 4
Mounting diagram

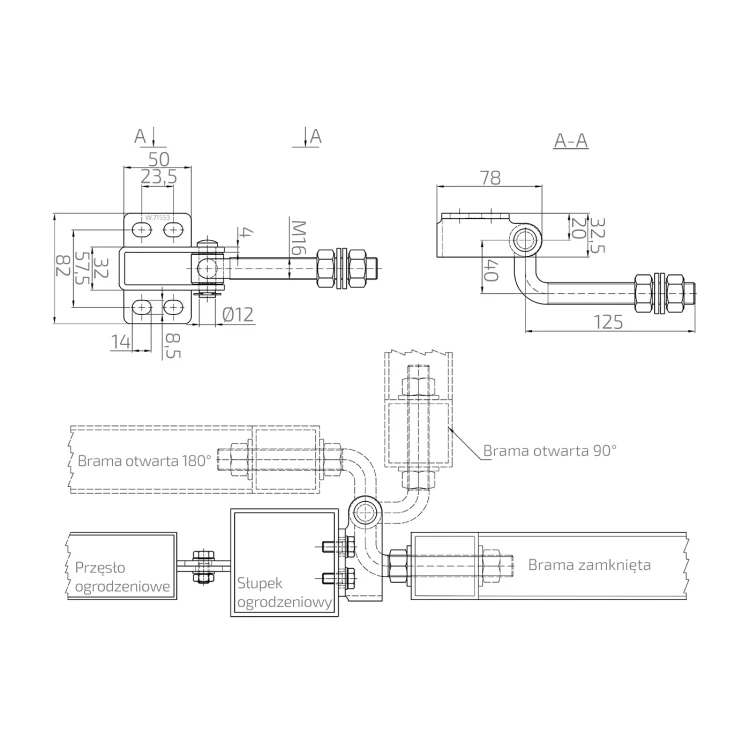

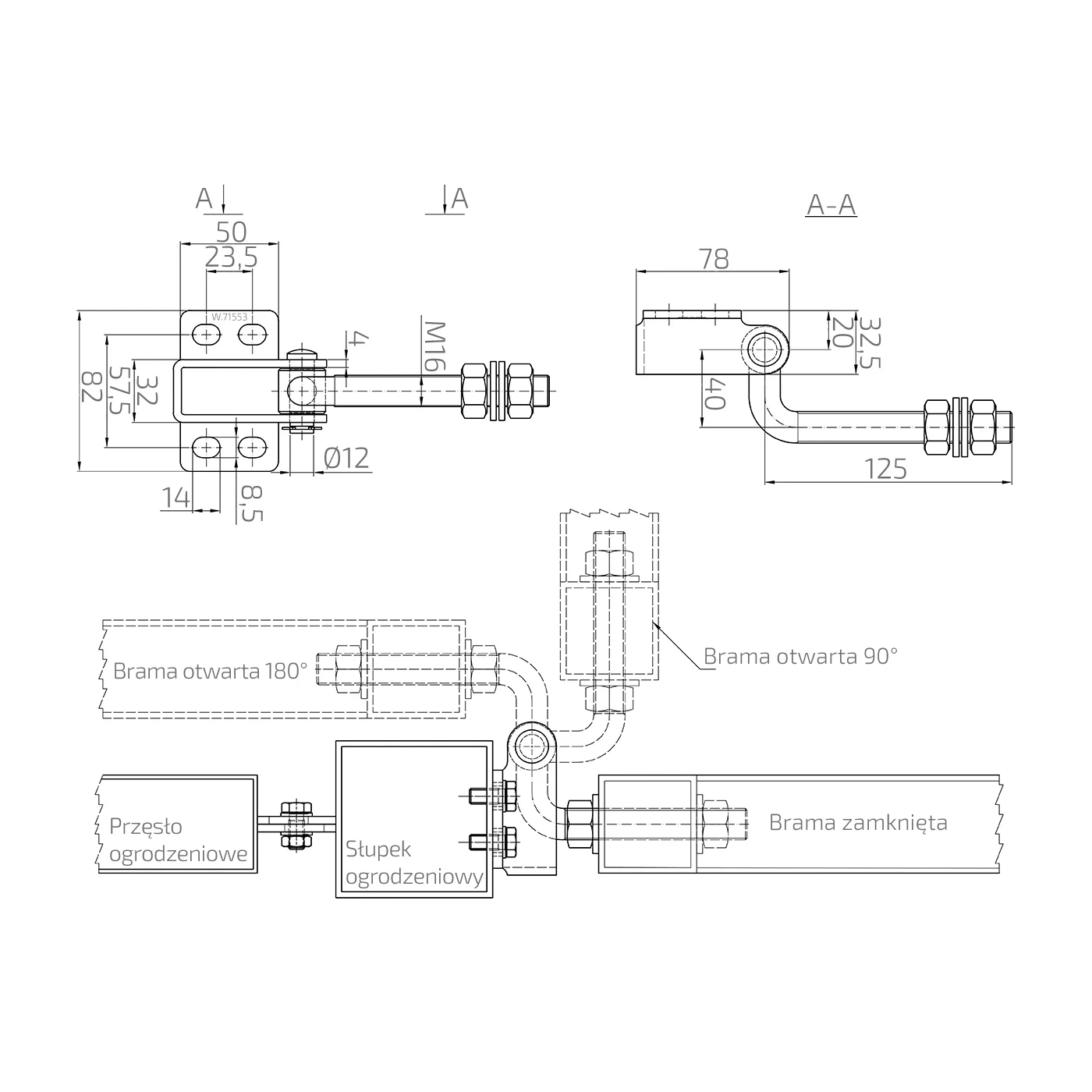

The technical drawing shows how to mount the hinge on a fence post along with three working positions: gate closed, gate open 90° and gate open 180°. The bent arm construction allows the leaf to rotate along the fence span without colliding with the post — an ideal solution for limited manoeuvring space.
Technical data
| Thread type | M16 |
| Material | Steel |
