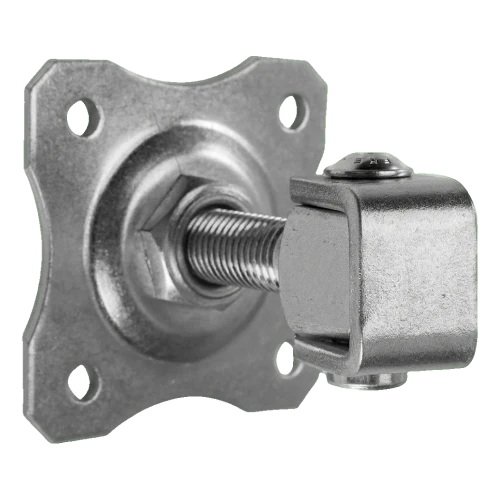

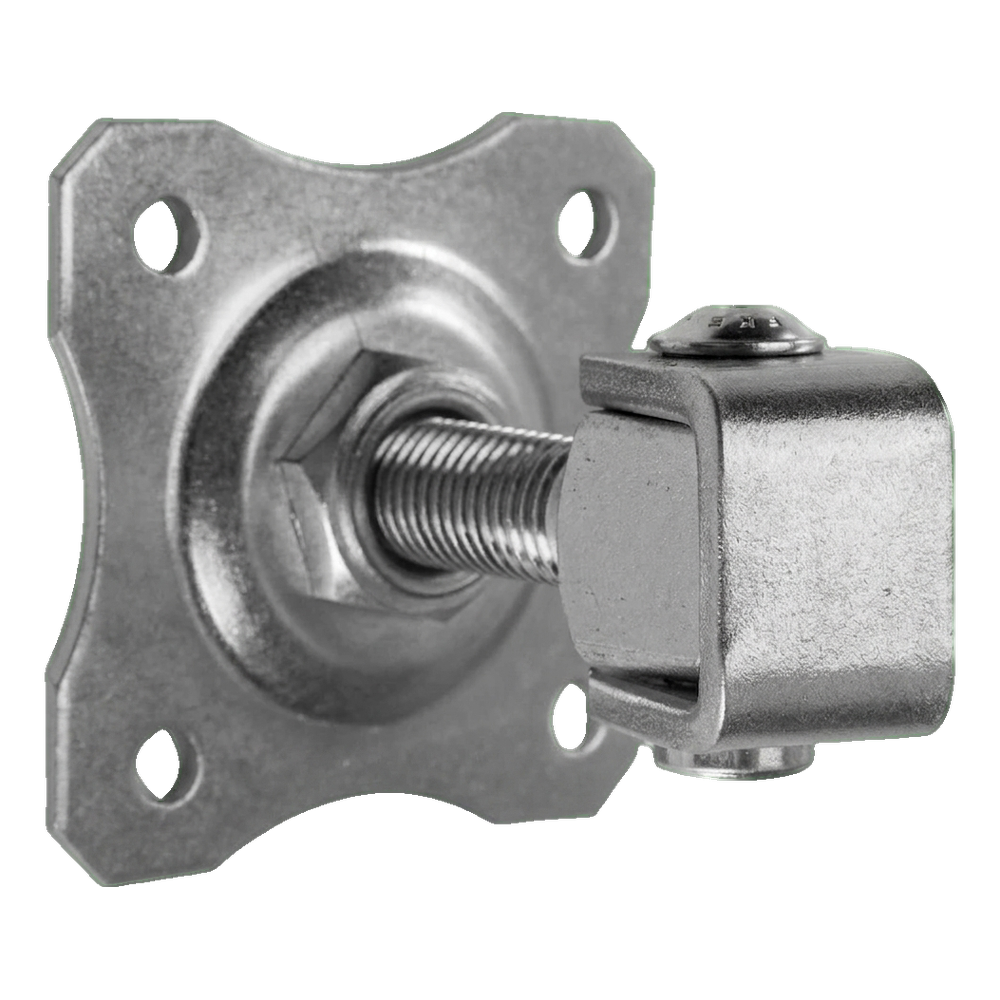

Adjustable gate hinge with decorative plate M16 80×80 mm galvanised steel
Description
Adjustable gate hinge with decorative plate M16 80×80 mm galvanised steel
Adjustable hinge with decorative plate M16 is a robust mounting element designed for swing gates and wicket gates. Steel construction with anti-corrosion protection in the form of galvanising makes the hinge perform excellently outdoors – even in harsh weather conditions. Thanks to the adjustable M16 thread, you can precisely adjust the gate wing position at any time after installation, e.g. after sagging of the structure or due to extreme temperatures.
Decorative plate measuring 80×80 mm with four mounting holes ensures aesthetic appearance and solid attachment to the post. Plate thickness of 3 mm guarantees rigidity and long-term connection reliability. Permissible load for a pair of hinges on a wing of 2 m length is 65 kg.
Advantages for the installer
- Post-installation adjustment – the nut on the M16 thread allows tightening or loosening the hinge at any time, compensating for wing sagging and thermal deformation of metal
- Galvanising – years of anti-corrosion protection, full suitability for outdoor applications
- High mechanical resistance – steel ensures resistance to wear and damage
- Aesthetic decorative plate – four mounting holes enable secure attachment, whilst the decorative form enhances the visual qualities of the fencing
Dimensions and technical parameters
- Thread: M16
- Total length (projection): 90 mm
- Bolt length: 45 mm
- Hinge ear width: 36 mm
- Plate dimension: 80×80 mm
- Plate thickness: 3 mm
- Material: steel
- Anti-corrosion protection: galvanised
- Weight: 0.44 kg
- Permissible load for pair (2 m wing): 65 kg
- EAN: 5901289675932
Technical data
| Thread type | M16 |
| Mounting Method | With Plate |
| Material | Steel |
