Adjustable gate hinge M12 galvanised – plate 130×30 mm
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.52 kg
Rating:
0
0
Vendor:
-
Product code:
001-417
Description

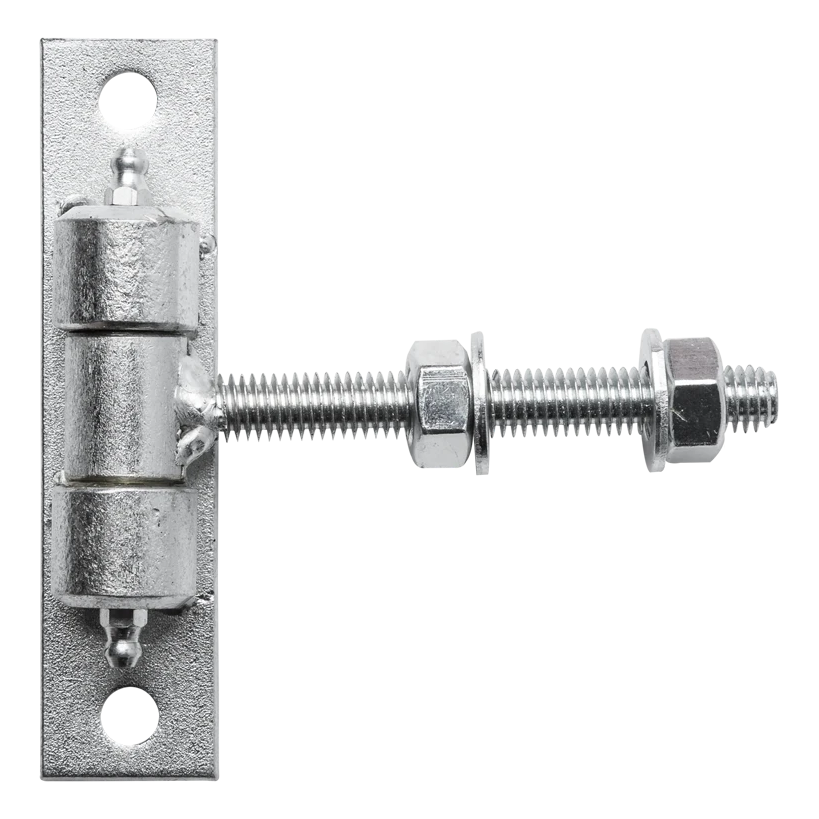

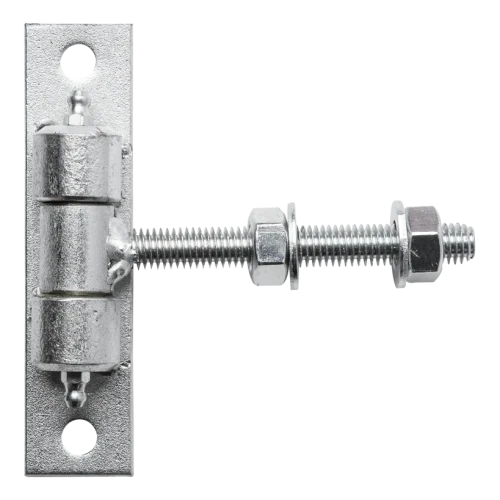

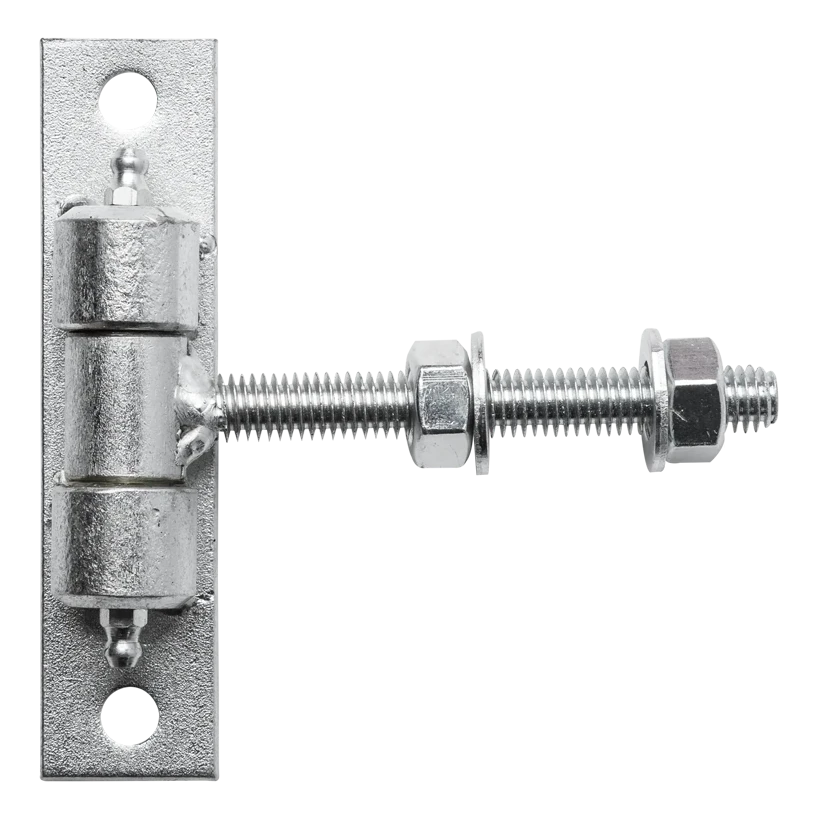

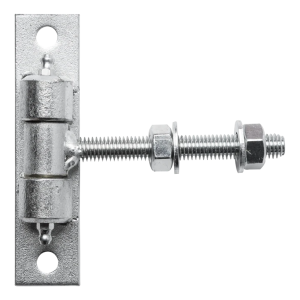

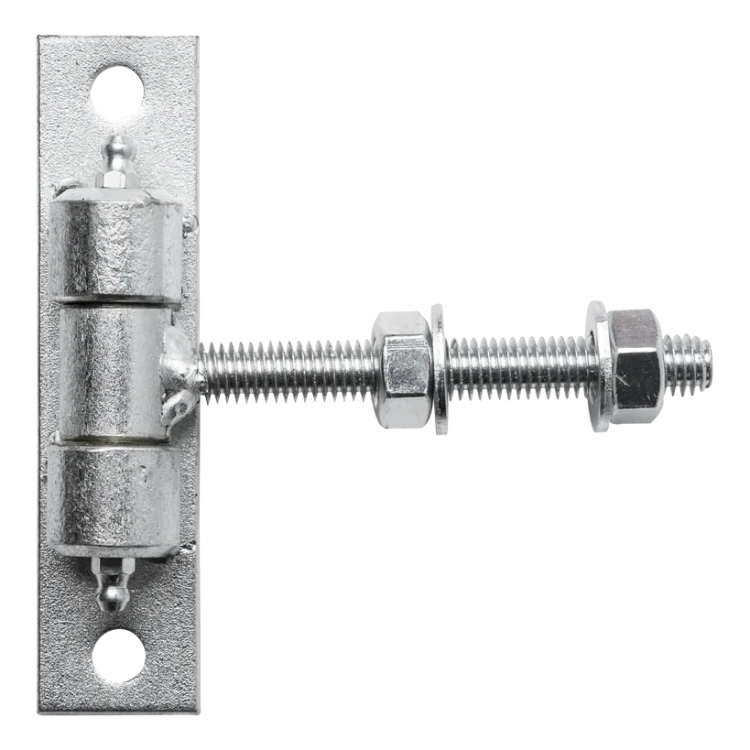

Adjustable gate hinge M12 galvanised – plate 130×30 mm
Adjustable hinge with M12 thread designed for mounting swing gates and wicket gates. Solid, galvanised steel construction provides high corrosion resistance and long-term operation in outdoor conditions. Thanks to the adjustment nut on the threaded pin, you can correct the leaf position at any time — both immediately after installation and later, e.g. after sagging of the structure or thermal deformation in extreme temperatures.
Rectangular plate with two mounting holes (spacing 110 mm) enables quick and secure fixing to the post. Adjustment is intuitive, without the need for dismantling — simply loosen or tighten the nut on the M12 pin.
Permissible load of a pair of hinges on a leaf 2 m long is 40 kg.
Advantages
- Galvanised surface — effective anti-corrosion protection for many years of outdoor use
- Adjustment after installation — quick correction of gate or wicket gate leaf position using the nut
- Thermal deformation compensation — possibility to loosen or tighten the hinge with temperature changes
- Simple and quick installation — two mounting holes in the plate for fixing
- High quality workmanship — steel construction resistant to mechanical damage and heavy loads

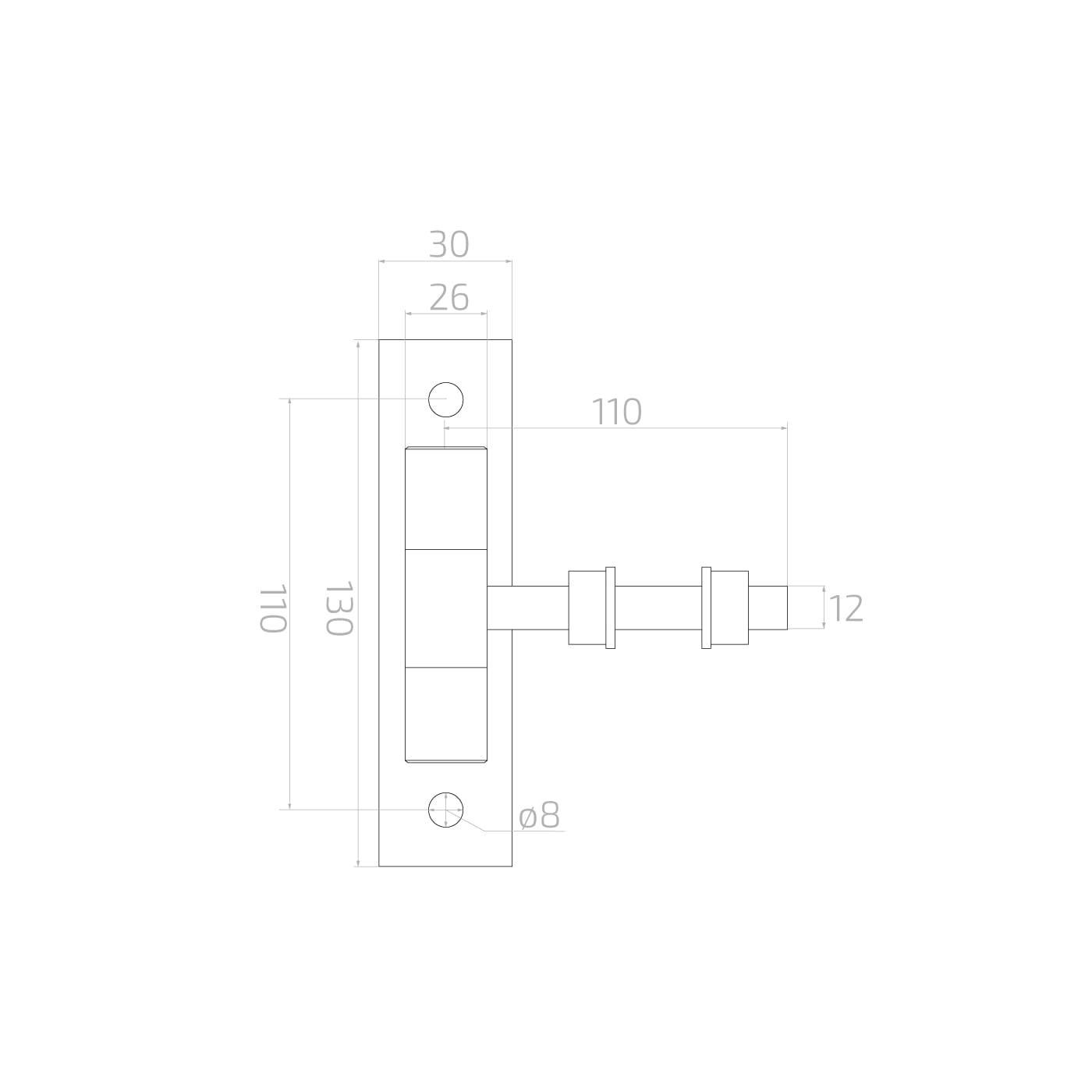

Dimensions and technical data
- Material: galvanised steel
- Adjustment pin thread: M12
- Adjustment screw length: 110 mm
- Plate dimensions (H × W): 130 × 30 mm
- Mounting hole spacing: 110 mm
- Mounting hole diameter: ø8 mm
- Hinge sleeve diameter: 26 mm
- Total product length (L): 150 mm
- Weight: 0.52 kg
- Anti-corrosion protection: galvanising
- Application: swing gates, wicket gates — outdoor use
Loading...
Technical data
| Thread type | M12 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
