Zamel Energy Monitor WiFi 3F+N Bidirectional Meter for PV
Leave feedback on the product
Three-phase 3F+N energy monitor with bidirectional meter for photovoltaic installations. Measurement of active and reactive power, class A accuracy, DIN rail mounting. Wi-Fi 2.4GHz communication, 100A current transformers, 230V AC power supply.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] Licznik energii #48
- Rated current [A] 100A
- Number of Phases 3-fazowy
- MID Certificate No
- Communication Wi-Fi
- Brand ZAMEL
Description
Zamel WiFi Energy Monitor 3P+N Bidirectional Meter for PV

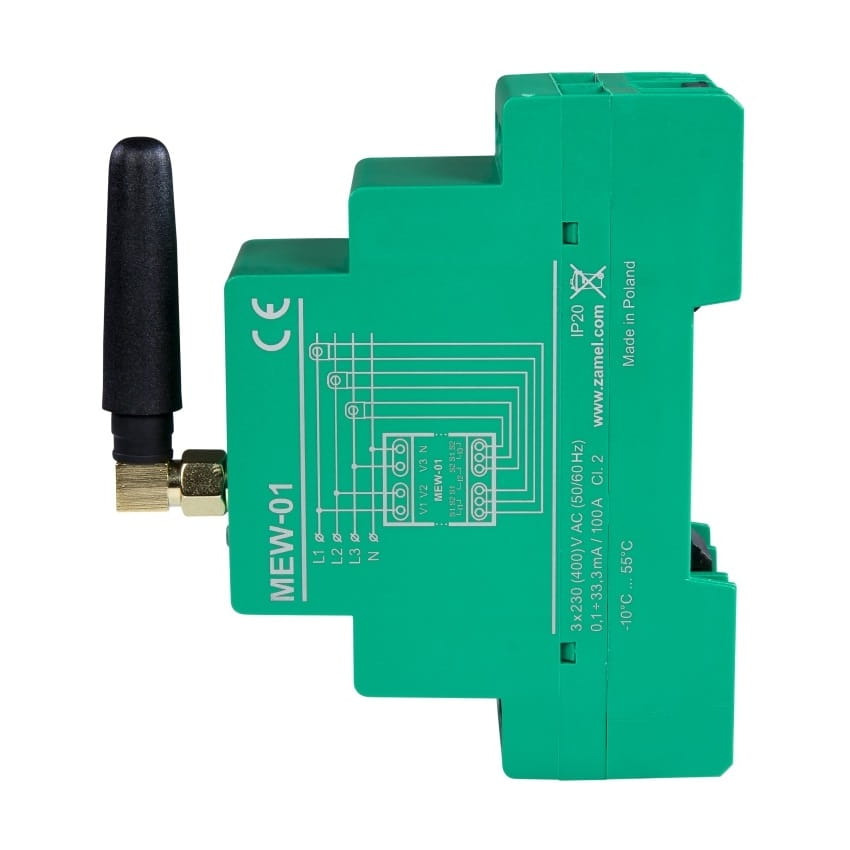

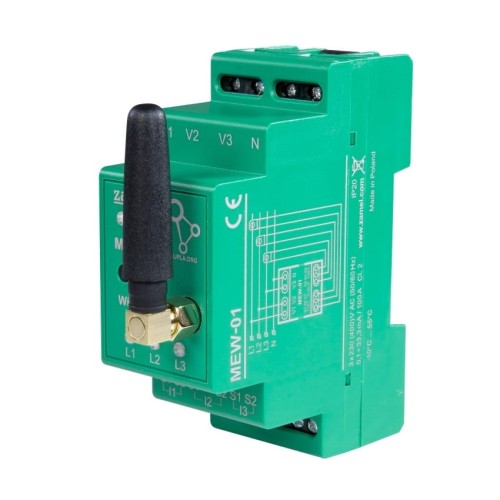

WiFi electrical energy monitor 3P+N bidirectional meter for photovoltaic PV TYPE: MEW-01 SUPLA by ZAMEL enables wireless energy consumption monitoring via Wi-Fi network. It is a three-phase device installed in the electrical distribution board on a TH35 (DIN) rail, requiring no special electrical or telecommunication installations.
The monitor occupies two modules and is equipped with 100A current transformers and an antenna (included in the set). In cases where the antenna must be mounted outside the distribution cabinet, especially with metal cabinets, an external antenna with SMA connector is required. MEW-01 also allows energy consumption measurement in single-phase systems.
Key features
- Simple installation: Unlike traditional, complex building automation systems that are closed and expensive, often requiring early installation during construction, SUPLA devices are characterised by ease of installation and configuration. They require no additional cabling, making them exceptionally practical.
- SUPLA community: SUPLA products enjoy the support of an active user community. You can exchange comments, seek inspiration and support on community forums. Join thousands of satisfied users.
- Set contents: The set includes 3 current transformers with 100 A capacity.
- Wi-Fi: SUPLA devices communicate via Wi-Fi network, eliminating the need to invest in expensive controllers. You can connect to devices from anywhere in the world without installing additional communication cables.
- Energy consumption measurement: SUPLA devices enable measurement of electrical energy consumption as well as current, voltage and power on three phases, and also on a single phase.
- Home control: With SUPLA devices, you can check at any time via the app whether you have switched off the lights, cooker or kettle, providing peace of mind and safety.
- Data access: Ability to transmit and access measurement data in the cloud. Download energy consumption reports to Excel files, track consumption data and network parameters in the Supla app, also in graph form.
Specification
| Parameter | Value |
|---|---|
| Manufacturer | ZAMEL |
| Automation system | SUPLA Zamel |
| Supply voltage | 230 V AC |
| Dimensions | 9.2 × 13.8 × 2.2 cm |
| Protection rating | IP20 |
| Mounting method | DIN rail |
| Model | indirect/semi-indirect measurement |
| Maximum current (Imax) | 100.000 A |
| Number of tariffs | 1000 |
| Type of energy measured | active and reactive power |
| Accuracy class | A |
| Number of phases | three-phase with neutral conductor |
| Rated voltage | 3 x 230/400 V AC |
| Voltage tolerance | – 20% to 15% |
| Rated power consumption | 1.5 W |
| Frequency | 50/60 Hz |
| Measurement accuracy | Class 2 (±2%) |
| Transformer parameters | 0.1 – 33.3 mA / 100 A |
| Operating temperature range | from -10°C to 55°C |
| Optical power indication | LED for each supply phase |
| Maximum cable cross-section | 10 (cables with cross-section up to 2.5 mm²) |
| Transmission | Wi-Fi 2.4GHz 802.11 b/g/n |
| Operating range | Wi-Fi network range |
| Voltage supply terminals | V1; V2; V3; N |
| Current transformer terminals | S1 S2 – I1; S1 S2 – I2; S1 S2 – I3 |
| Compliance with standards | [[EN 61010-1, EN 50470-1, EN 50470-3, EN 301 489-17, ETSI EN 300 328, ETSI EN 301 489-1]] |
