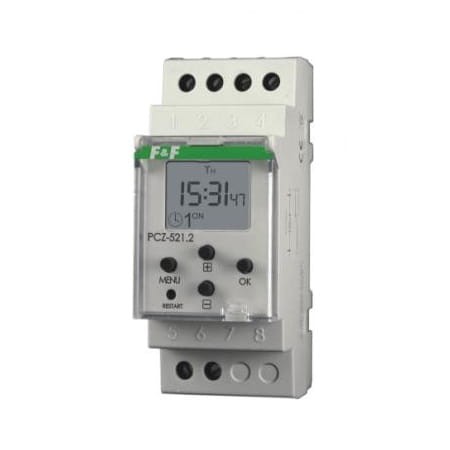

Weekly timer on/off single-channel PCZ-521 F&F FILIPOWSKI
Weekly timer on / off single-channel PCZ-521 F&F FILIPOWSKI allows automatic management of devices in home or industrial automation systems, according to a schedule set by the user.
It switches an appliance or electrical circuit on and off at set times, operating in daily, weekly, weekday (Monday-Friday) or weekend (Saturday-Sunday) cycles.
Timer functions
AUTOMATIC OPERATION - operation according to user-programmed ON-OFF commands stored in the timer memory.
MANUAL OPERATION - [ON] permanent contact switching on (pos.1-5) or [OFF] permanent contact disconnection (pos.1-6).
ON-OFF COMMAND - a command in the program specifying when the receiver is to be switched on or off.
OPERATION CYCLE - configurable, weekly schedule in which the unit carries out receiver switching according to programmed ON-OFF COMMANDS:
- single day of the week: Mo, Tu, We, Th, Fr, Sa or Su
- working days: Mo, Tu, We, Th, Fr (Monday to Friday)
- weekend days: Sa, Su (Saturday and Sunday)
- daily: Mo, Tu, We, Th, Fr, Sa, Su (Monday to Sunday)
AUTOMATIC TIME CHANGE - The change from winter to summer time takes place automatically on the last Sunday in March at 2:00 a.m., by adding one hour to the current time. The change from summer to winter time takes place automatically on the last Sunday in October at 3:00 a.m., by subtracting one hour from the current time.
DST (Daylight Saving Time) - is the global name for daylight saving time (free translation: sunlight saving time). This function makes it possible to switch off the automatic time change.
DATE OVERVIEW - In AUTOMATIC OPERATION mode, pressing the OK button displays the set date (dd-mm-yy). After 5 seconds, the clock automatically returns to the main level.
RESTART - Restarts the processor using a special button, necessary if the clock function is suspended. Does not delete the DATE, TIME or stored CONFIGURATION settings in memory.
MEMORY RESET (so-called "deep" reset) - Deletes all previous DATE, HOUR and stored ON/OFF COMMAND settings.
Specification
Available Configuration
Files to download:
Technical data
| Device Type | weekly timer |
| Brand | F&F FILIPOWSKI |
