Wall-mounted adjustable handrail bracket fi 50mm articulated AISI304 system 42.4 satin
0
Description

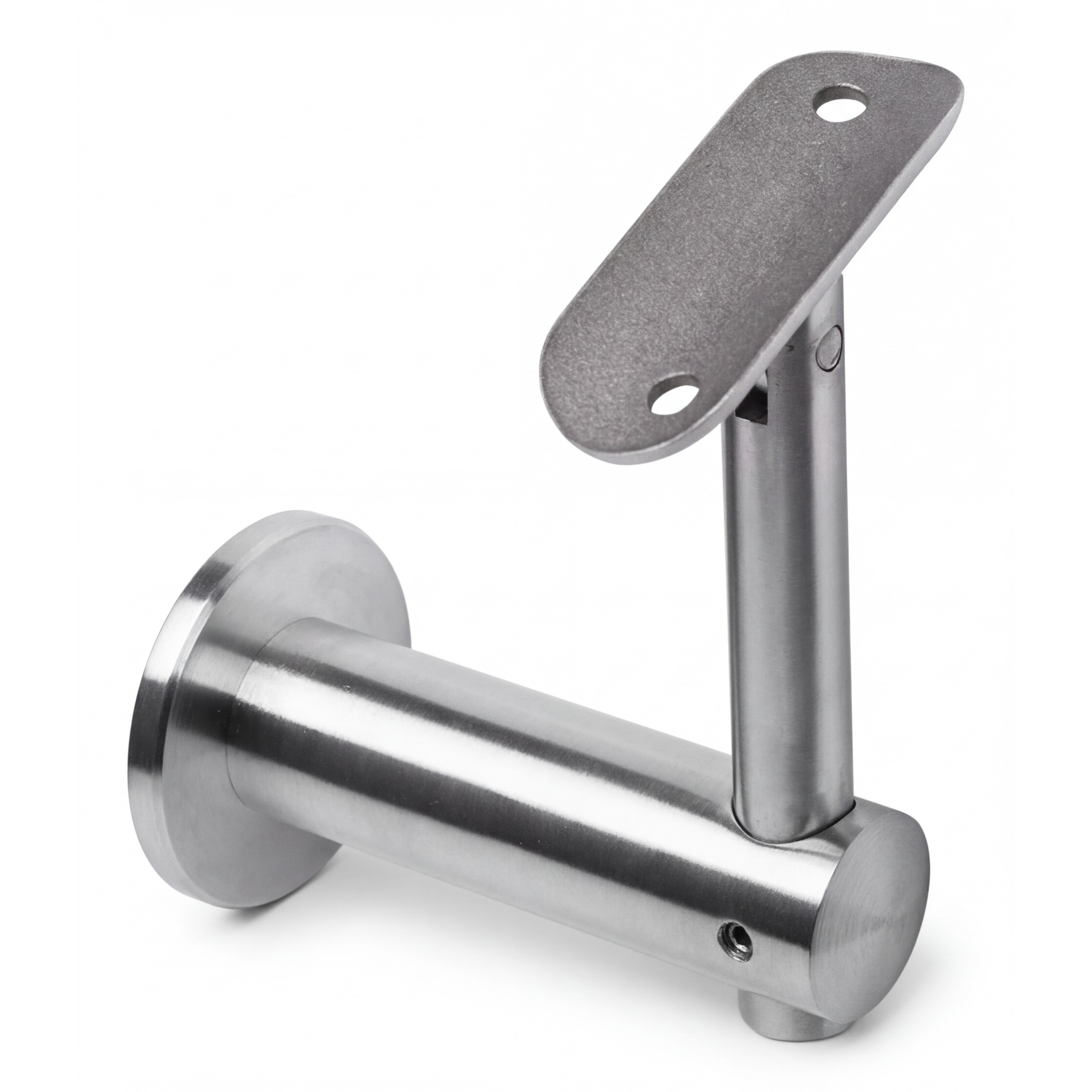

Wall-mounted articulated handrail bracket Ø50 mm – tube 42.4 mm AISI 304 satin
Articulated handrail bracket made from stainless steel AISI 304 designed for mounting handrails with diameter 42.4 mm on walls. The adjustable angle of inclination of the saddle allows for precise adjustment of the handrail's gradient — an ideal solution for stair and glass balustrades where both functionality and finishing aesthetics matter.
The bracket features solid construction and high aesthetic quality with satin finish (brushed). The articulated saddle enables smooth adjustment of the handrail angle, which significantly speeds up installation on stair flights with varying inclinations. The mounting rosette with diameter Ø50 mm aesthetically conceals the anchoring point, whilst the M8 thread ensures secure wall mounting. This element is one of the most intensively used components of a balustrade — therefore it is manufactured from high-grade stainless steel guaranteeing years of durability and corrosion resistance.
AISI 304 stainless steel is extremely easy to keep clean — most dirt can be removed with a dry soft microfibre cloth, and greasy stains with a special stainless steel cleaner that will leave an invisible protective coating.

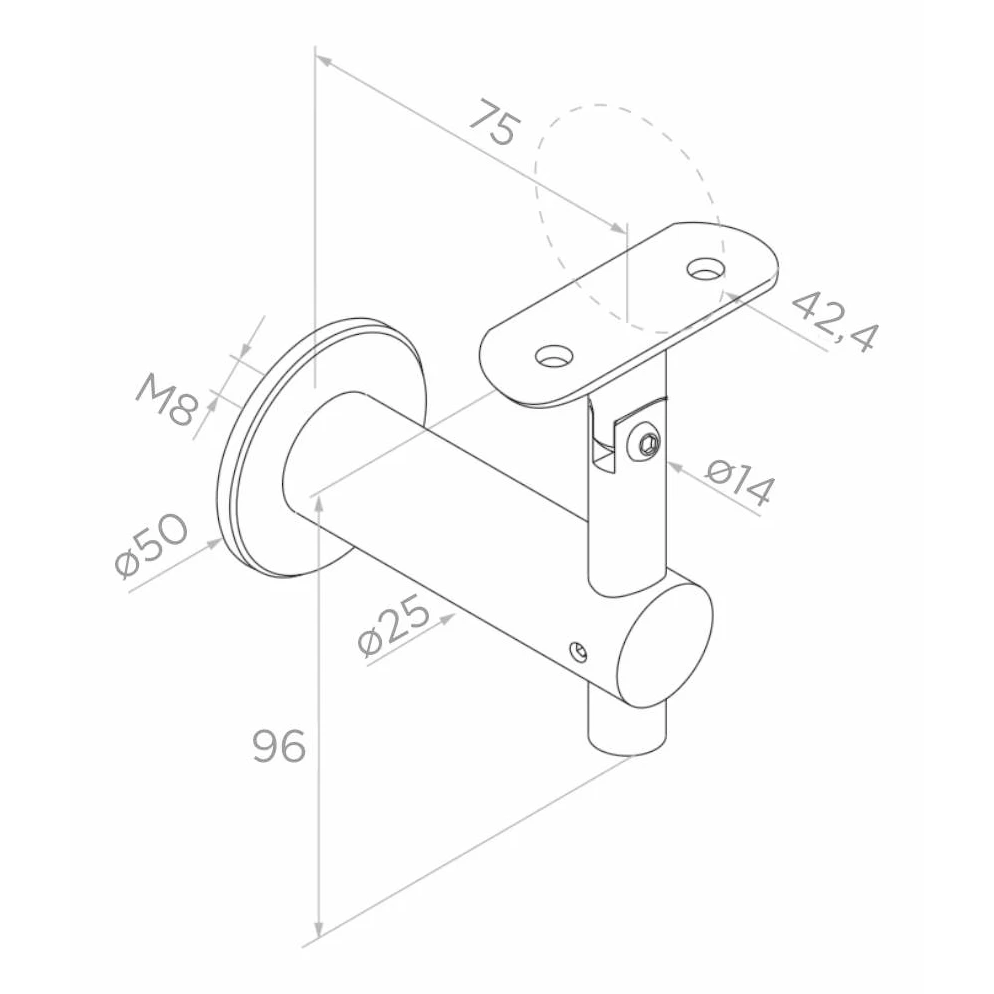

Dimensions and technical data
- Handrail tube diameter: Ø42.4 mm
- Mounting rosette diameter: Ø50 mm
- Support arm diameter: Ø25 mm
- Joint pin diameter: Ø14 mm
- Projection from wall (to handrail axis): 75 mm
- Arm length (from wall): 96 mm
- Fixing thread: M8
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Type: articulated – angle of inclination adjustment
- Weight: 0.5 kg
- EAN: 5901289671781
Application
The bracket is dedicated to stainless steel balustrade systems based on Ø42.4 mm tube. It will prove particularly suitable as a mounting element for handrails on glass, stair and balcony balustrades. The articulated construction allows use on stair flights with varying inclinations without the need for cutting or modifying the bracket — simply set the appropriate angle of the saddle. Solid construction and high aesthetics of the satin surface ensure a cohesive appearance with other elements of stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
