Wall mount handrail bracket Ø 60 mm – AISI 304 stainless steel satin finish, 42.4 mm system
Description
Wall mount handrail bracket Ø 60 mm – AISI 304 stainless steel satin finish, 42.4 mm system

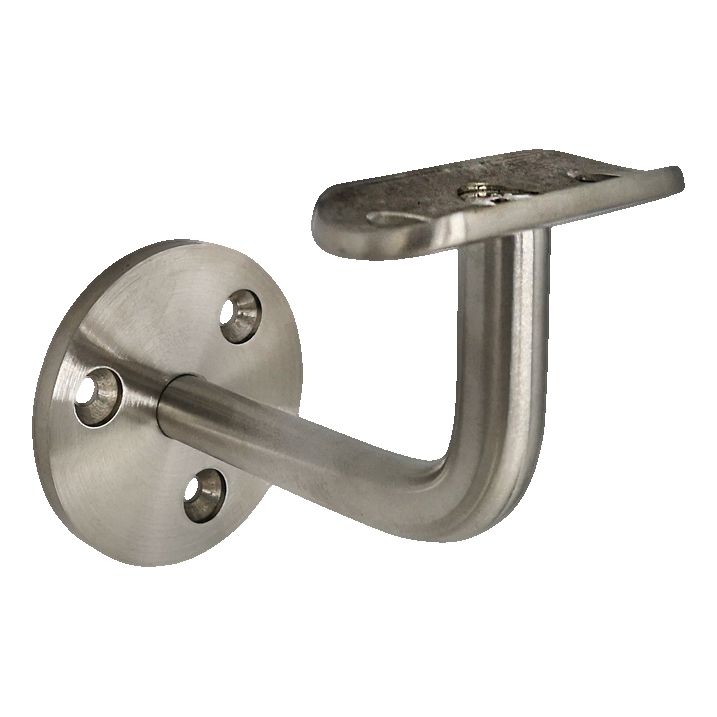

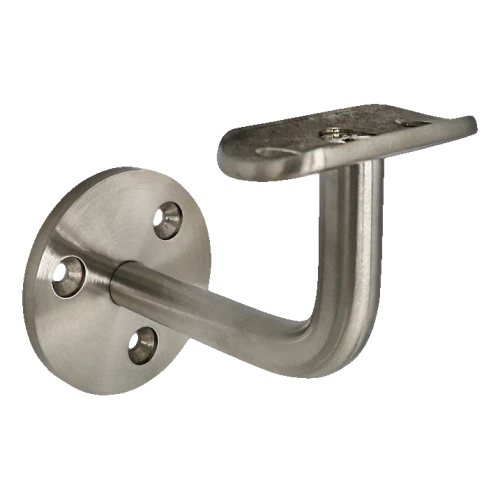

Wall mount handrail bracket Ø 60/12 mm is a robust mounting element designed for fixing handrails to walls. Made from AISI 304 stainless steel with satin finish, it combines high aesthetics with years of durability. Thanks to its universal L-shaped construction with round mounting rosette, the bracket ensures stable and secure support for handrails with diameter 42.4 mm — a standard commonly used in balustrade systems.
The mounting rosette with three holes enables secure attachment to the wall, whilst the profiled top plate precisely fits the handrail tube. The satin surface finish gives the whole assembly a modern, elegant appearance and is extremely easy to maintain — most dirt can be removed with a dry, soft microfibre cloth, whilst stubborn stains can be cleaned with a special stainless steel cleaner.

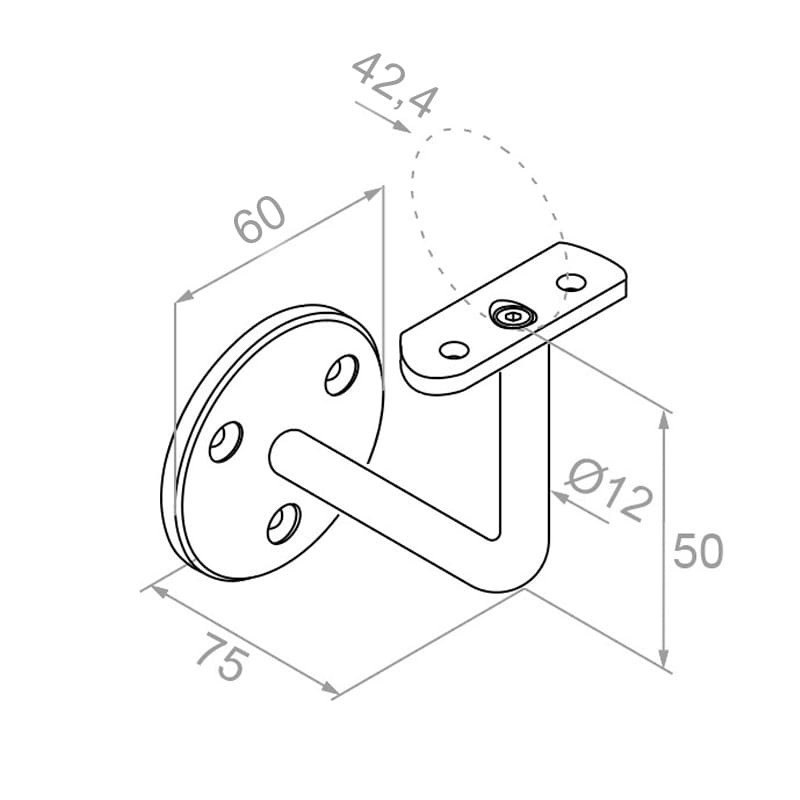

Dimensions and technical data
- Mounting rosette diameter: 60 mm
- Support arm diameter: Ø12 mm
- Depth (distance from wall): 75 mm
- Height (from arm centre to plate): 50 mm
- Compatible handrail tube diameter: 42.4 mm
- Number of mounting holes: 3
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.22 kg
- EAN: 5901289671682
Application
The bracket is designed for mounting handrails on internal and external balustrades on walls. It is ideal for residential buildings, offices and public buildings. AISI 304 stainless steel guarantees high corrosion resistance, allowing trouble-free operation even in conditions of increased humidity — e.g. on staircases, balconies or at building entrances.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
