Wall handrail bracket for ø50mm AISI304 system 42.4 satin
Description

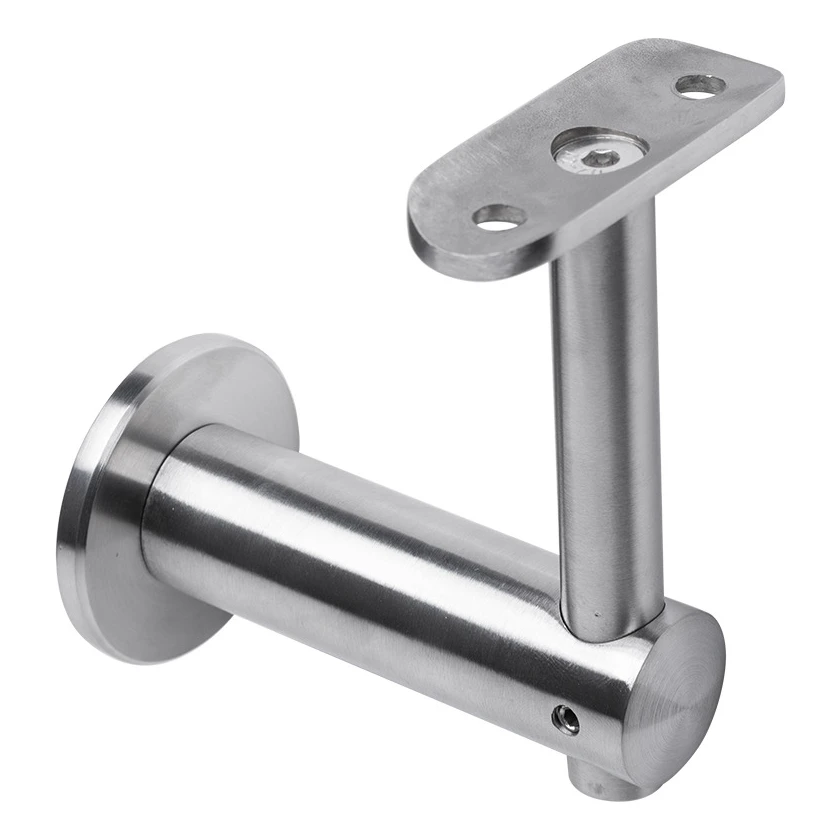

Wall handrail bracket for 42.4mm tube – AISI 304 stainless steel, satin
Wall-mounted handrail bracket designed for mounting balustrade handrails with tube diameter of 42.4mm. Made of AISI 304 stainless steel with satin finish — provides high corrosion resistance and an aesthetic, matt appearance. Thanks to its solid construction and precise workmanship, the bracket guarantees long-lasting durability and stable handrail support, which translates into safe use of the entire balustrade.
Construction and application
The bracket consists of a wall rose with diameter of 50mm, horizontal arm with diameter of 25mm and vertical post with flat mounting plate equipped with holes for screwing the handrail. The M8 fixing thread enables secure mounting to the wall. The element works excellently as a finishing touch for glass balustrades and classic tubular systems — enhances the visual qualities of the construction and ensures consistency of the entire handrail system.
AISI 304 stainless steel is extremely easy to keep clean — most dirt can be removed with a dry, soft microfibre cloth, and greasy stains with a special stainless steel cleaner that leaves an invisible protective coating.

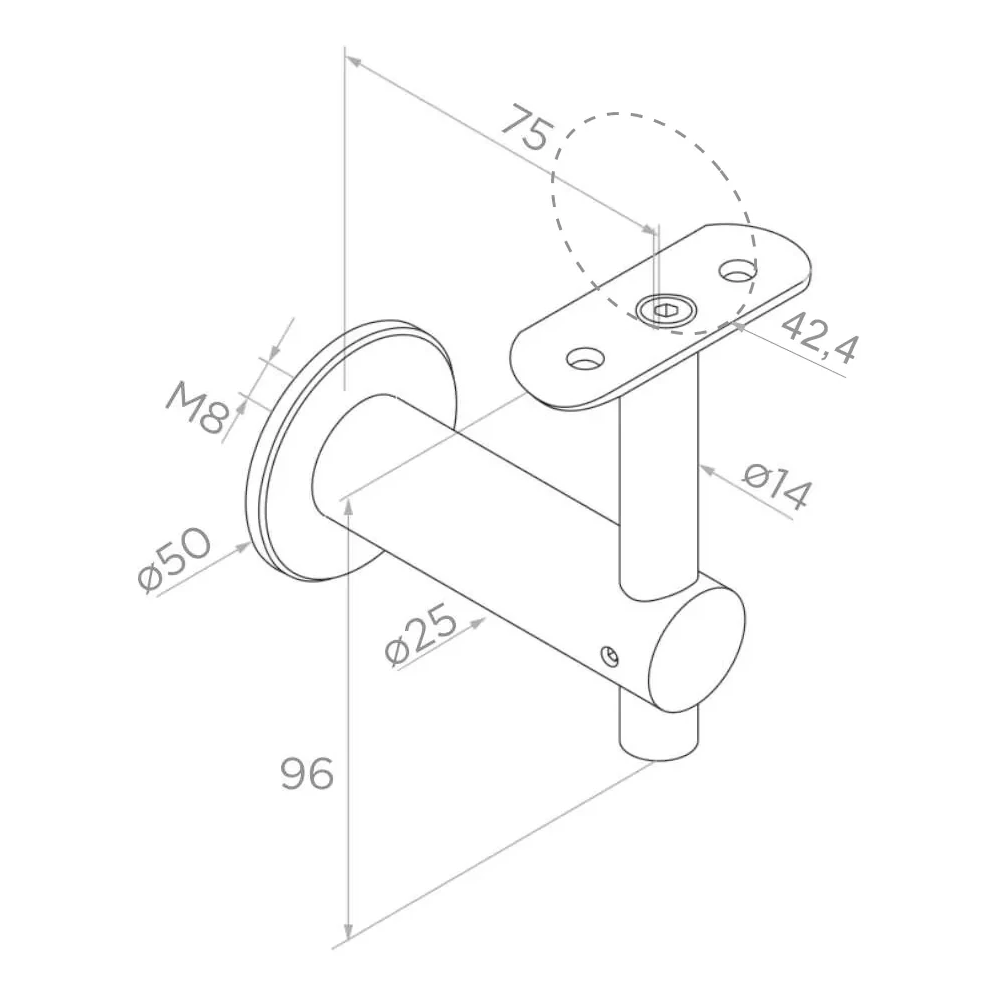

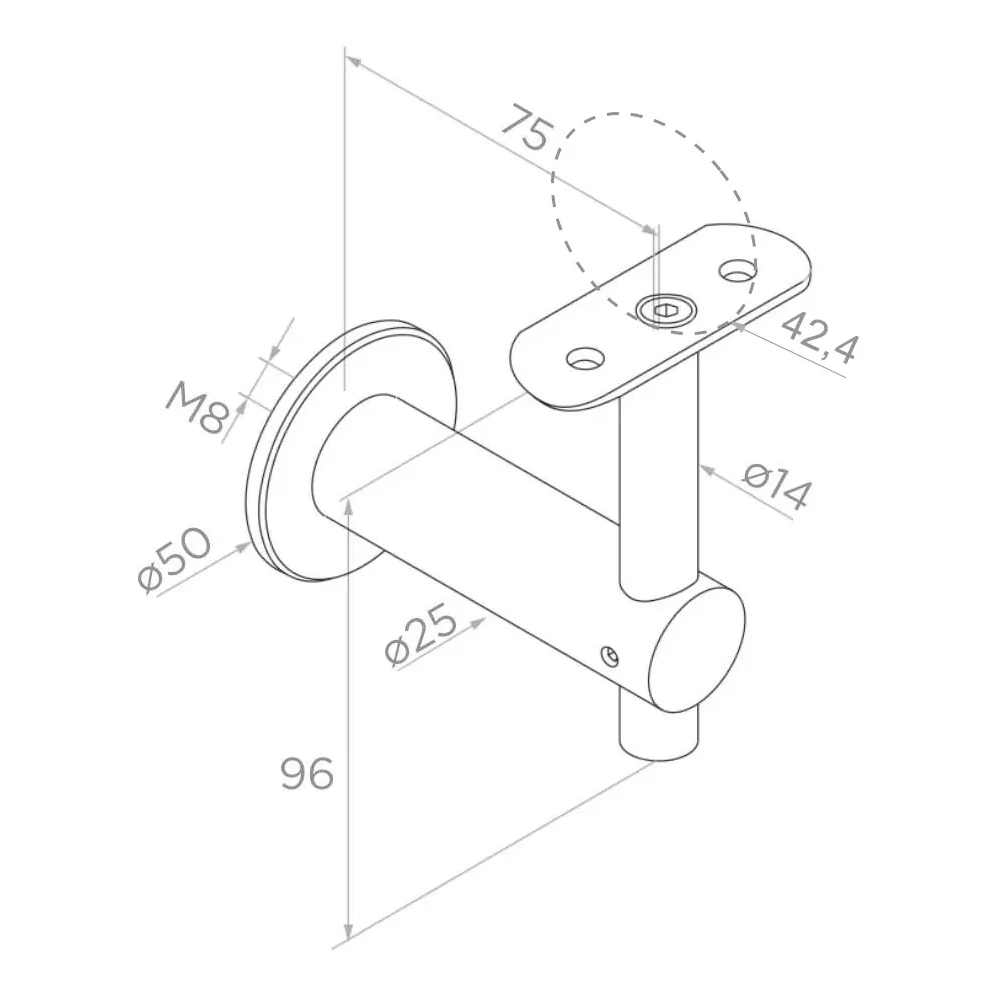

Dimensions and technical parameters
- Purpose: for handrail tube with diameter 42.4mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Wall rose diameter: ø 50mm
- Horizontal arm diameter: ø 25mm
- Vertical post diameter: ø 14mm
- Total height: 96mm
- Distance from wall to post axis (projection): 75mm
- Fixing thread: M8
- Weight: 0.455kg
- EAN: 5901289671804
Important information: the kit does not include mounting screws — appropriate type of plugs and screws must be selected according to the wall type (concrete, brick, block, etc.).
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
