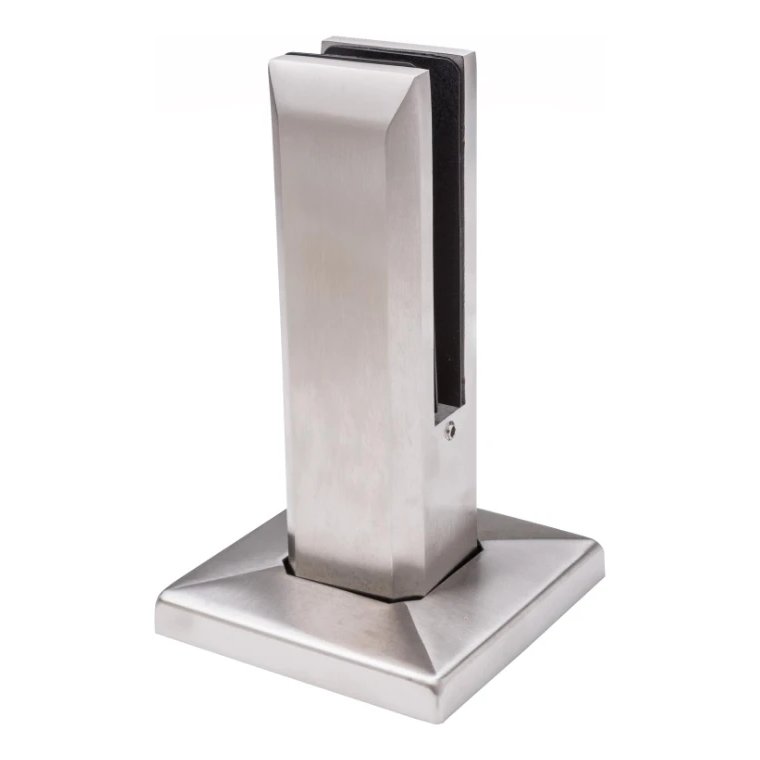

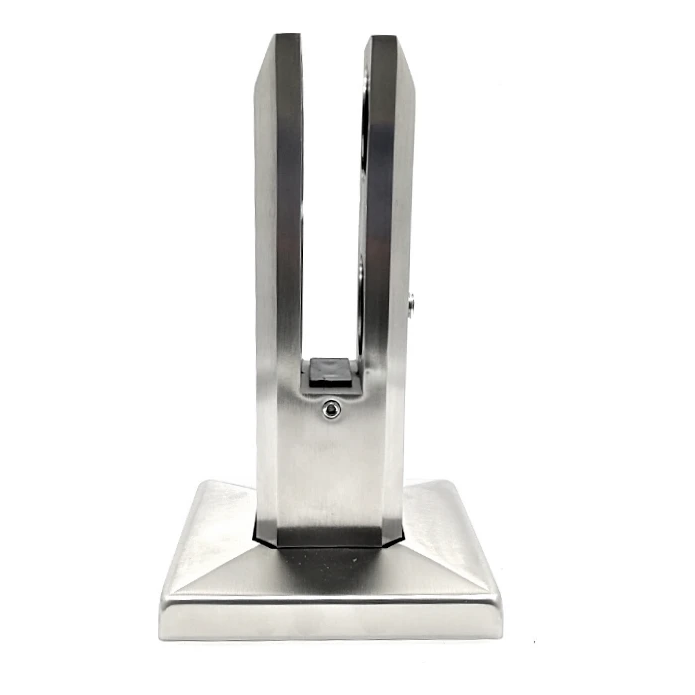

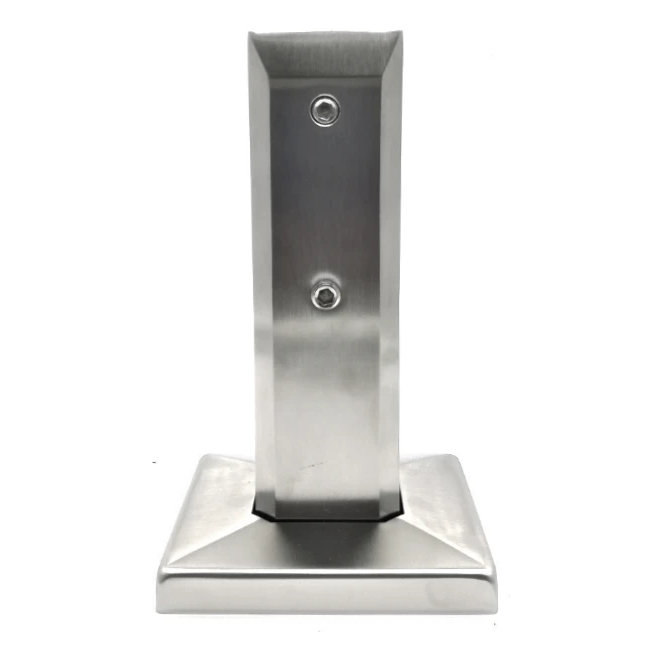

Vertical glass spigot clamp 50x50/100x100 mm. glass 12-17.52 mm. AISI 304 satin

Stable and secure glass fixing

The primary function of the spigot clamp is stabilisation of the glass panel, ensuring the safety of the entire balustrade structure. The clamp is secured to the floor using anchor bolts, with the fixing points concealed beneath an elegant cover plate, providing a clean and refined finish. The clamp's design allows for fast and repeatable installation, saving valuable time on site.

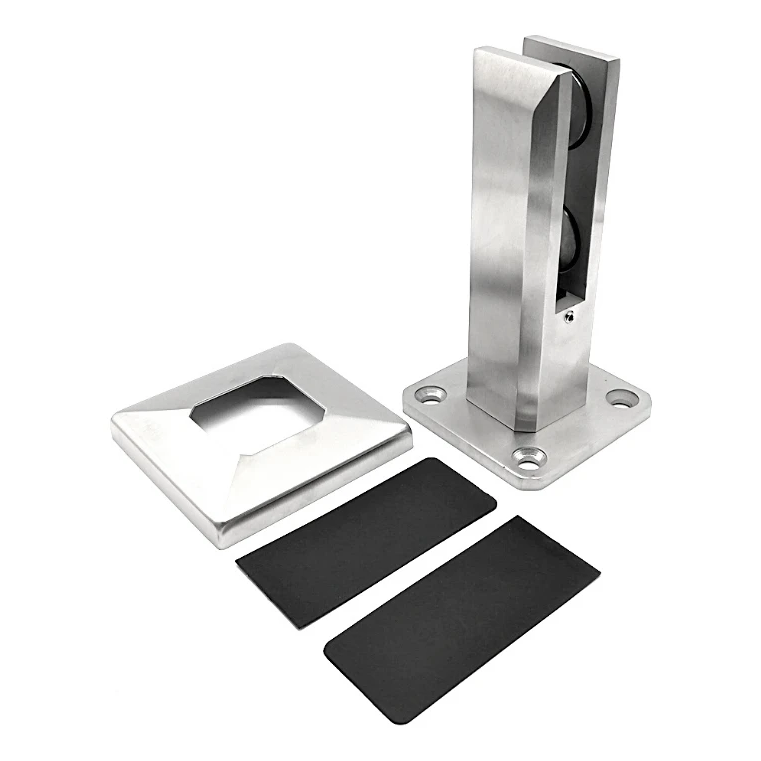

Kit contents

• Spigot clamp body in AISI 304 stainless steel
• Base cover plate – conceals the fixing bolts
• 2 rubber gaskets – retain and cushion the seated glass panel

The included rubber gaskets serve a dual purpose – they protect the glass from direct contact with metal and ensure a secure grip on the panel within the clamp. This eliminates the risk of cracking and vibration in the glass.

Material and finish

The clamp is manufactured entirely from AISI 304 stainless steel – a material with high corrosion resistance, suitable for both indoor and outdoor applications. The satin surface finish gives the component a modern, sophisticated character that complements frameless glass balustrades perfectly. Stainless steel guarantees long-lasting durability with no maintenance required, even in conditions of elevated humidity.

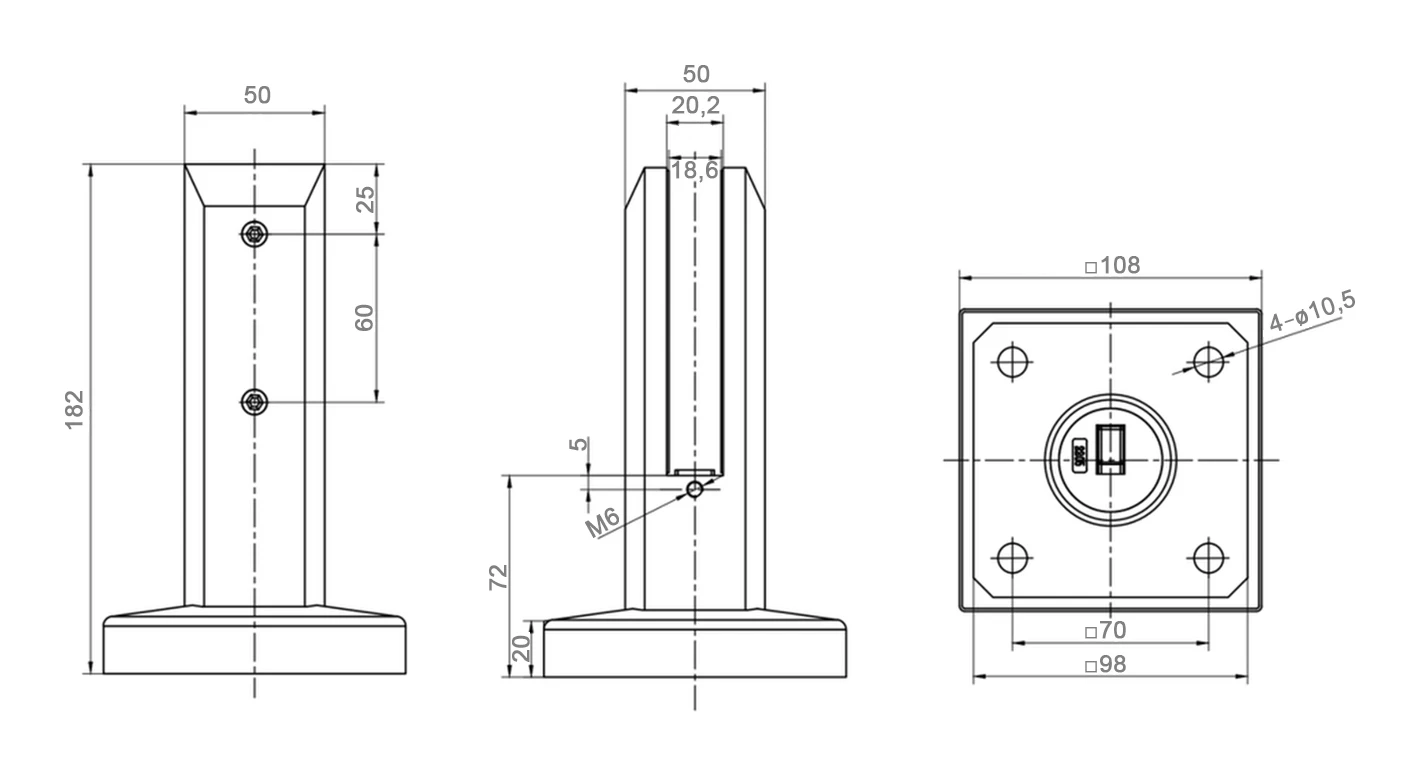

Technical specification

• Material: AISI 304 stainless steel
• Finish: satin
• Glass thickness: 12–17.52 mm
• Overall height: 182 mm
• Base height: 20 mm
• Mounting base dimensions: 98 × 98 mm
• Cover plate dimensions: 108 × 108 mm
• Base thickness: 10 mm
• Body width: 50 mm
• Glass slot width: 20.2 mm (external) / 18.6 mm (internal)
• Fixing hole spacing: 70 × 70 mm
• Fixing hole diameter: 4× ø10.5 mm
• Clamping bolt: M6
• Fixing method: bolted to substrate
• Weight: 2.1 kg

Applications

The spigot clamp is designed primarily for the installation of frameless glass balustrades on terraces, balconies, staircases, mezzanines and commercial premises. By fixing to the floor, it eliminates the need for drilling into the glass, simplifying the installation process and increasing the structural integrity of the assembly. Professional installation contractors will appreciate the simplicity and repeatability of the installation – the component requires only correct anchoring to the substrate, seating of the glass with gaskets, and fitting of the cover plate.
