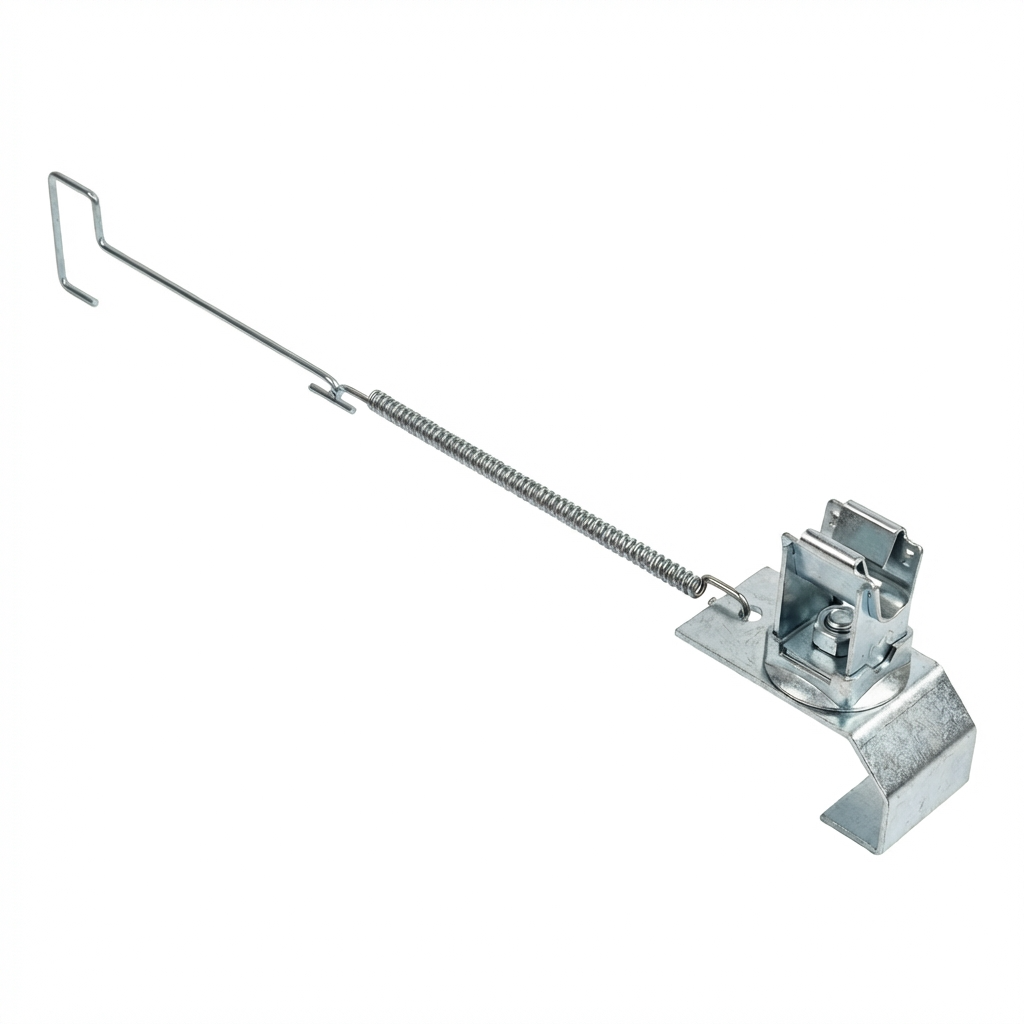

Universal spring tile hook stainless steel

The hook enables routing of Ø8 mm lightning conductor wire both along and across the roof pitch. The spring-loaded clamp mechanism covers a range of 350–500 mm, meaning one solution works for most popular tiles – without the need to select dedicated hooks for each roof covering format.

Made from acid-resistant stainless steel guarantees many years of resistance to weather conditions, UV radiation and corrosion. This is a solution that requires no maintenance and retains full functionality throughout the entire service life of the lightning protection installation.

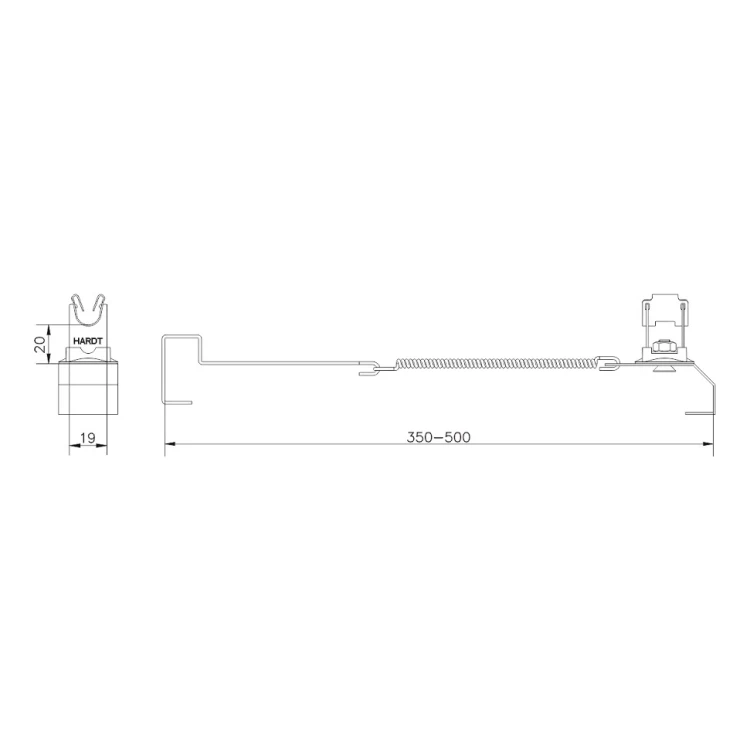

Technical specifications

• Material: acid-resistant stainless steel
• Conductor range: round wire Ø8 mm
• Hook height: H = 20 mm
• Clamp range: 350–500 mm
• GTIN: 5907675564866

Quick installation – the hook is placed under the tile and the spring clamp automatically adapts to the thickness of the covering. No additional tools or fixing screws required, which significantly speeds up work on the roof and reduces the installation time of the entire lightning protection system.

Universal application means that one hook type is sufficient for the entire roof – simplifying both ordering and logistics on the construction site. An ideal solution for installation companies carrying out projects on various types of tiles.
