Universal ridge tile holder spring stainless steel
Description

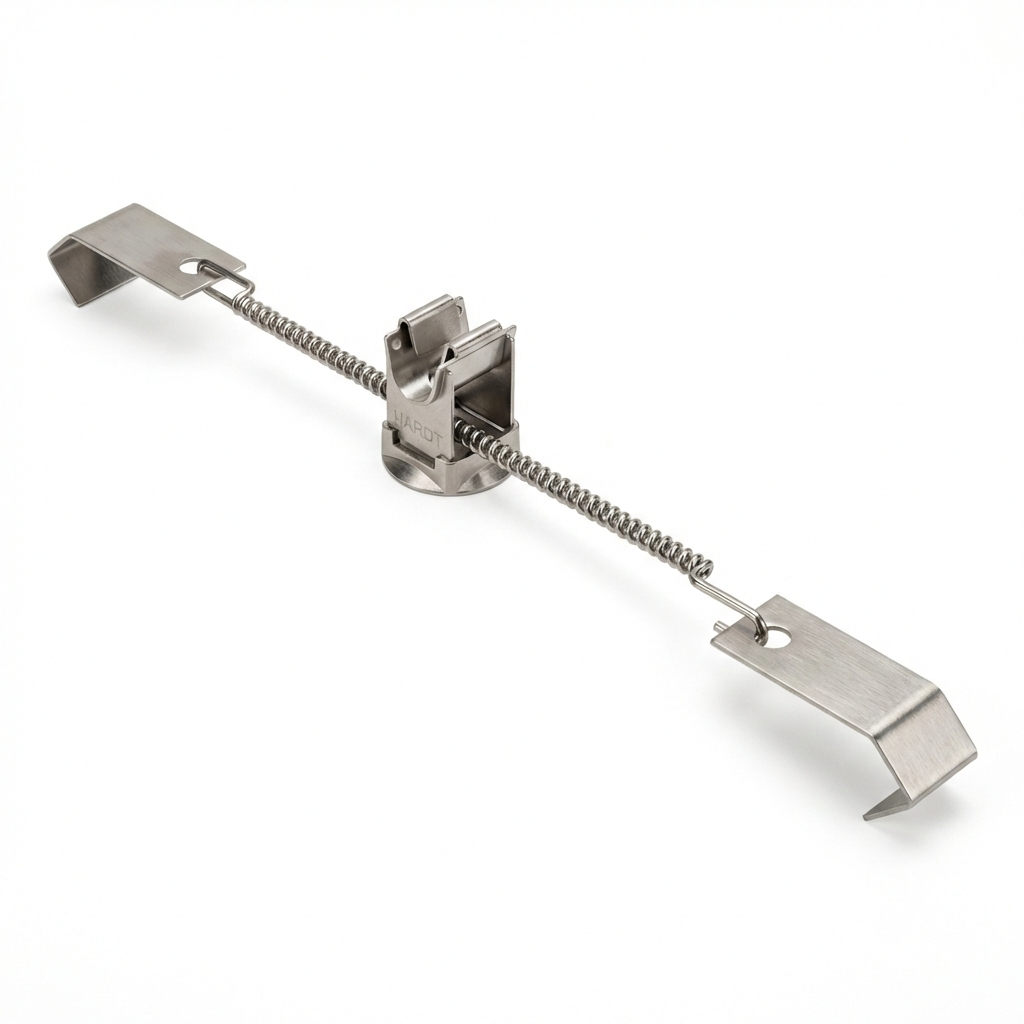

Universal spring ridge clamp – stainless steel (INOX)
Universal spring ridge clamp (INOX) is a reliable component of lightning protection systems, designed for routing Ø8 mm lightning conductor wire along roof ridges. Made entirely from acid-resistant stainless steel, it ensures long-lasting durability even in the most demanding weather conditions.
Universal mounting is the key advantage of this clamp. Thanks to its spring-loaded arm design, the clamp adapts to roof ridges with widths ranging from 240 to 420 mm, eliminating the need to select different variants for different roof types. One product – wide application.

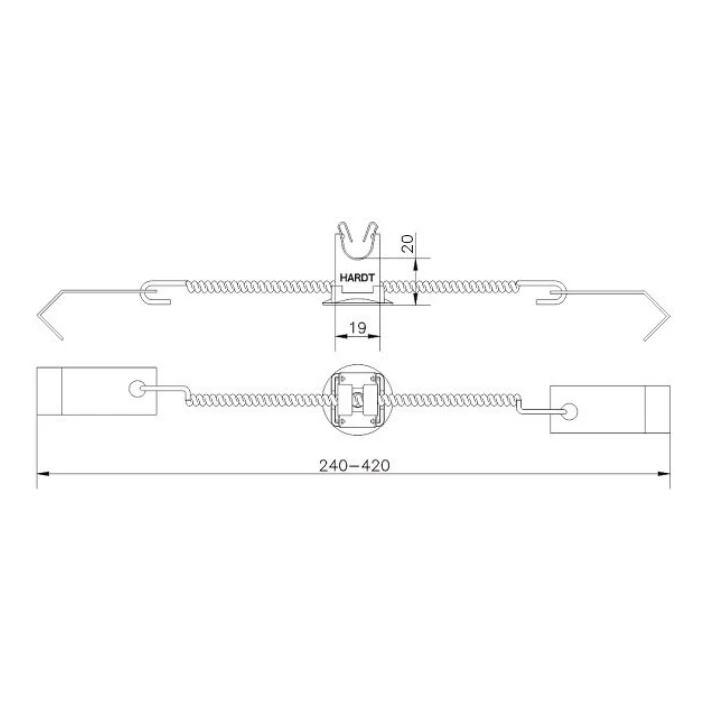

The spring-loaded arms provide secure and stable mounting on the ridge, whilst the central U-type holder element firmly secures the lightning conductor wire with a diameter of Ø8 mm. The clamp height is just H=20 mm, allowing for discreet installation without disrupting the roof's aesthetics.
Technical specifications
- Material: acid-resistant stainless steel (INOX)
- Conductor range: round wire Ø8 mm
- Clamp height: H=20 mm
- Clamping range (ridge): 240–420 mm
- GTIN: 5907675564835
Why choose the stainless steel version? Acid-resistant stainless steel is resistant to corrosion, UV radiation and changing weather conditions. This is particularly important in lightning protection systems, where mounting components are exposed to direct rain, snow and moisture throughout the year. By choosing the INOX version, you gain a product with significantly longer service life compared to equivalents made from corrosion-prone materials.
Quick installation without specialist tools – the spring-loaded design allows easy placement of the clamp on the roof ridge, followed by securing the lightning conductor wire. This solution will be appreciated by both experienced installers and teams undertaking their first lightning protection projects.
