  • Universal clamp for rebate galvanically galvanized steel 000-157 (1)
  • Universal clamp for rebate galvanically galvanized steel 000-157 (2)
AH Hardt

Universal clamp for rebate galvanically galvanized steel

Go to Product feedback

Universal seam clamp made of electrolytically galvanised steel, for mounting cables Ø8–10 mm along and across the seam, fixing 2×M10×30.

Go to full description
with VAT without VAT
Price €3.97
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Universal standing seam clamp – galvanically galvanised steel

Universal standing seam clamp is a reliable solution for mounting lightning conductors on standing seam metal roofs. It enables conductor routing both along and across the seam, providing complete freedom in lightning protection system layout.

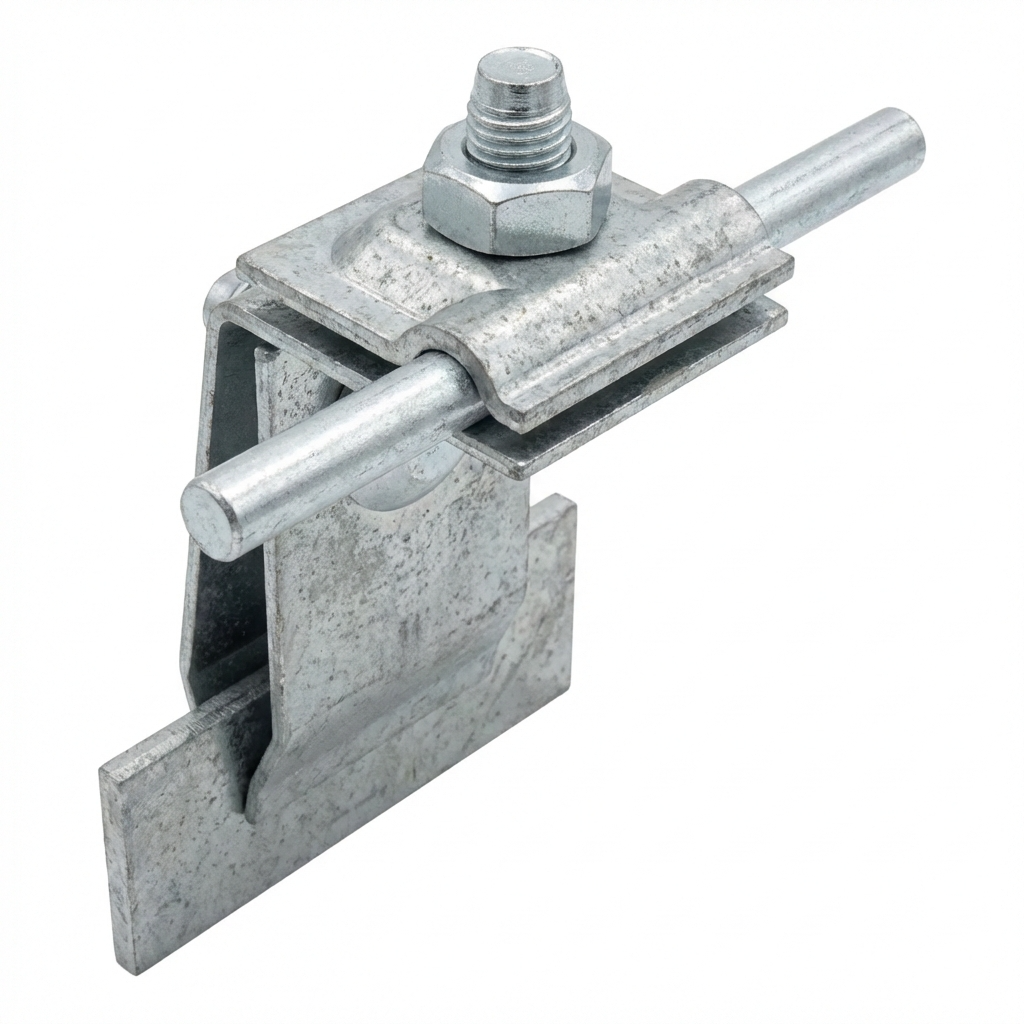

Universal standing seam clamp – 3D visualisation with round conductor mounted on standing seam
Universal standing seam clamp – 3D visualisation with round conductor mounted on standing seam

Manufactured from electrolytically galvanised steel, the clamp provides the highest class of anti-corrosion protection. The special galvanising process combined with polymer coating sealing guarantees long-lasting resistance to atmospheric conditions – even in demanding roofing environments.

The clamp's design allows mounting of round and flat conductors in the Ø8–10 mm range, covering the most popular cross-sections used in lightning protection installations. Fixing is achieved using two M10×30 screws made of galvanised steel, ensuring stable and durable connection to the seam.

Technical specifications

  • Material: electrolytically galvanised steel
  • Round/flat conductor range: Ø8–10 mm
  • Screw: 2×M10×30
  • Screw/nut material: galvanised steel
  • GTIN: 5901832915348

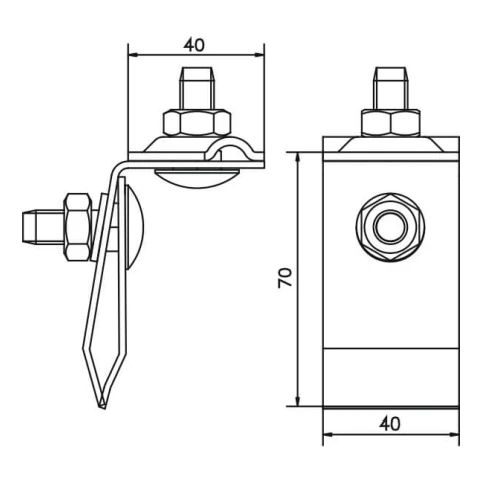

Technical drawing of universal standing seam clamp with dimensions 40×70×40 mm
Technical drawing of universal standing seam clamp with dimensions 40×70×40 mm

Compact construction with dimensions of just 40×70×40 mm makes the clamp discreet on the roof and does not disturb the roofing aesthetics. At the same time, it ensures secure conductor fixing in both routing directions – along and across the seam.

Installer benefits

  • Versatility: conductor mounting along and across the seam with a single component
  • Durability: electrolytic galvanising with polymer sealing
  • Easy installation: two M10 screws with nuts – quick and secure fixing
  • Wide range: accommodates Ø8–10 mm conductors (round and flat)
