Universal bracket galvanized steel
Leave feedback on the product
Galvanised steel universal bracket for Ø8–10 mm cables, mounting along and across the purlin, fastening 2×M10×30, dimensions 40×50 mm.
Product code: 000-159
Description

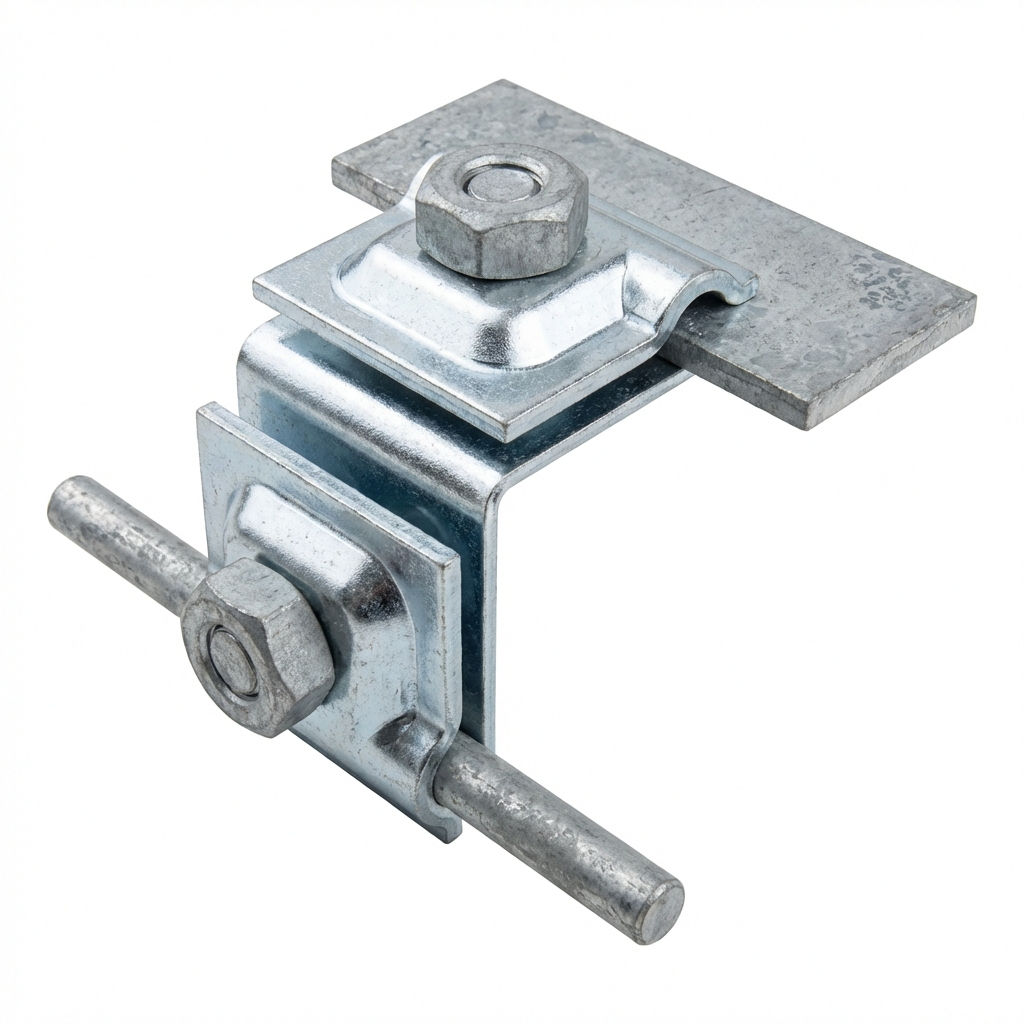

Universal bracket for mounting lightning conductors on metal roofs
Universal bracket designed for mounting round and flat conductors on metal-clad roofs. Enables conductor routing along and across the seam, providing complete freedom when planning lightning protection installations.
Thanks to its robust construction made of electrolytically galvanised steel, the bracket provides the highest class of anti-corrosion protection. A special galvanising process with additional polymer coating sealing guarantees durability and reliability even in demanding weather conditions.
Application range includes round and flat conductors with diameter Ø8–10 mm, making the bracket suitable for the vast majority of typical lightning protection installations.
Mounting is achieved using two M10×30 screws made of galvanised steel, ensuring a secure and stable connection to the roof substrate. Compact dimensions (40×50 mm) facilitate installation even in hard-to-reach locations.
Technical specifications
- Material: electrolytically galvanised steel
- Conductor range: Ø8–10 mm (round/flat)
- Screws: 2×M10×30
- Screw/nut material: galvanised steel

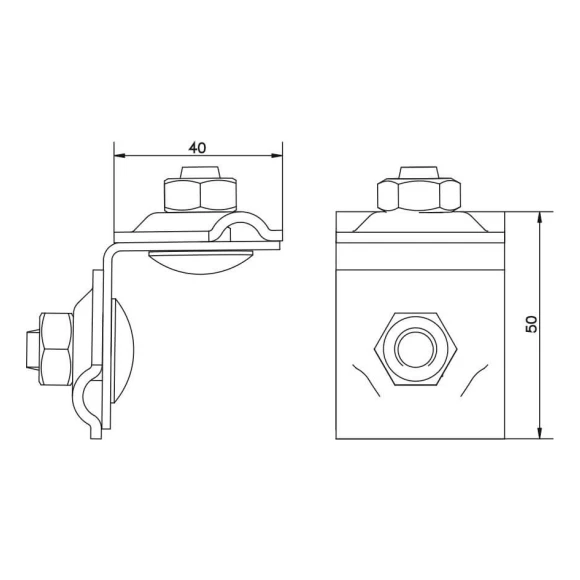

- Dimensions: 40×50 mm
- GTIN: 5901832915393
