Universal DIN double connector galvanized
Description

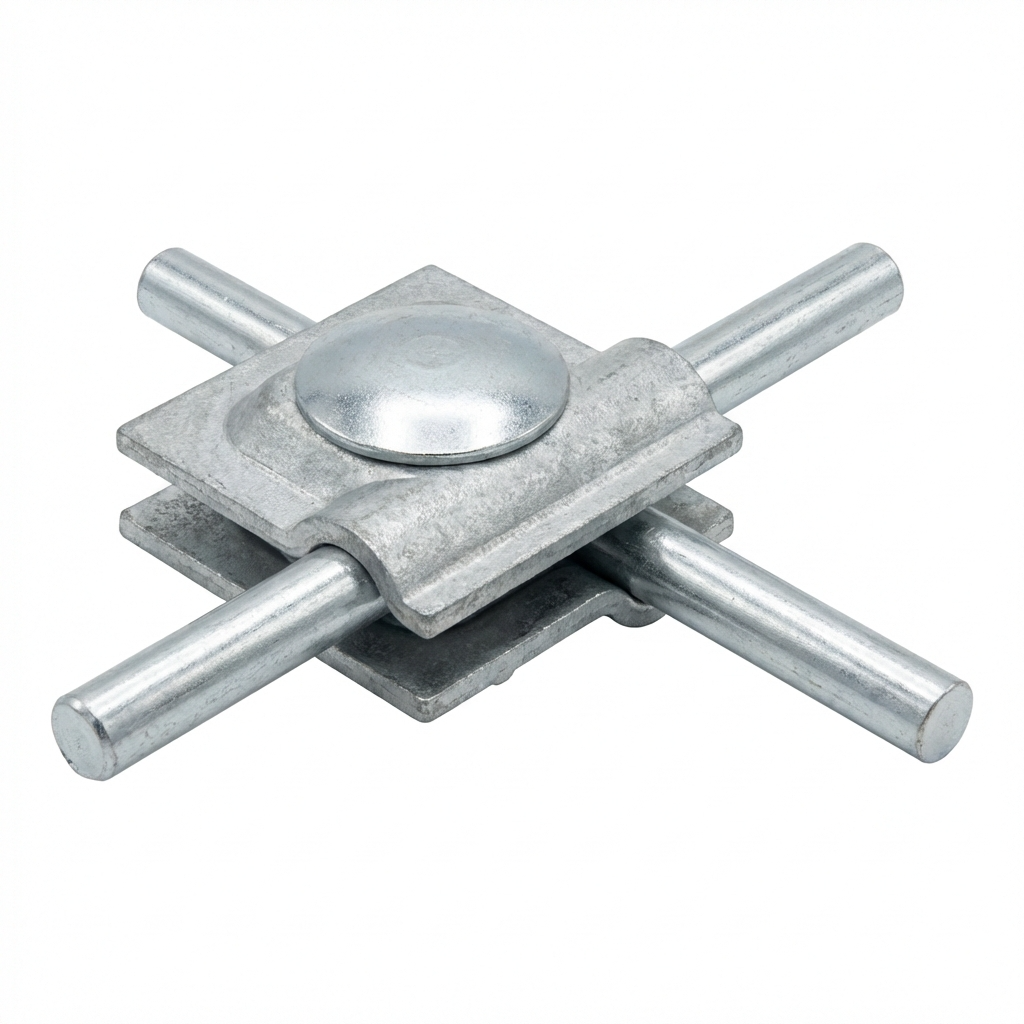

Universal DIN Double Connector (Galvanised Steel)
Universal DIN double connector is used for making permanent connections of round conductors in lightning protection systems. This reliable component of the lightning protection system performs excellently both on roofs and in ground-level installations.
The product features the highest class of anti-corrosion protection thanks to the use of a special galvanic zinc plating process and polymer sealing of the coating. Quality is confirmed by BBJ-SEP testing. The connector has been tested in accordance with PN-EN 62561-1 standard, achieving class H – resistance to lightning impulse current of 100 kA. AH Hardt is the only manufacturer in Poland with its own electrolytic zinc plating facility, which guarantees full control over the quality of the protective coating.
Technical specifications
- Material: electrolytically galvanised steel
- Round conductor range: Ø8–10 mm
- Bolt: 1×M10×30
- Bolt/nut material: galvanised steel
- GTIN: 5901832918837
Why choose this connector?
- Highest anti-corrosion protection: galvanic zinc plating with polymer sealing
- Confirmed quality: BBJ-SEP testing and compliance with PN-EN 62561-1 standard
- Class H: resistance to lightning impulse current of 100 kA
- Versatility: connects round conductors Ø8–10 mm
- Secure installation: M10 bolt ensures stable and durable connection
