Trolley 70 for sliding gate 2 steel rollers and 1 plastic - wide base
Leave feedback on the product

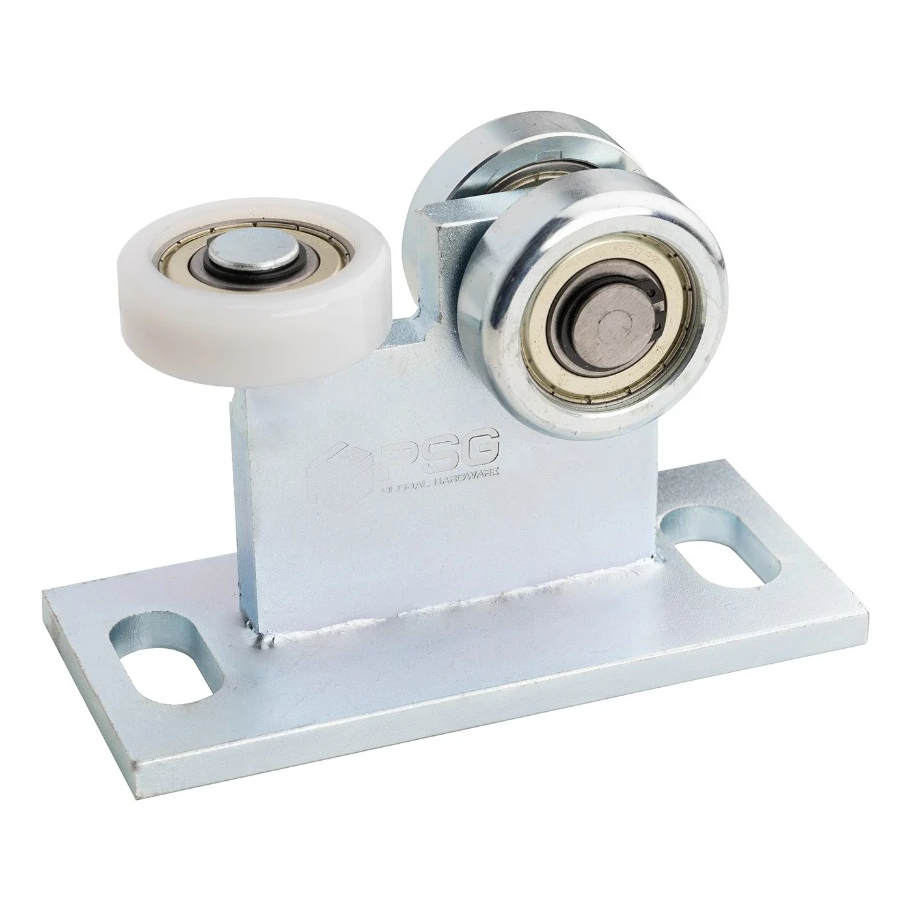

Running trolley for 70×70 mm rail system with 2 steel rollers and 1 plastic roller, base 180×80 mm, galvanised.
Product code: 000-330
Product features
[PIM] wozki #111
- Rail Size 70x70x4
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 3
- Trolley Construction Fixed
- Running System Type Suspended system
Description
Running Trolley 70 for Suspended Gate – 2 Steel Rollers + 1 Plastic Roller
The Running Trolley 70 for suspended gates is a robust and precision-engineered running component designed for 70 × 70 mm rail systems. By combining two steel rollers and one plastic roller, it ensures smooth, quiet sliding of the gate leaf — this combination of materials effectively minimises friction, rolling resistance and noise during operation. The galvanised surface protects the trolley against corrosion, making it suitable for use both inside industrial buildings and outdoors in variable weather conditions.
The wide base plate measuring 180 × 80 mm guarantees stable and even distribution of forces acting on the trolley during gate movement. This prevents the gate leaf from vibrating or tilting, which is particularly important for heavy industrial gates. The base plate is mounted via fixing holes that allow it to be securely bolted to the gate structure.
The load-bearing rollers are mounted on bearings, ensuring long-lasting, maintenance-free operation and minimal wear. The plastic guide roller serves a stabilising function — it keeps the trolley aligned with the rail axis and eliminates lateral play, whilst also dampening vibrations and reducing noise.

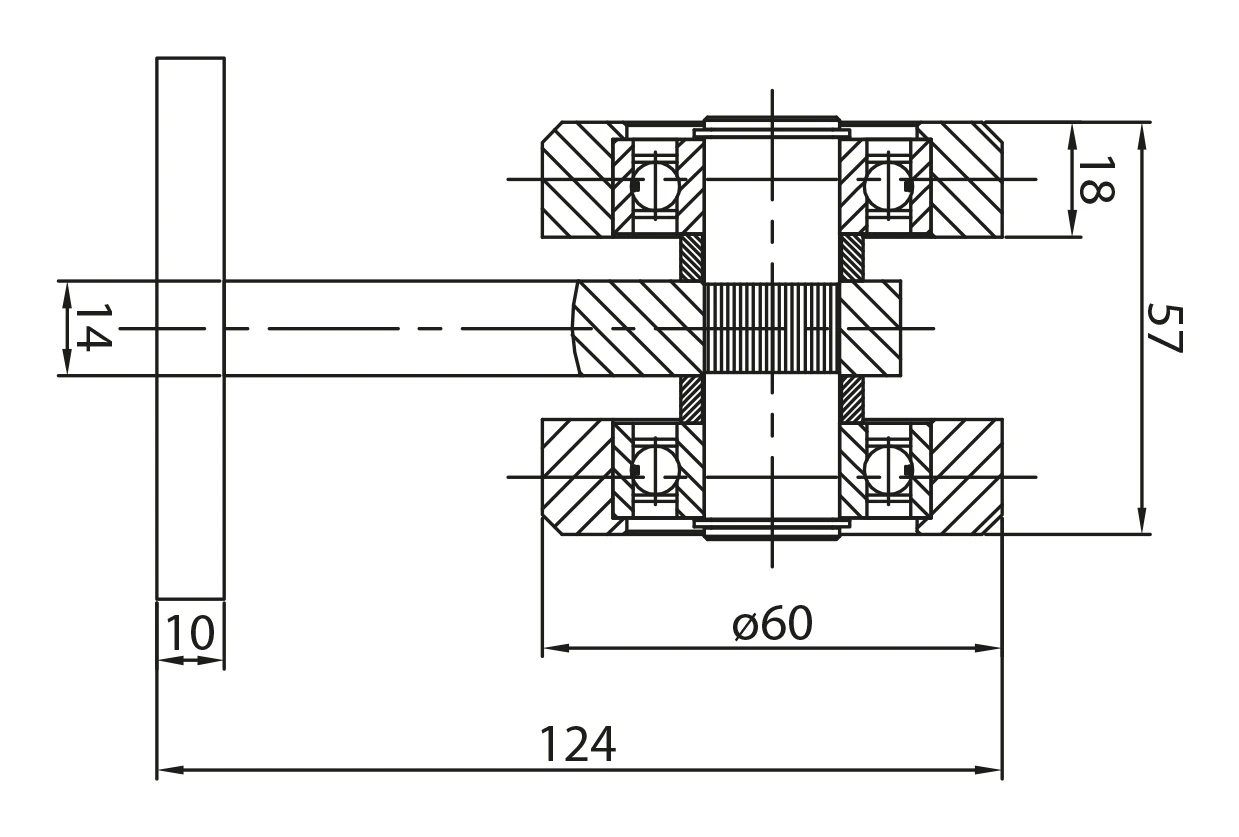

Dimensions and Technical Specifications
- Rail system: 70 × 70 mm
- Gate type: suspended
- Rollers: 2 steel + 1 plastic
- Load-bearing roller diameter: ø60 mm
- Load-bearing roller width: 18 mm
- External spacing of load-bearing rollers: 57 mm
- Spindle diameter: 14 mm
- Guide roller thickness (plastic): 10 mm
- Trolley height (H): 124 mm
- Base plate length (L): 180 mm
- Base plate dimensions: 180 × 80 mm
- Surface finish: galvanised
- Weight: 2.82 kg
- EAN: 5901289670029
Benefits for the Installer
- Galvanised finish provides corrosion resistance — longer service life with no need for additional maintenance
- The combination of steel rollers and a plastic roller delivers quiet and smooth gate operation
- The wide mounting base ensures stability and even load distribution
- Bearing-mounted load rollers guarantee maintenance-free operation over an extended period
- Versatile application — suitable for both indoor and outdoor installation
