Track for sliding gates 50x46x2.0 mm, length 2.9 m, galvanised
Leave feedback on the product

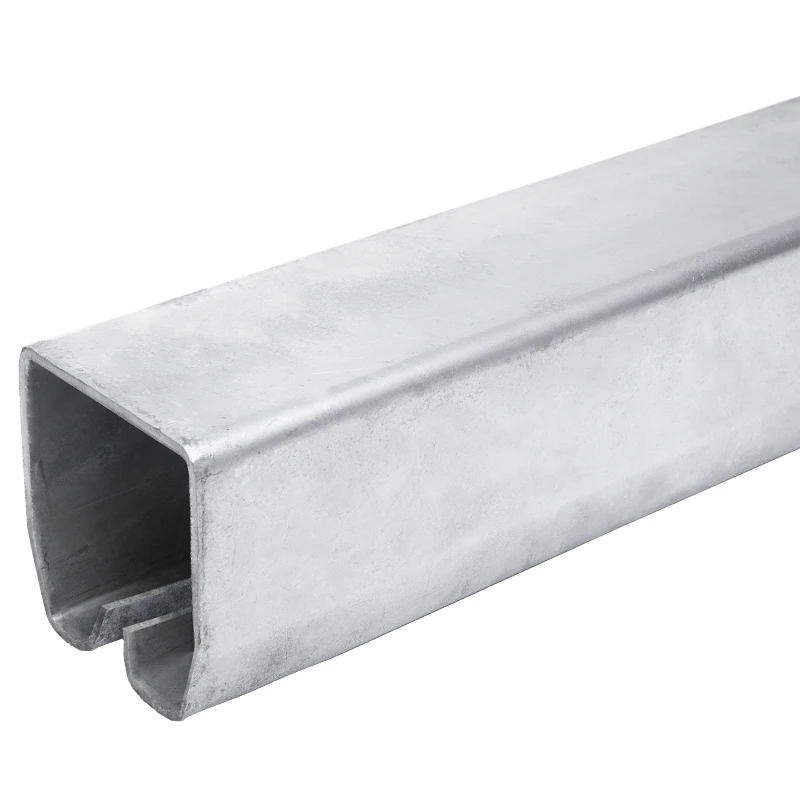

Steel running track (channel section) for suspended gates, cross-section 50×46 mm, wall thickness 2 mm, length 2900 mm. Material: galvanised steel.
Product code: 000-247
Product features
[PIM] szyny-jezdne #115
- Running System Type Suspended system
- Rail Size 50x46x2,0
Description
Galvanised Track for Suspended Gates 50×46 mm, Length 2.9 m
Steel running track (C-section channel) designed for suspended sliding gates — a reliable structural component along which the upper rollers or running trolleys travel. Made from galvanised steel, it provides high corrosion resistance and long-lasting durability even in demanding operating conditions.
The profile with a 50×46 mm cross-section and 2 mm wall thickness ensures adequate rigidity and load-bearing capacity for the entire gate structure. The track length of 2,900 mm allows flexible design of gate openings — tracks can be joined together to match the total guide length to the required gate span.
The C-section channel works seamlessly with popular running trolley and upper roller systems, making it easy for installation companies to select compatible components and reducing assembly time. The galvanised surface eliminates the need for any additional anti-corrosion treatment.

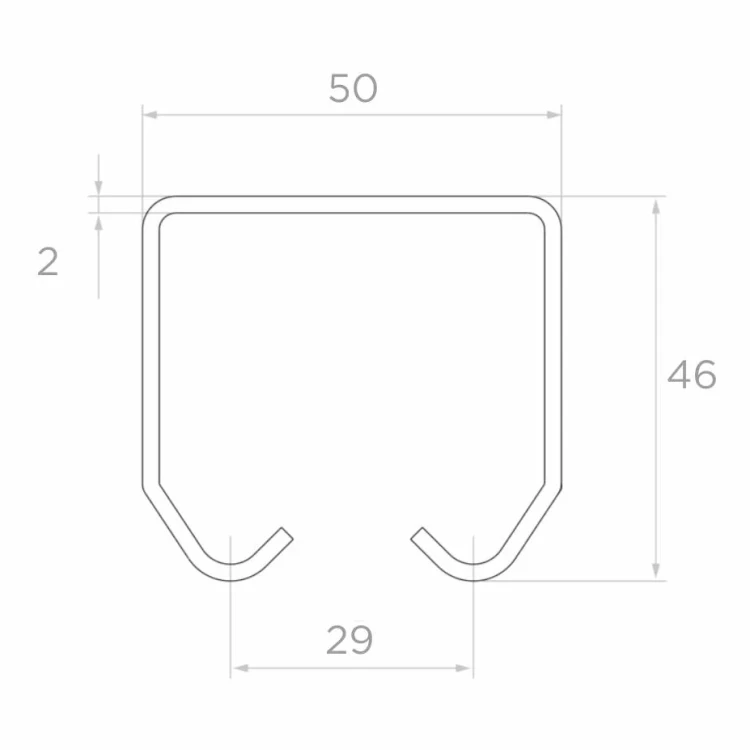

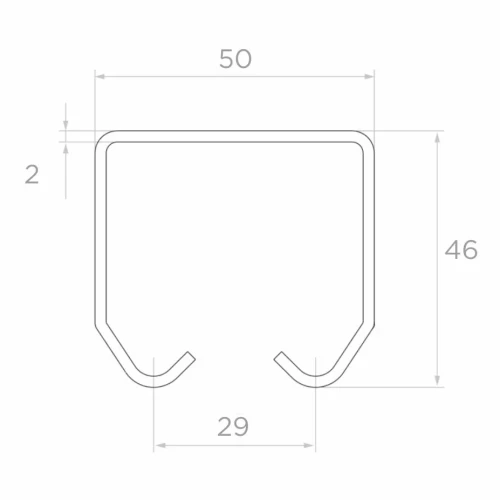

Technical Specifications
- External cross-section: 50 × 46 mm
- Wall thickness: 2 mm
- Lower channel width: 29 mm
- Track length: 2,900 mm
- Material: galvanised steel
- Weight: 6.94 kg
- EAN: 5903313206846
Application: the track serves as the main running rail in suspended gate systems. The C-section profile with a lower guide channel width of 29 mm ensures stable guidance of running trolleys and rollers, minimising lateral deviation of the gate leaf during opening and closing.
