Tie rod for glass canopy M10x1000 mm – stainless steel AISI 304, right/left thread, satin finish
0
Description

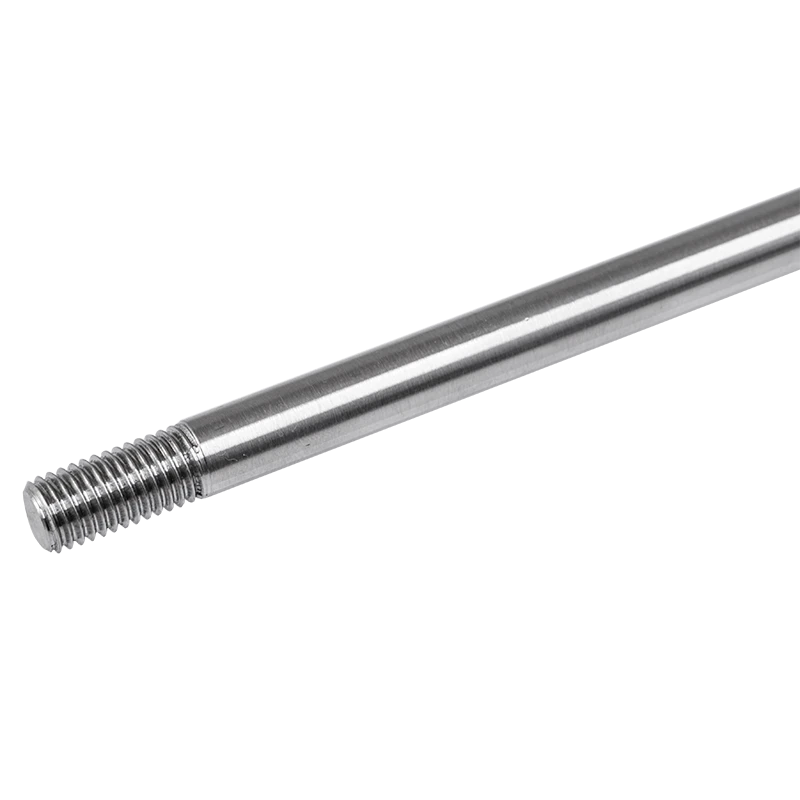

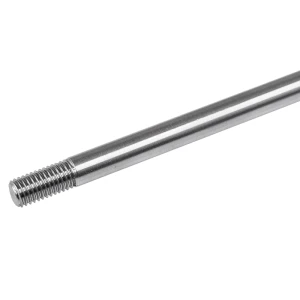

Tie rod for glass canopy M10x1000 mm – stainless steel AISI 304, right/left thread, satin finish
Tie rod for glass canopy M10x1000 mm is a reliable mounting component used in glass canopy systems. Made from a rod of stainless steel AISI 304 with a diameter of 10 mm, with M10 thread cut on both sides — right and left — it enables precise adjustment of length and tension directly at the installation site, without the need for cutting or additional machining.
The universal construction with opposing threads allows for smooth shortening or lengthening of the mounting spacing by simply rotating the rod. This significantly speeds up the installation of glass canopies over entrances to residential and commercial buildings, eliminating the need for repeated dismantling.

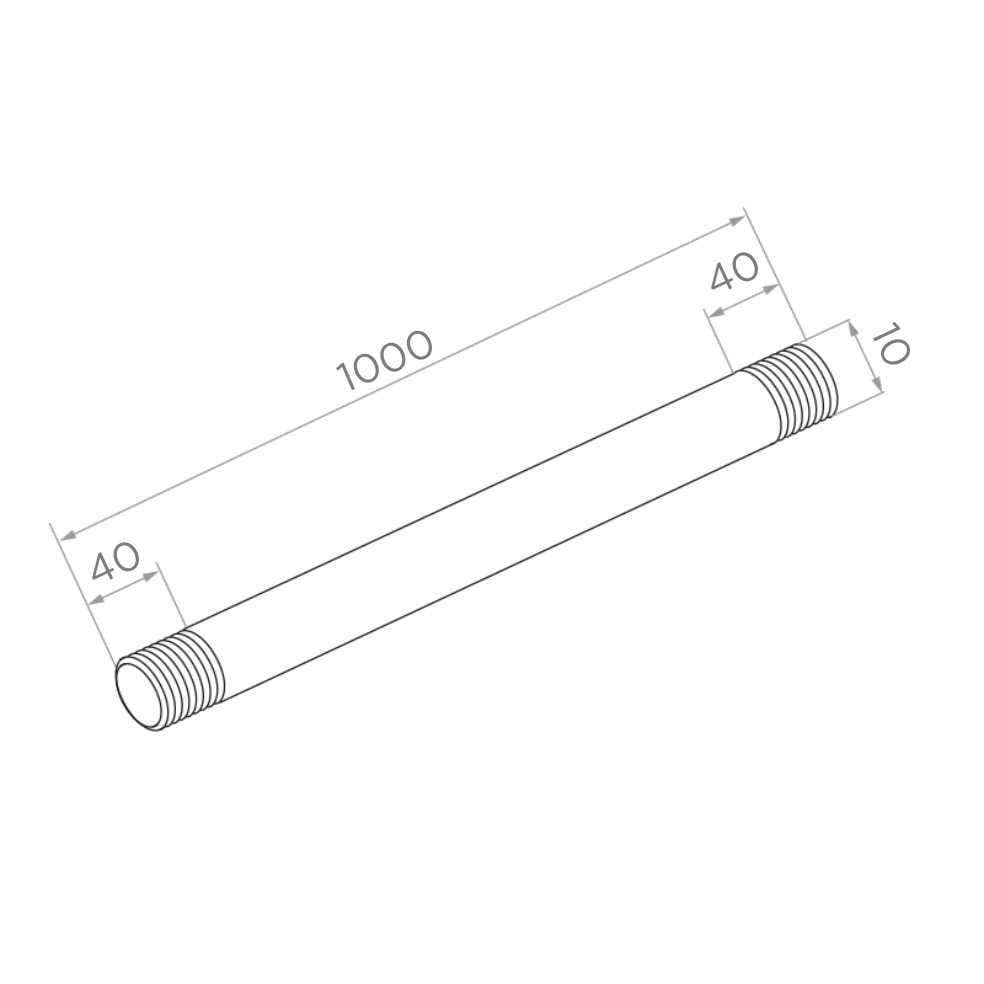

Dimensions and technical specification
- Total length: 1000 mm
- Rod diameter: 10 mm
- Thread: M10 — right-hand on one end, left-hand on the other
- Thread length (each side): 40 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.6 kg
- EAN: 5903313203500
Application and benefits
The tie rod is designed for mounting all types of glass canopies providing protection from rain, snow and other atmospheric conditions. Used in both residential buildings and commercial facilities — over entrances, terraces or walkways. Stainless steel AISI 304 guarantees high corrosion resistance in outdoor conditions, which translates to many years of trouble-free operation without the need for maintenance.
The satin surface finish gives the tie rod an elegant, modern appearance, which means it complements glass and steel elements perfectly — serving both a structural and decorative function. For installation companies, this means a product that requires no additional painting or finishing work after installation.
Technical data
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
| Material | AISI 304 |
