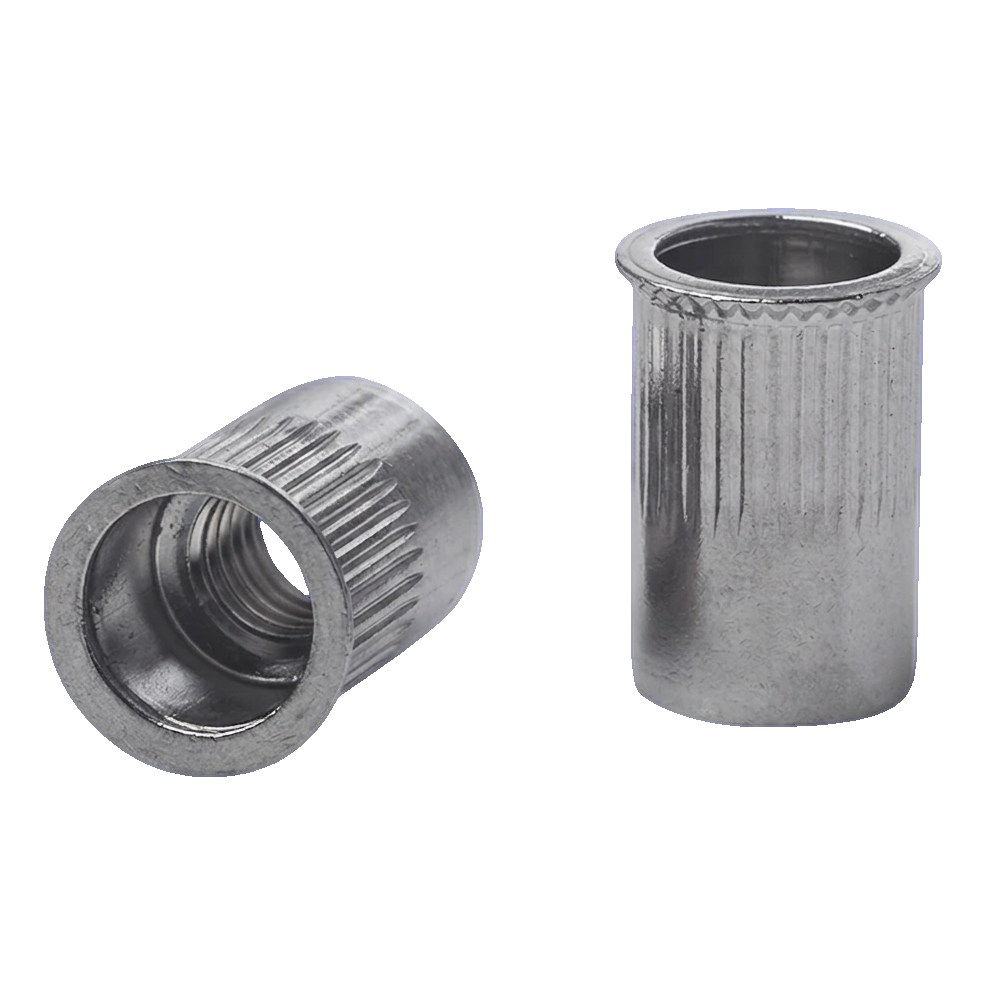

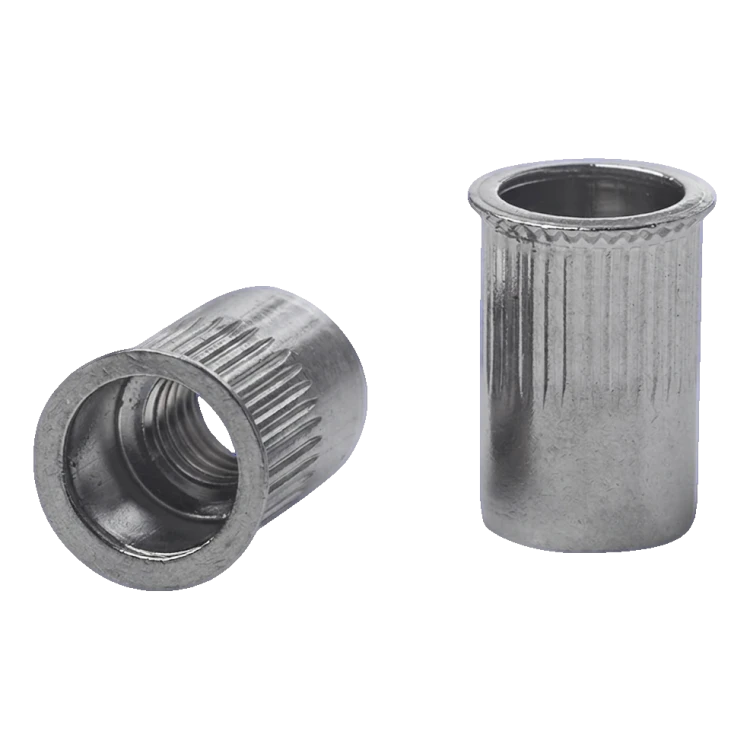

Through rivet nut M10 A2 – reduced countersunk flange, knurled, AISI 304
Description
Through riveting nut M10 A2 – reduced conical flange, knurled, AISI 304
Through riveting nut M10 made from AISI 304 (A2) stainless steel is a reliable mounting element that creates a metric thread in sheet metal and other thin-walled materials where conventional threading is impossible. Thanks to its through construction, it allows screws to be inserted completely through, significantly expanding the range of applications – from mounting balustrades, through steel constructions, to photovoltaic installations and façade elements.
Reduced conical flange with knurled shank ensures secure seating in the mounting hole – knurling prevents the riveting nut from rotating during tightening and operation, whilst the conical flange guarantees tight, uniform contact with the surface of the mounted element. This solution is particularly important when mounting balustrades and handrails, where connection stability directly affects user safety.
Made from AISI 304 stainless steel provides high corrosion resistance – the riveting nut will perform well both indoors and outdoors, in conditions exposed to moisture and varying temperatures. Installation is lightning-fast – requiring only a standard riveting nut tool, allowing installation companies to significantly accelerate project completion.
Technical specification
- Thread: M10
- Type: through
- Material: AISI 304 (A2) stainless steel
- Flange: reduced conical
- Shank: knurled
- Clamping range: 1.0–3.5 mm
- Weight: 0.005 kg
Application
The M10 A2 riveting nut finds wide application wherever it is necessary to create a permanent thread in thin-walled material – mounting stainless steel balustrades and handrails, fixing brackets and supports, connecting steel construction elements and external installations requiring corrosion resistance.
Technical data
| Material | A2 - stainless steel |
| Thread type | M10 |
