Through-hole rod holder fi19 mm flat mounted AISI304 satin finish
Description

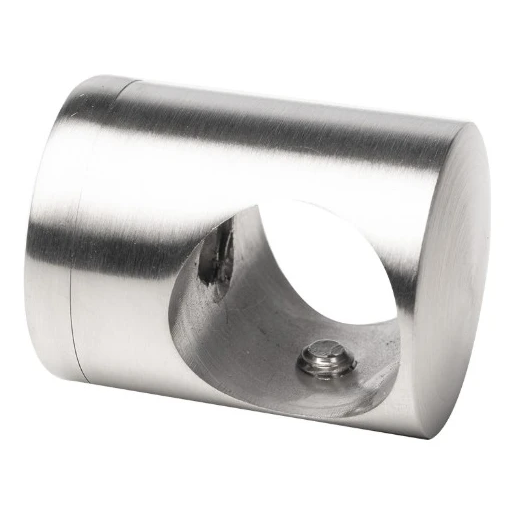

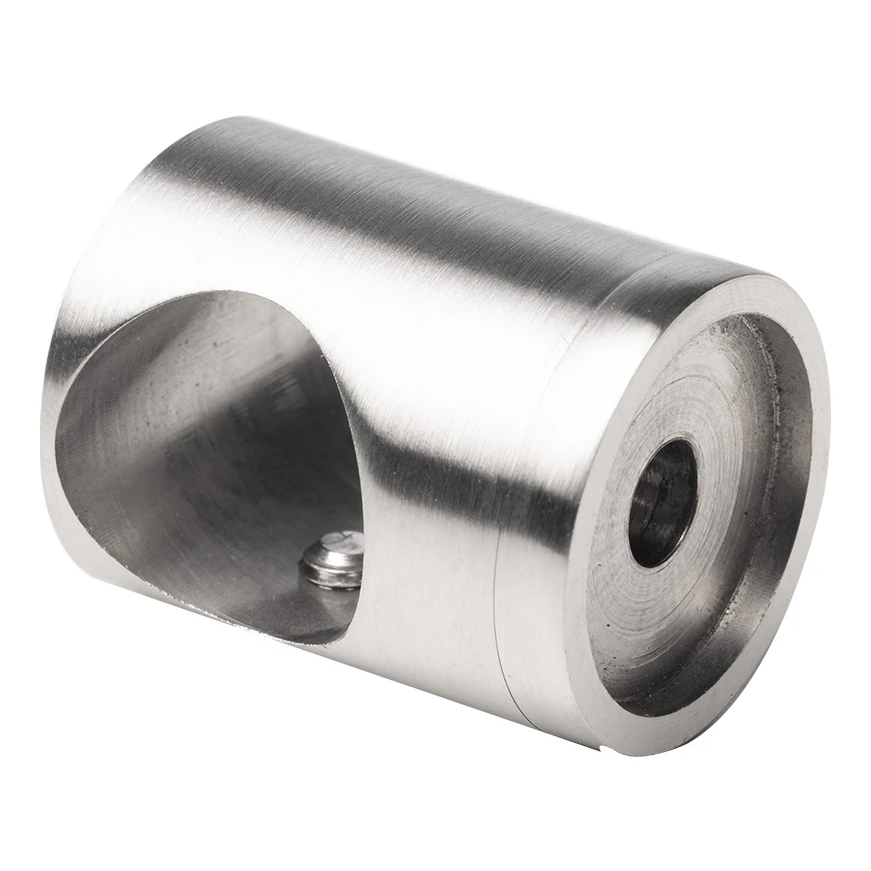

Pinox through-hole holder fi19 mm for flat surface – AISI 304 steel, satin finish
Pinox through-hole holder for fi 19 mm rod is a precisely manufactured mounting element designed for securing rods and tubes with a diameter of 19 mm to flat surfaces. Made from AISI 304 stainless steel with brushed finish (satin), it provides high corrosion resistance and a modern, elegant appearance — perfect for professional balustrade systems, handrails and stainless steel structures.
Thanks to the through-hole design the rod passes completely through the holder, ensuring stable and secure guidance of the element — significantly improving connection durability compared to clamping holders. Mounting is achieved using M6 thread to flat surfaces, making the element excellent for both balustrade posts and mounting to walls, worktops or glass panels.
Technical parameters
- Material: AISI 304 stainless steel
- Finish: satin (brushed)
- Holder diameter (external): 26 mm
- Through-hole diameter: 19.3 mm (designed for ø19 mm tubes/rods)
- Holder height: 33.6 mm
- Mounting system: flat (to flat surfaces)
- Mounting screw thread: M6
- Weight: 0.056 kg
- EAN: 5903313208147
Applications and advantages
The holder is designed for both internal and external applications. AISI 304 stainless steel guarantees years of resistance to atmospheric conditions, and the brushed satin finish perfectly complements modern glass and steel balustrade systems. The element is primarily used in:
- Balustrade systems with horizontal rod infill
- Handrails and barriers made from stainless steel
- Structures with glass panels
- Decorative and finishing elements in architecture
Compact dimensions and low weight (56 g) facilitate logistics and installation, resulting in faster completion of installation projects. Professional manufacture eliminates the need for additional machining — the element is ready for installation straight from the packaging.
Technical data
| Material | AISI 304 |
| Finish | Satin |
