Through handrail bracket 12mm dia. for 42.4mm tube - stainless steel AISI 304 satin
Description

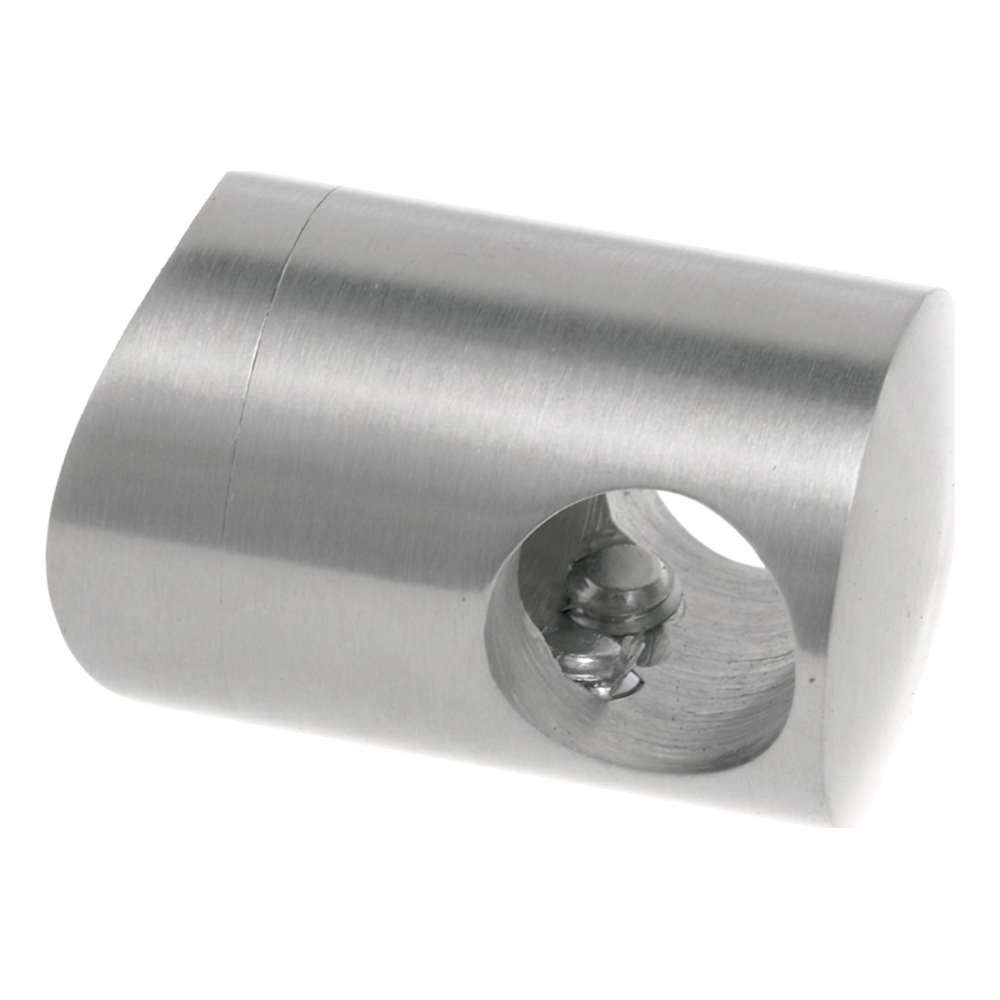

Through handrail bracket 12mm dia. for 42.4mm tube - stainless steel AISI 304 satin
Through bracket for connecting rods with 12mm diameter to support tube with 42.4mm diameter. Provides stability and required rigidity for the entire balustrade structure. Made from durable AISI 304 stainless steel with satin finish, guaranteeing aesthetic appearance and long-lasting corrosion resistance - ideal component for professional interior and exterior balustrade installations.
The bracket is mounted directly on the main balustrade tube and enables through routing of the infill rod, which significantly speeds up installation and makes it easier to achieve even, repeatable spacing between rods. Built-in grub screws ensure secure and permanent fixing of the rod within the bracket.

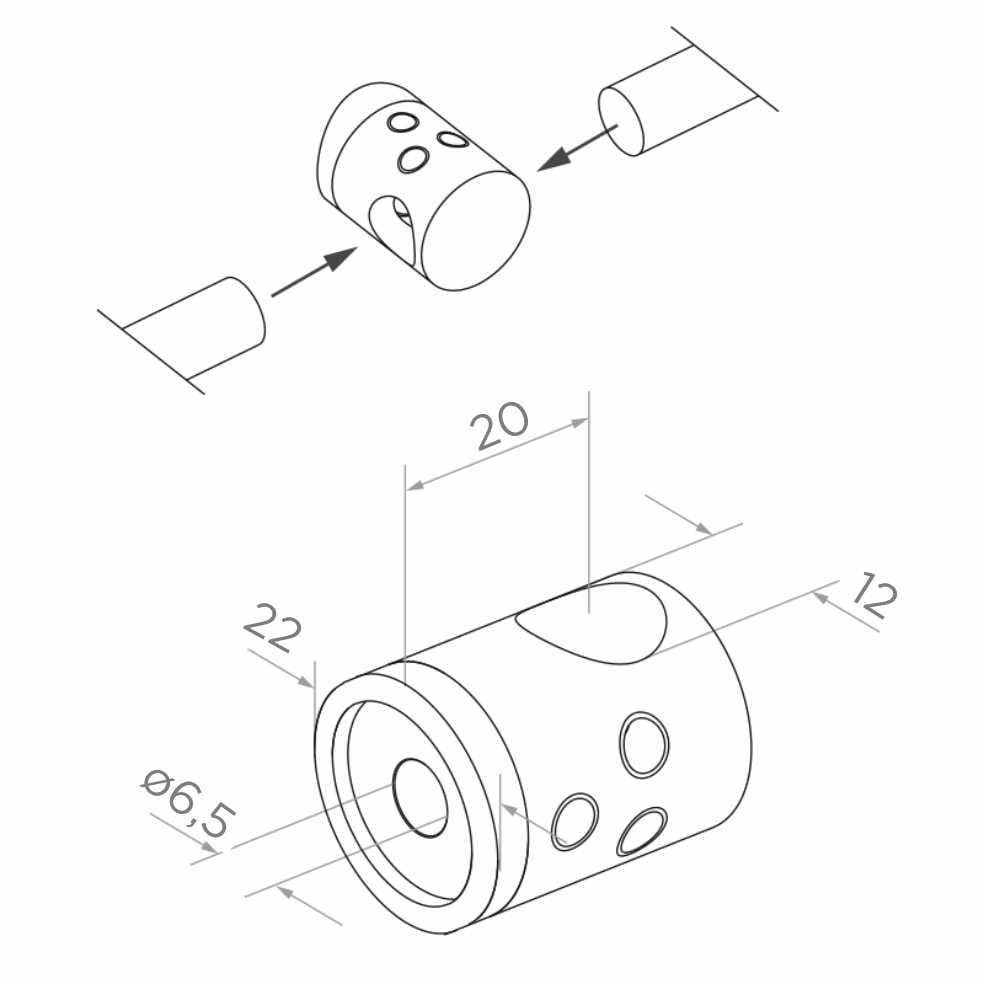

Dimensions and technical parameters
- Through hole diameter (for rod): 12mm
- External body diameter: 22mm
- Distance from base to through hole axis: 20mm
- Mounting hole diameter (tube fixing): 6.5mm
- Support tube system: 42.4mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.05kg
- EAN: 5901289671446
Application
The through bracket is designed for balustrade systems based on 42.4mm diameter support tube. It enables through routing of 12mm dia. infill rods - the rod passes completely through the bracket, allowing for quick and precise creation of balustrade infills. The satin finish harmoniously complements other brushed stainless steel components, ensuring a cohesive, modern appearance for the entire structure.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
