Through and point fixing bracket fi 16mm fi 25/30/M6x15 glass 6-11.52mm AISI304 satin
Description

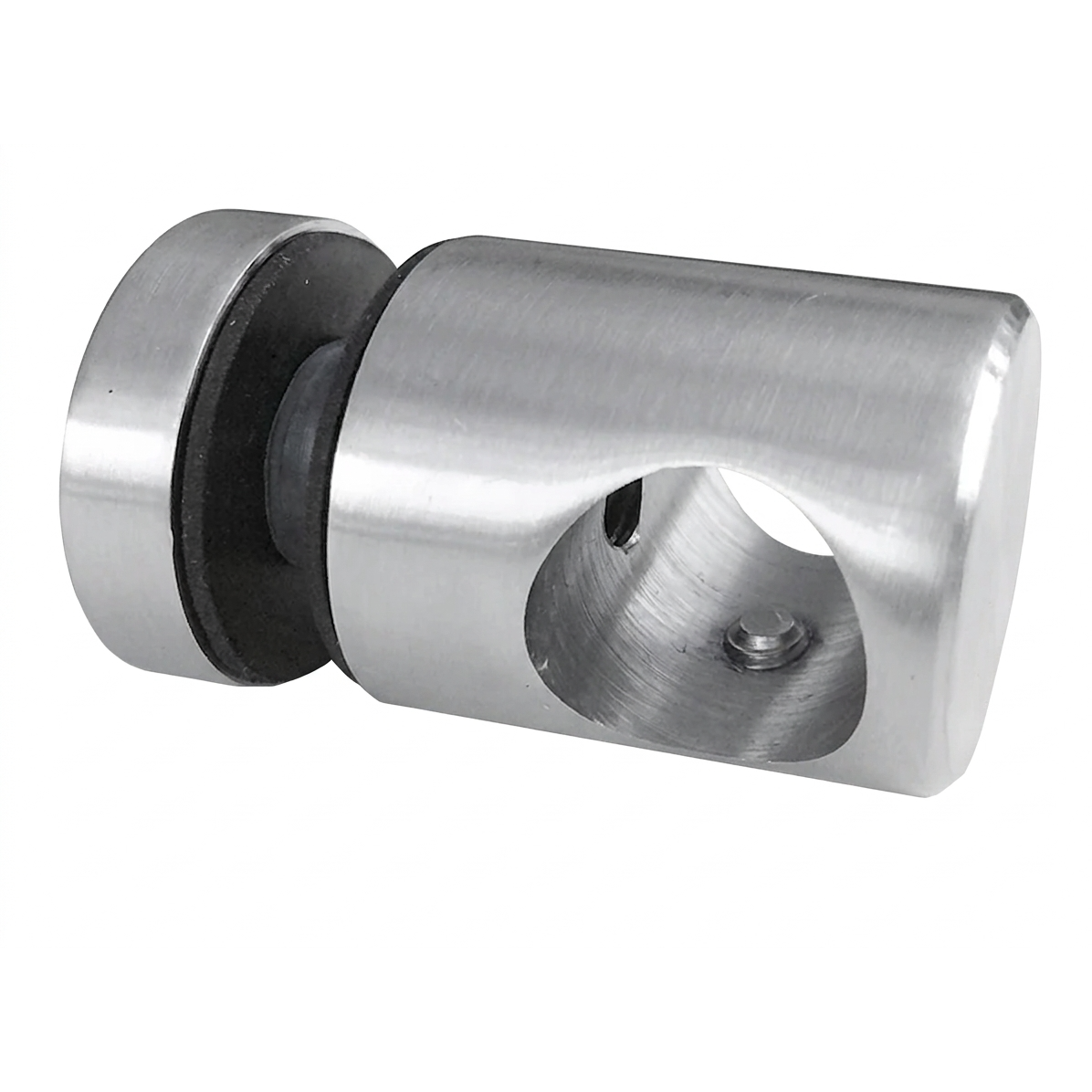

Through fixing bracket for fi 16 mm rod with point fixing bracket for glass
Through fixing bracket for fi 16 mm rod with point fixing bracket for glass is a robust connecting element, designed for professional installation of balustrades with glass or rod infill. It enables secure connection of through rods with glass, giving the balustrade structure appropriate rigidity and an aesthetic, modern appearance.
Made from AISI 304 stainless steel with satin finish, the bracket provides high corrosion resistance and weather resistance, making it suitable for both internal and external applications. The satin surface gives balustrade details an elegant, understated character that harmonises with modern architectural arrangements.
The bracket is fixed using M6 thread, enabling quick and secure installation without the need for specialist tools. The universal design allows use in various steel balustrade configurations – on staircases, balconies, and terraces alike.
Dimensions and technical parameters
- Rod hole diameter: fi 16 mm (through)
- External body diameter: fi 25 mm
- Body length (from rod axis to glass slot edge): 18 mm
- Glass thickness accommodated: 6–11.52 mm
- Fixing thread: M6 × 15
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: universal
- Weight: 0.11 kg
- EAN: 5903313203494
Application and installation
The bracket is mounted on a steel balustrade post and serves to connect infill elements – rods and glass panels. The fi 16 mm rod passes through the through hole, whilst glass with thickness from 6 to 11.52 mm is point-fixed in the bracket using M6 thread. Rubber seals protect the glass from mechanical damage and compensate for differences in panel thickness. Thanks to compact dimensions and lightweight construction (110 g), the bracket does not excessively load the posts, whilst ensuring solid and durable connection of balustrade elements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-11,52 |
