Through Rivet Nut M6 A2 AISI 304 – Reduced Conical Flange, Knurled
Description

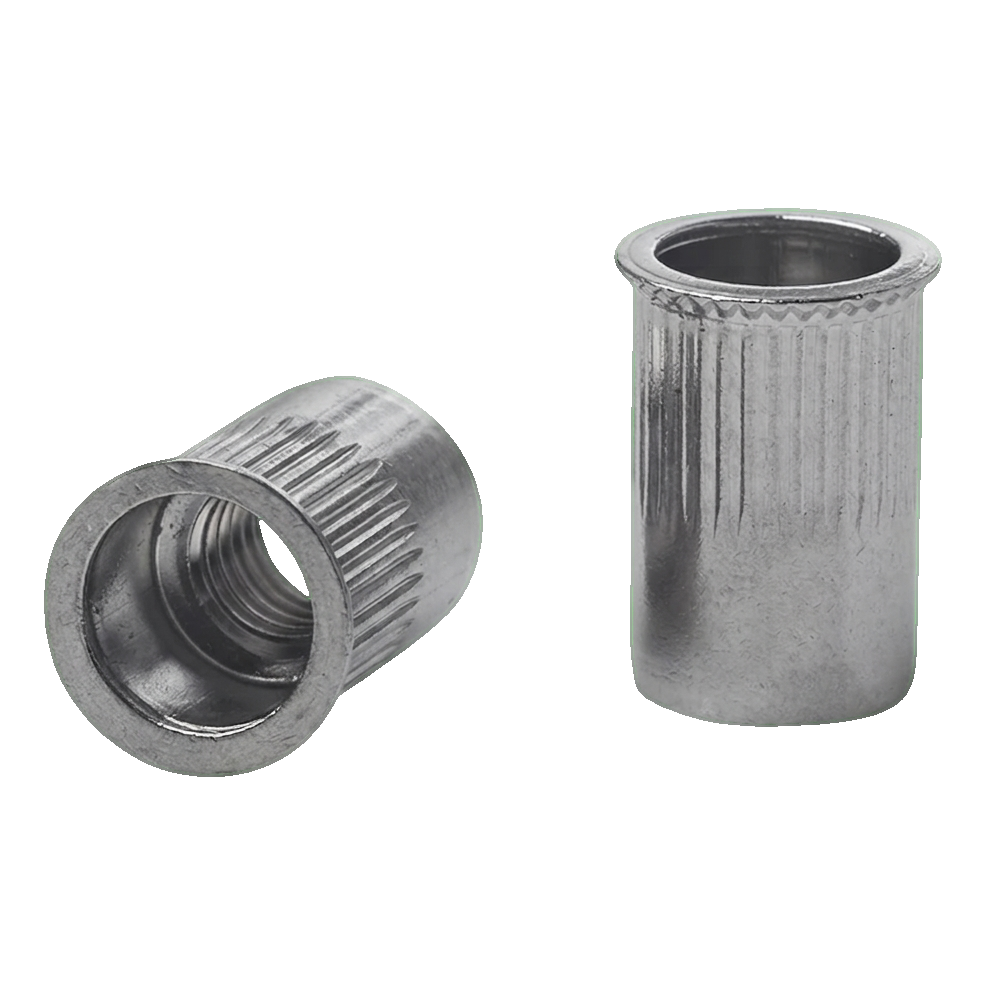

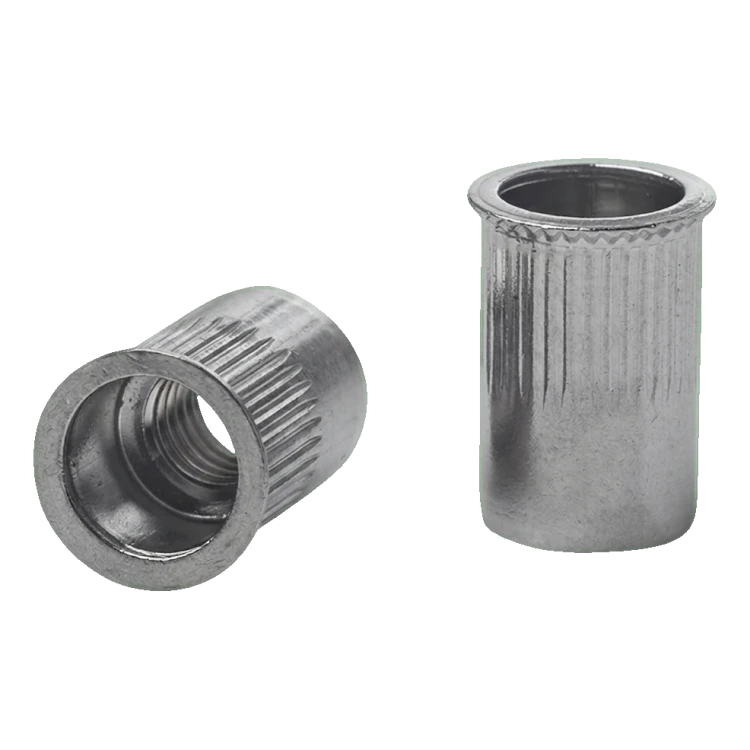

M6 A2 AISI 304 through rivet nut – reduced conical flange, knurled
M6 through rivet nut made from stainless steel AISI 304 (A2) is a reliable mounting element that enables the creation of metric threads in sheet metal and thin-walled materials where conventional threading is impossible. Thanks to the through design, the screw can be inserted from either side, providing complete freedom in connection configuration.
The reduced conical flange with knurled shank ensures strong, stable and tight contact with the mounted element. The knurling effectively prevents the rivet nut from rotating in the mounting hole, which translates to durability and reliability of each connection. Installation is exceptionally quick — a rivet nut tool is all that's needed to achieve a ready thread in the base material within seconds.
Construction from stainless steel AISI 304 guarantees high corrosion resistance, making this rivet nut an ideal choice for external applications — mounting balustrades, steel structures, façade elements and installations exposed to moisture and atmospheric conditions.
Technical parameters
- Thread: M6
- Type: through
- Material: stainless steel AISI 304 (A2)
- Flange: reduced conical
- Shank: knurled
- Thickness range of joined materials: 0.5–3.0 mm
- Weight: 0.005 kg
- EAN: 4050128568230
Application
The M6 A2 rivet nut finds wide application wherever quick and reliable thread creation in thin-walled materials is required. Particularly recommended for mounting balustrades, handrails, posts and other mounting accessories in stainless steel and aluminium structures. It also performs well when mounting photovoltaic elements, façade structures and all connections exposed to external conditions.
Technical data
| Material | A2 - stainless steel |
| Thread type | M6 |
