Strap hinge pivot for embedding FI 18 mm – pin for leaf gates
0
Description
Strap hinge pivot for embedding FI 18 mm – pin for leaf gates

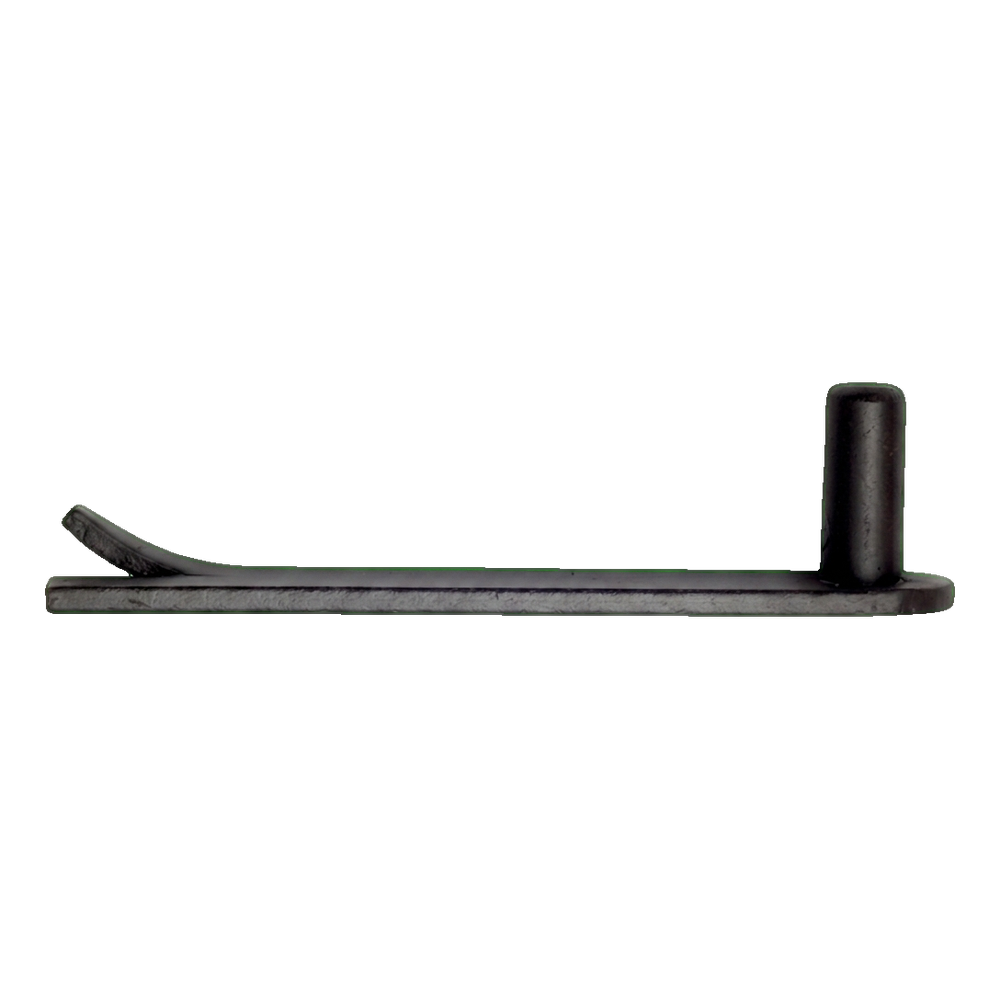

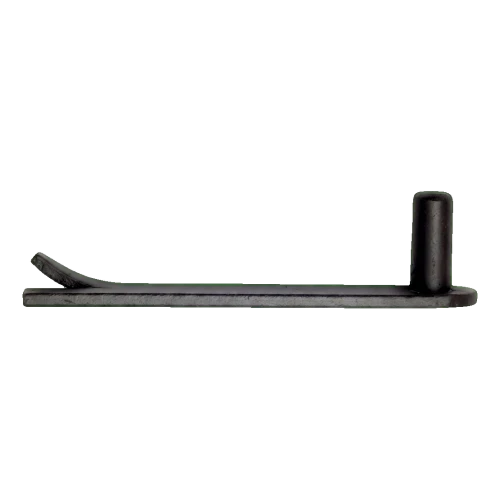

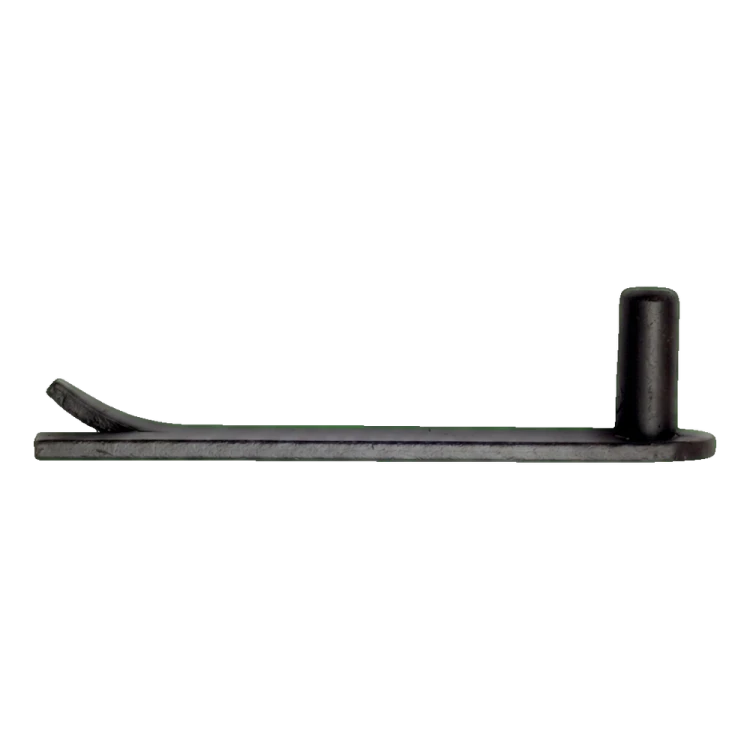

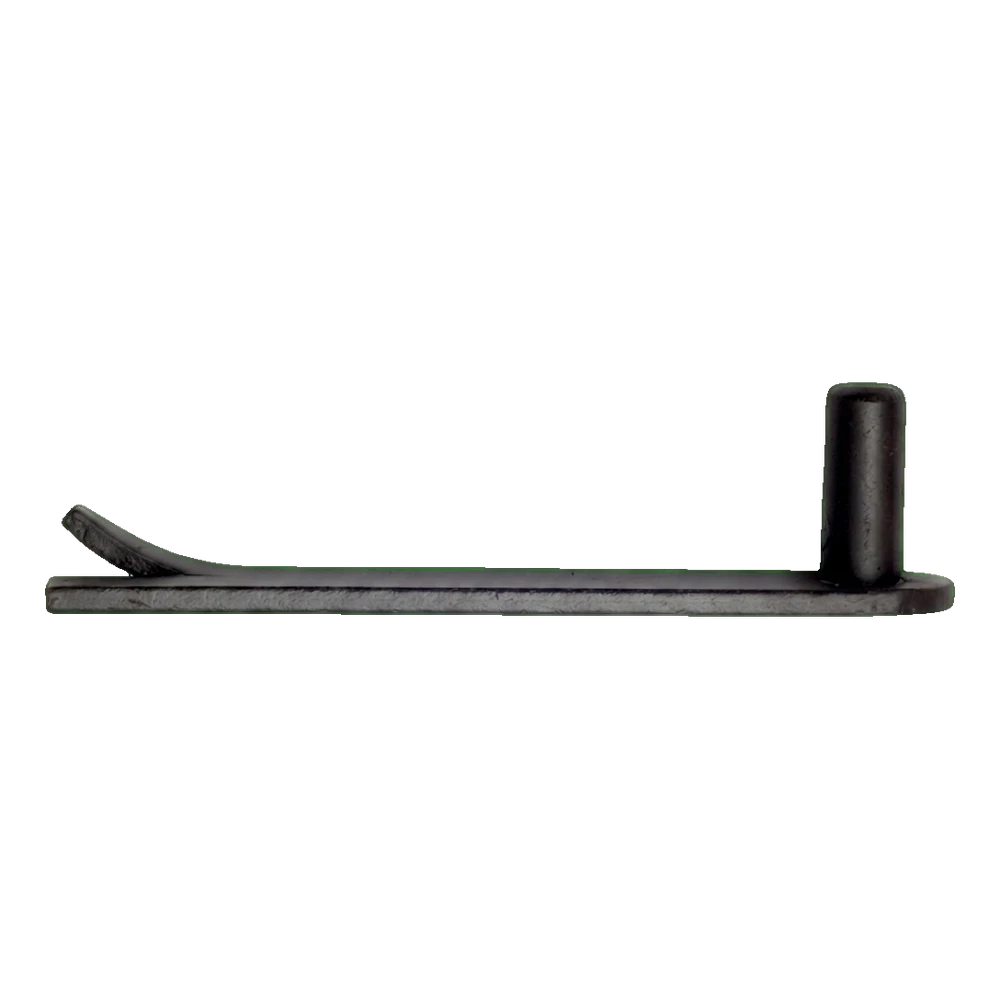

Strap hinge pivot (pin) for embedding — a solid steel element designed for mounting strap hinges in leaf gates. The flat base with anchoring bend ensures permanent embedding in a masonry or concrete post, whilst the cylindrical pin with a diameter of 18 mm serves as the rotation axis for the gate leaf.
The pivot is dedicated for use in fencing and gates where the hinge must be permanently embedded into the post structure. The bent end of the base acts as mechanical anchoring — once set in mortar or concrete, the element is resistant to pull-out, which translates to years of trouble-free gate operation.
Technical specifications
- Pin diameter (FI): 18 mm
- Pin height (H): 40 mm
- Base length (L): 200 mm
- Weight: 0.44 kg
- Colour: black
- Material: steel
- Installation method: for embedding
- Application: strap hinges for leaf gates
- EAN: 5901431940703
Application and installation
The pivot is embedded in the gate post during masonry or concreting — the flat base with bent end is embedded in mortar, whilst the pin protrudes outwards, forming the hinge axis. A sleeve from a strap hinge attached to the gate leaf is then fitted onto the pin. Thanks to the 18 mm diameter, the element is compatible with standard strap hinges used in leaf gates for residential and industrial fencing.
Technical data
| Diameter | 18 |
| Sposób montażu | Wall-Embedded |
| Material | Steel |
