Strap hinge pin FI 18 mm for gate leaves – bolt-on type
0
Description
Strap hinge pin FI 18 mm for gate leaves – bolt-on type

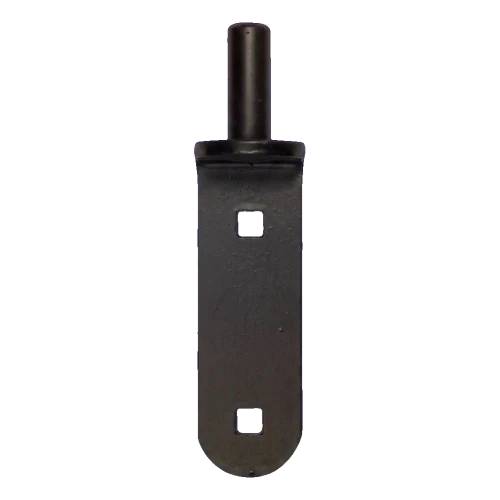

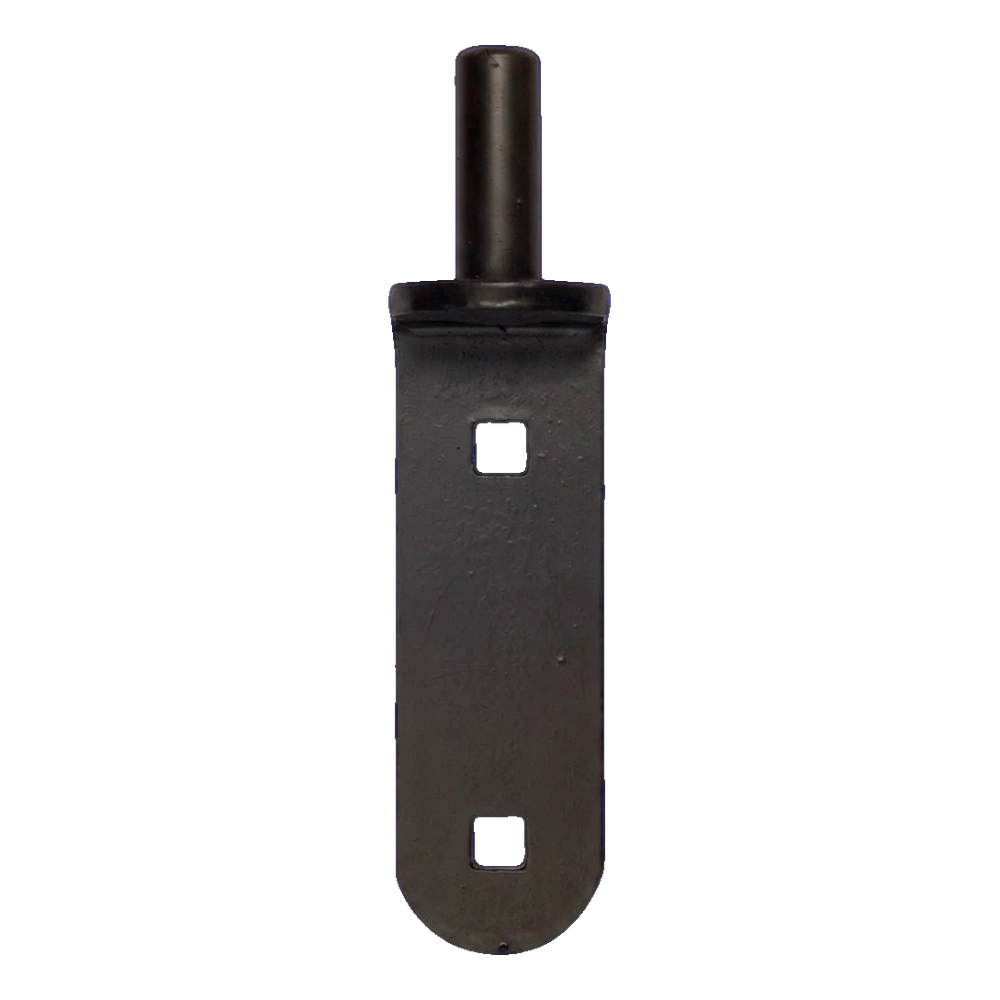

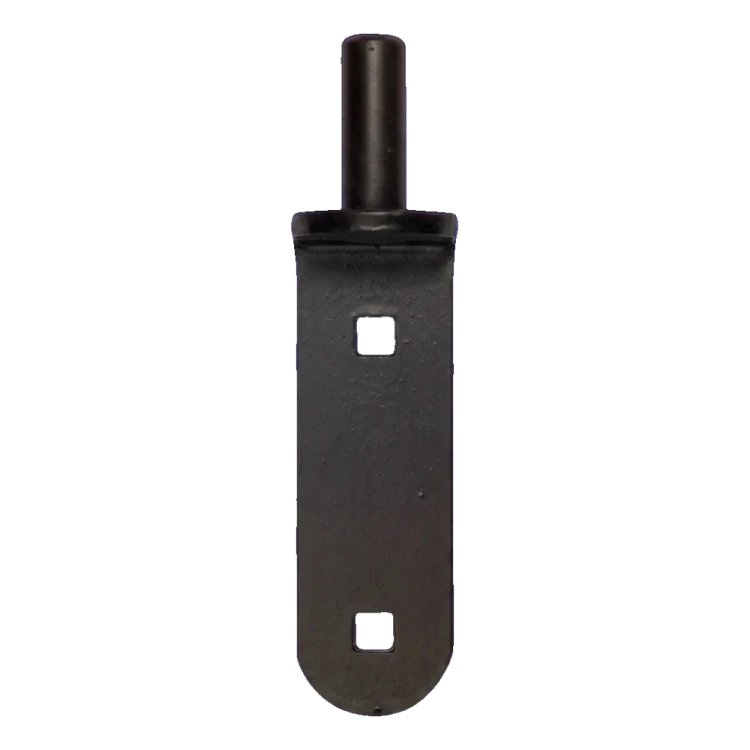

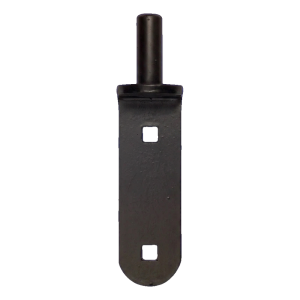

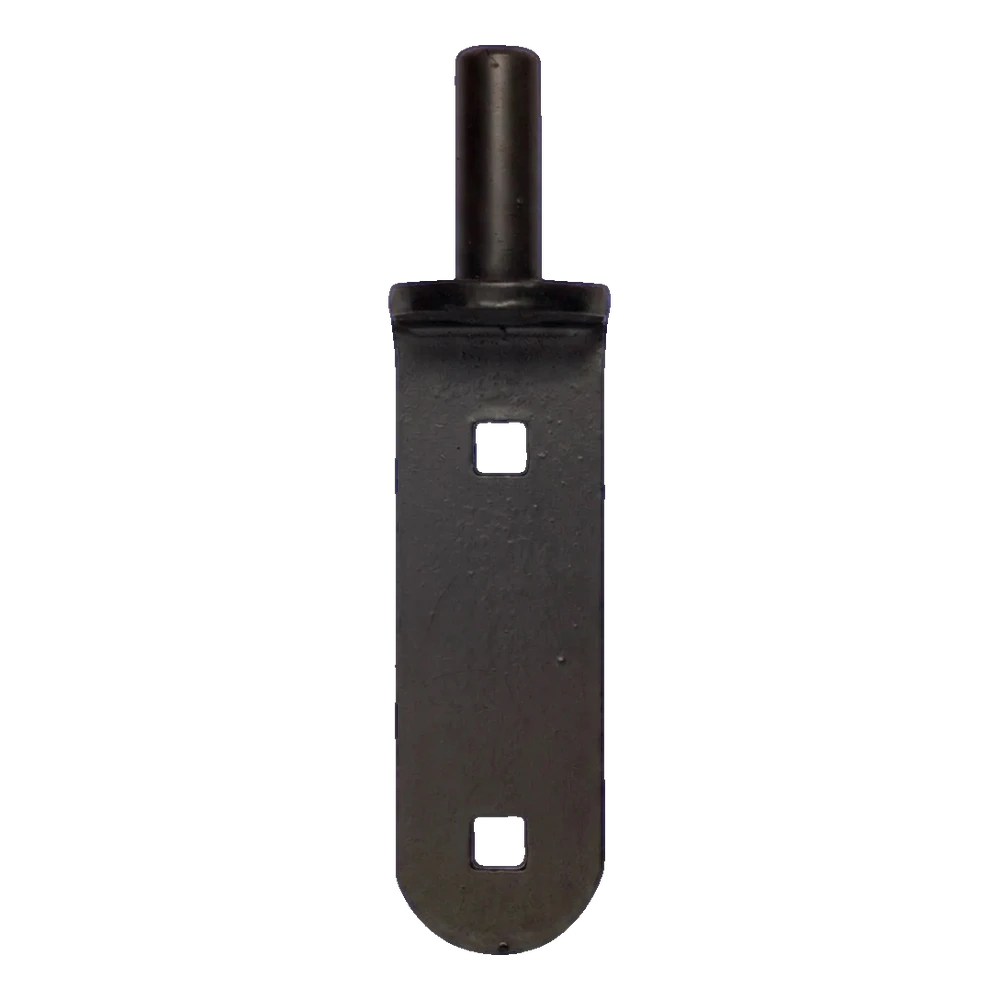

Strap hinge pin (spindle) designed for gate leaves and wicket gates. Element mounted by bolting to the post or gate frame using two 10.4 mm square holes. Angular construction with massive mounting plate and pin with diameter 18 mm ensures durable and stable suspension of the gate leaf.
The pin is made from black steel, which ensures high mechanical resistance and aesthetic appearance that harmonises with fencing and gates in dark colours. The angular profile allows flat mounting to the post — the pin projects perpendicularly, creating a rotation axis for the strap hinge. Two square mounting holes allow for quick and secure bolting of the element, which significantly speeds up installation work on site.

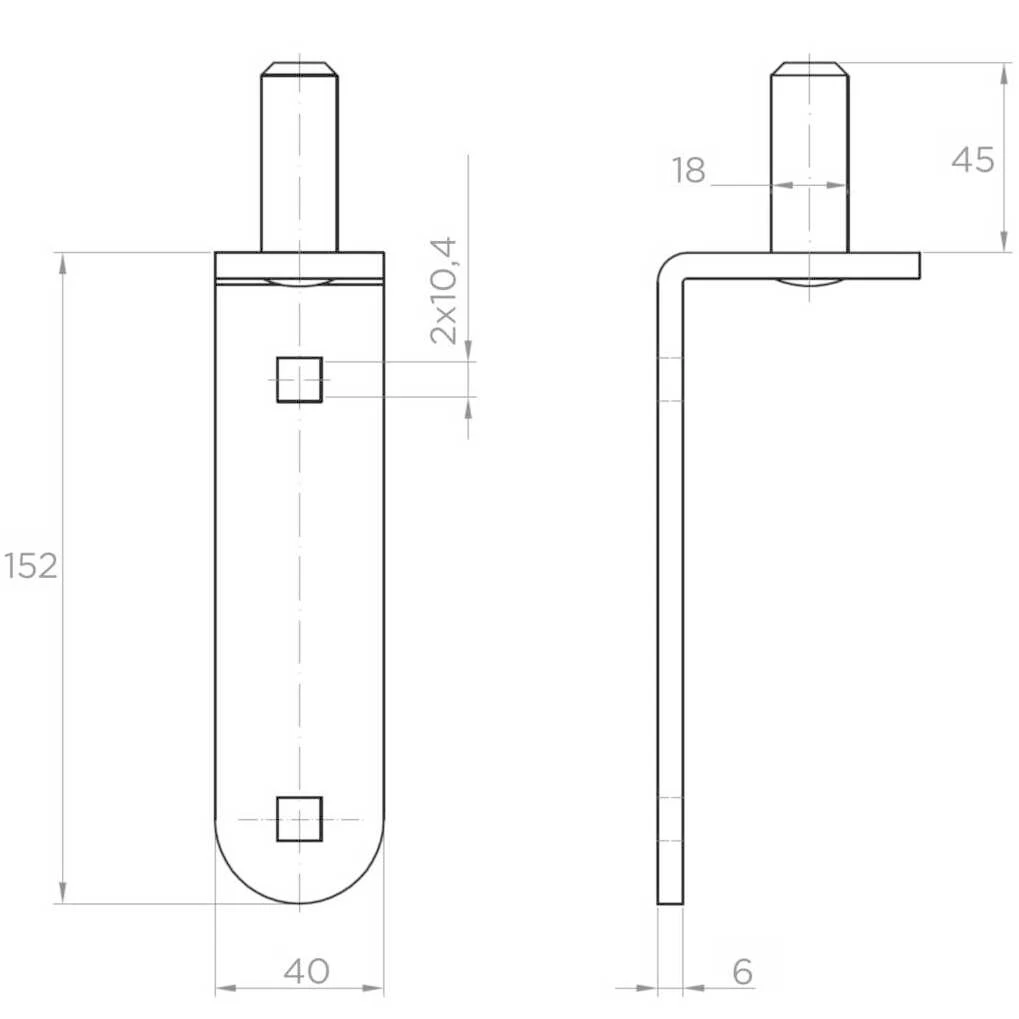

Dimensions and technical parameters
- Pin (spindle) diameter: FI 18 mm
- Working height of pin: 45 mm
- Mounting plate height: 152 mm
- Mounting plate width: 40 mm
- Material thickness (sheet): 6 mm
- Mounting holes: 2 × 10.4 mm (square)
- Total element length: 199 mm
- Colour: black
- Weight: 0.45 kg
- EAN: 5901431940710
Application
The pin is designed for strap hinges used in gate leaves, wicket gates and fencing. It provides the lower or upper pivot point for the gate leaf. Combined with the appropriate strap hinge, it creates a complete, durable suspension system. Bolt-on mounting allows for easy replacement or adjustment without the need for welding — an ideal solution for both new installations and servicing existing gates.
Technical data
| Diameter | 18 |
| Sposób montażu | Bolt-On |
| Material | Steel |
