Steel sliding rail – C-channel for sliding gates 60×60 mm, length 6000 mm
Leave feedback on the product
Steel sliding rail C-channel 60×60 mm for sliding gates. Length 6000 mm, wall thickness 3 mm, weight 26.1 kg. Ungalvanised steel with bottom guide slot 20.5 mm. C-profile for trolley wheels.
Product code: 001-291
Description
Steel sliding rail – C-channel for sliding gates 60×60 mm, length 6000 mm

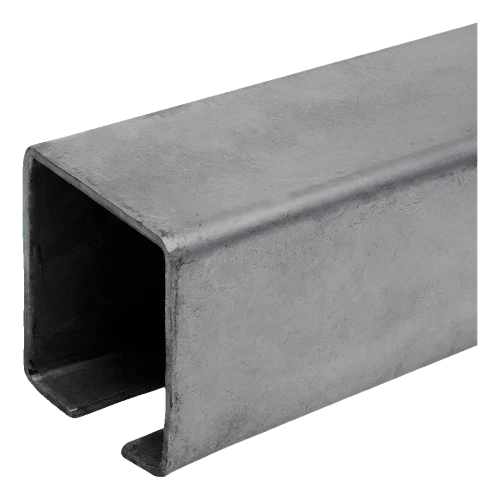

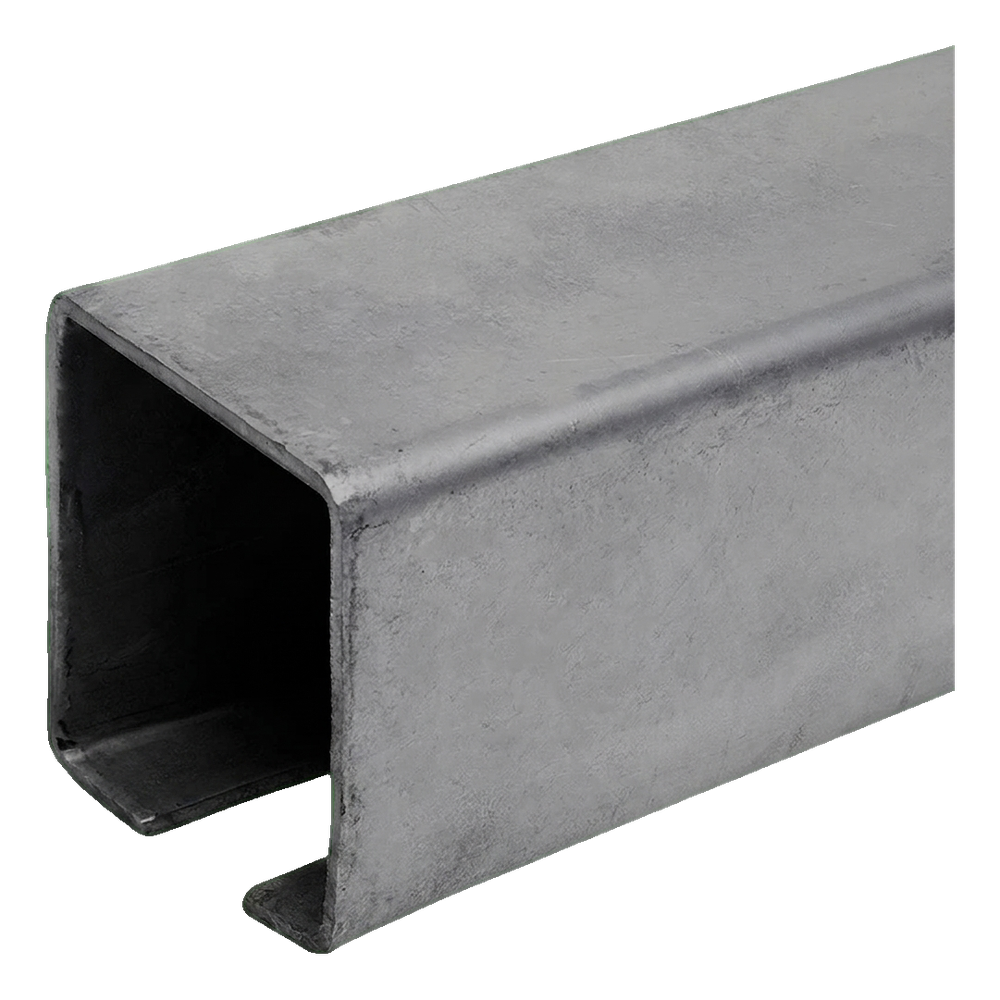

Steel sliding rail (C-channel) 60×60 mm designed for cantilever sliding gates. The profile with a length of 6 metres is a key structural element supporting the gate leaf — it slides on trolley rollers, ensuring smooth and stable system operation. The C-channel is made from steel in an ungalvanised version, allowing for independent corrosion protection tailored to the conditions of the specific installation.
The C-profile with bottom guide slot enables secure mounting on trolley wheels. Wall thickness of 3 mm guarantees high mechanical strength whilst maintaining optimal weight — the 6 m long C-channel weighs 26.1 kg, which facilitates transport and installation by a two-person installation team. The rail is suitable for both standard and oversized gates.

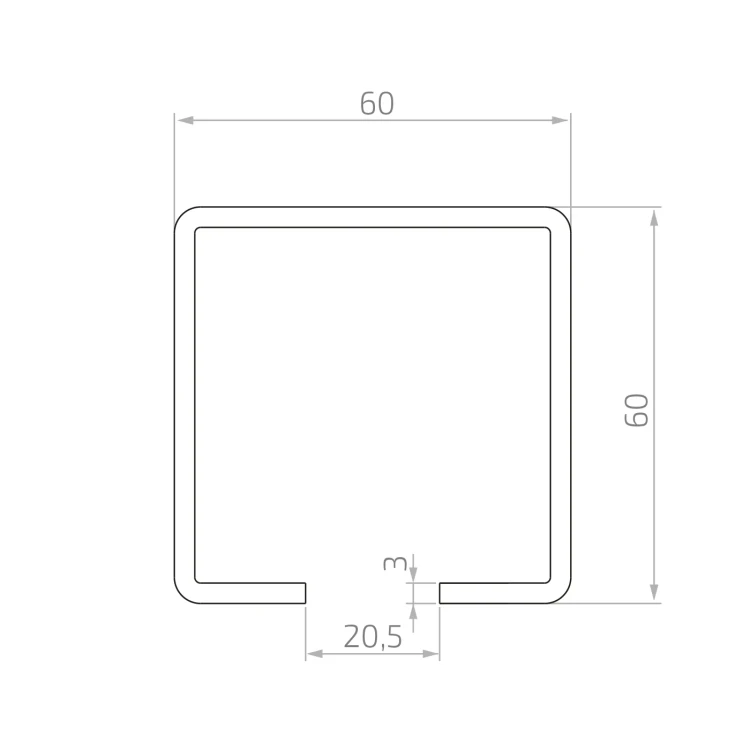

Cross-sectional dimensions
- External width: 60 mm
- External height: 60 mm
- Wall thickness: 3 mm
- Bottom slot width: 20.5 mm
General specifications
- Profile length: 6000 mm
- Material: steel (ungalvanised)
- Weight: 26.1 kg
- Application: cantilever sliding gates
- Profile type: C-channel (C-profile with bottom guide slot)
The rail requires corrosion protection before installation — powder coating, galvanising or other protective coating selected according to environmental conditions. Thanks to the ungalvanised version, the installer has complete freedom in choosing the method and colour of protection, which is important for gates colour-matched to the fencing.
