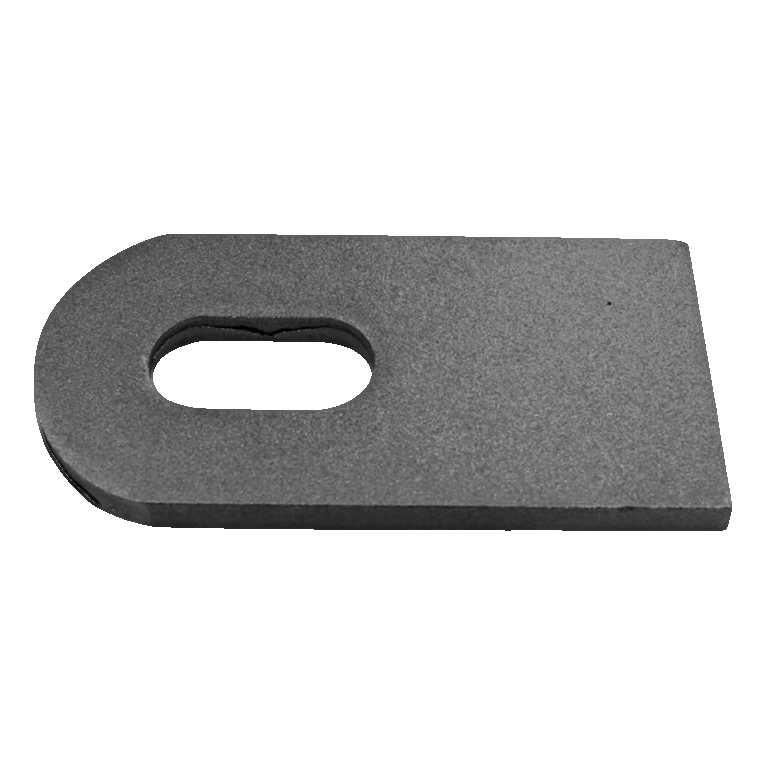

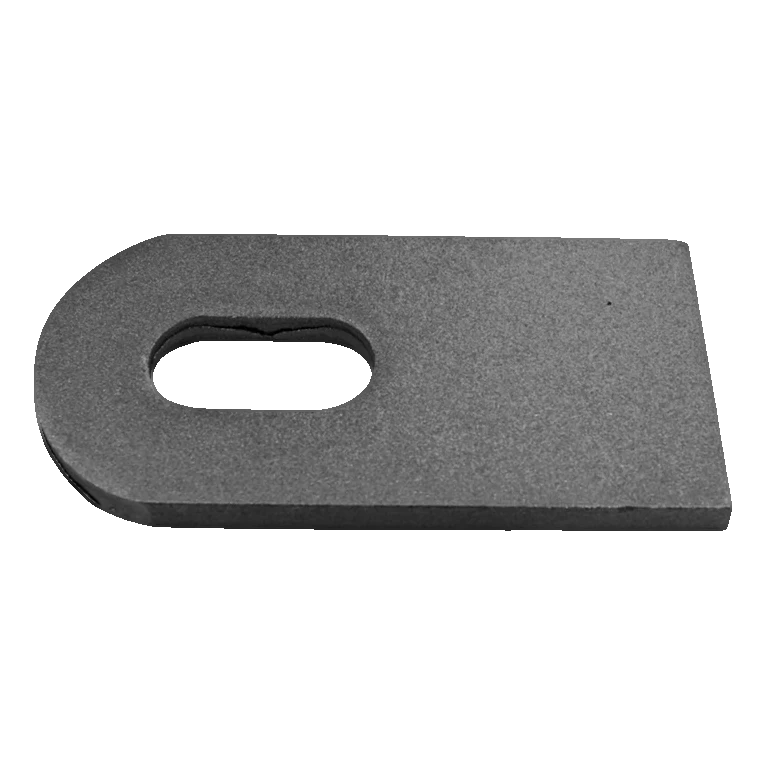

Steel Connector L120 for Gate Hinge M18 – 180° Opening
Steel connector L120 designed for gate hinges with M18 thread. Thanks to its robust construction from 8 mm thick sheet metal, it provides a durable and stable connection between the hinge and gate or wicket, enabling full wing opening at 180° angle. The slotted hole in the connector provides 70–90 mm adjustment range, allowing precise positioning of the wing relative to the post – without the need for re-drilling holes.
The element is an essential component when installing swing gates and wickets on M18 screw hinges. Its simple form and solid construction guarantee quick installation and years of trouble-free operation.

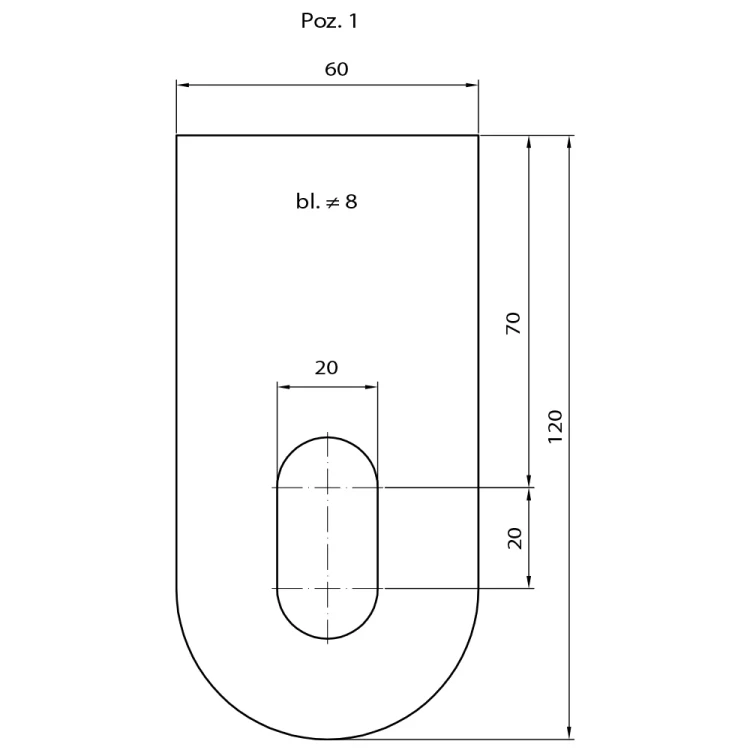

Connector dimensions
- Length (L): 120 mm
- Height: 60 mm
- Sheet thickness: 8 mm
- Slotted hole (width): 20 mm
- Adjustment range in hole: 70–90 mm
- Hinge thread: M18
Application and installation method

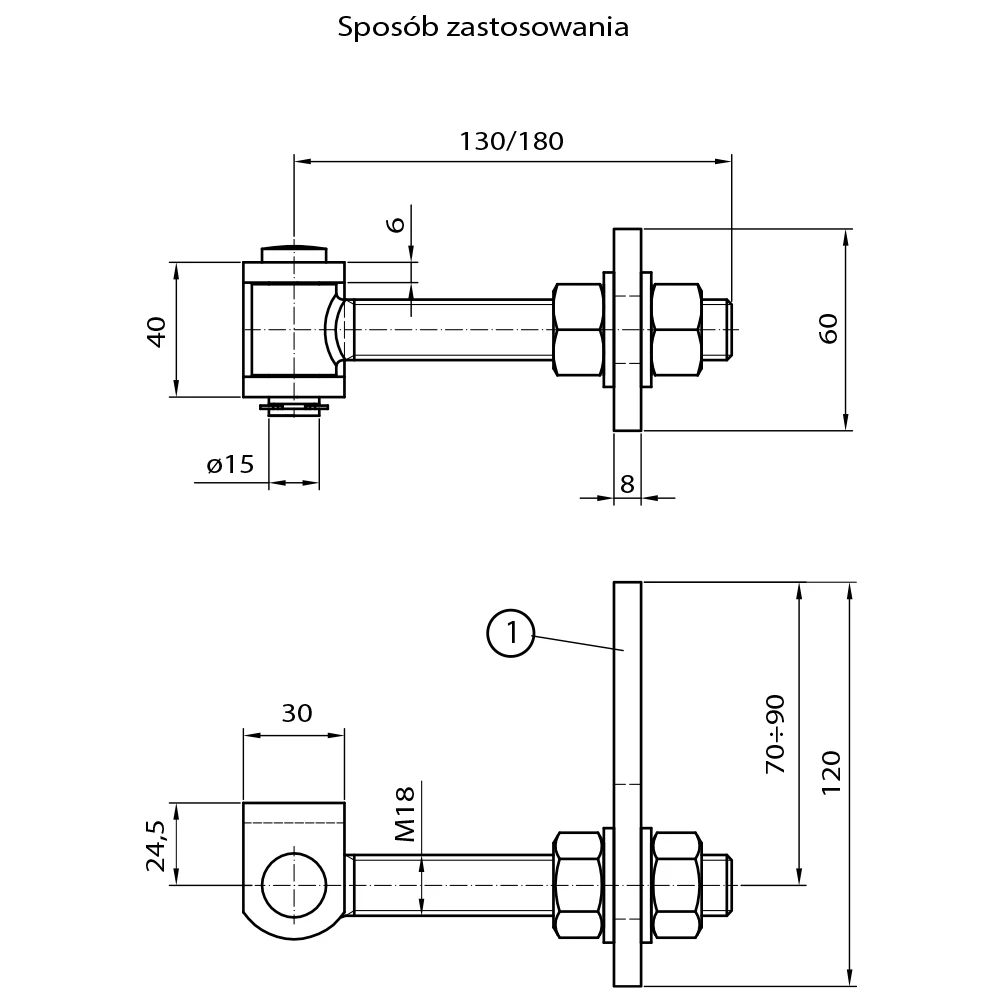

The connector is mounted on the gate or wicket wing, and the M18 hinge pin passes through the slotted hole and is secured with nuts on both sides. The application diagram shows two variants of pin length (130 mm or 180 mm), allowing selection of the appropriate hinge for the thickness of the post or frame. The hinge sleeve (height 40 mm, pin Ø15 mm) is welded to the post, and the connector with slotted hole enables smooth adjustment of wing positioning.
Technical specifications
- Material: steel
- Sheet thickness: 8 mm
- Connector length: 120 mm
- Connector height: 60 mm
- Hinge thread: M18
- Slotted hole dimensions: 20 × 40 mm (width × length)
- Adjustment range: 70–90 mm
- Wing opening angle: 180°
- Weight: 0.38 kg
- EAN: 99917867
The connector is compatible with M18 screw hinges with pin length of 130 mm or 180 mm. An ideal element for professional installation of swing gates and wickets in fencing systems.
Technical data
| Mounting Method | Wall-Embedded |
| Thread type | M18 |
| Diameter | 12 |
| Material | Steel |
