Stainless steel AISI 304 glass gate latch ø20 mm satin finish – screw-in mounting
0
Description

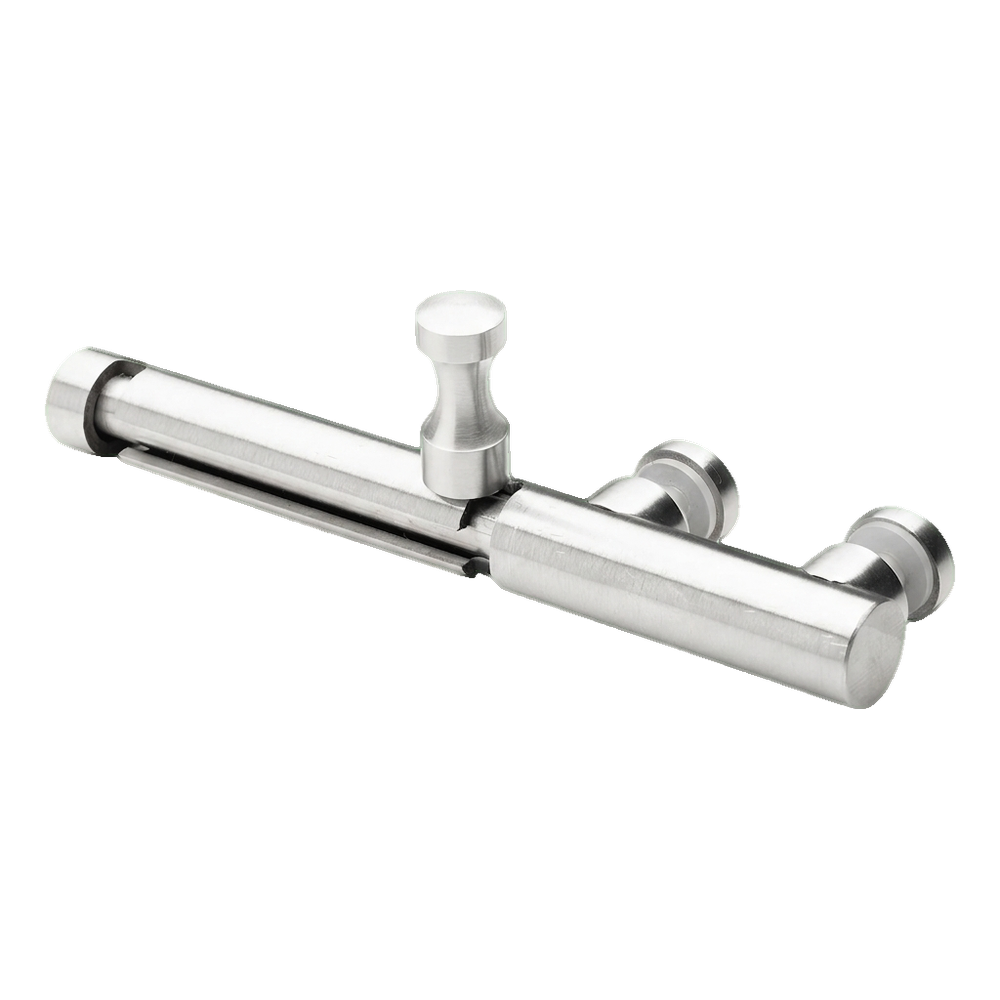

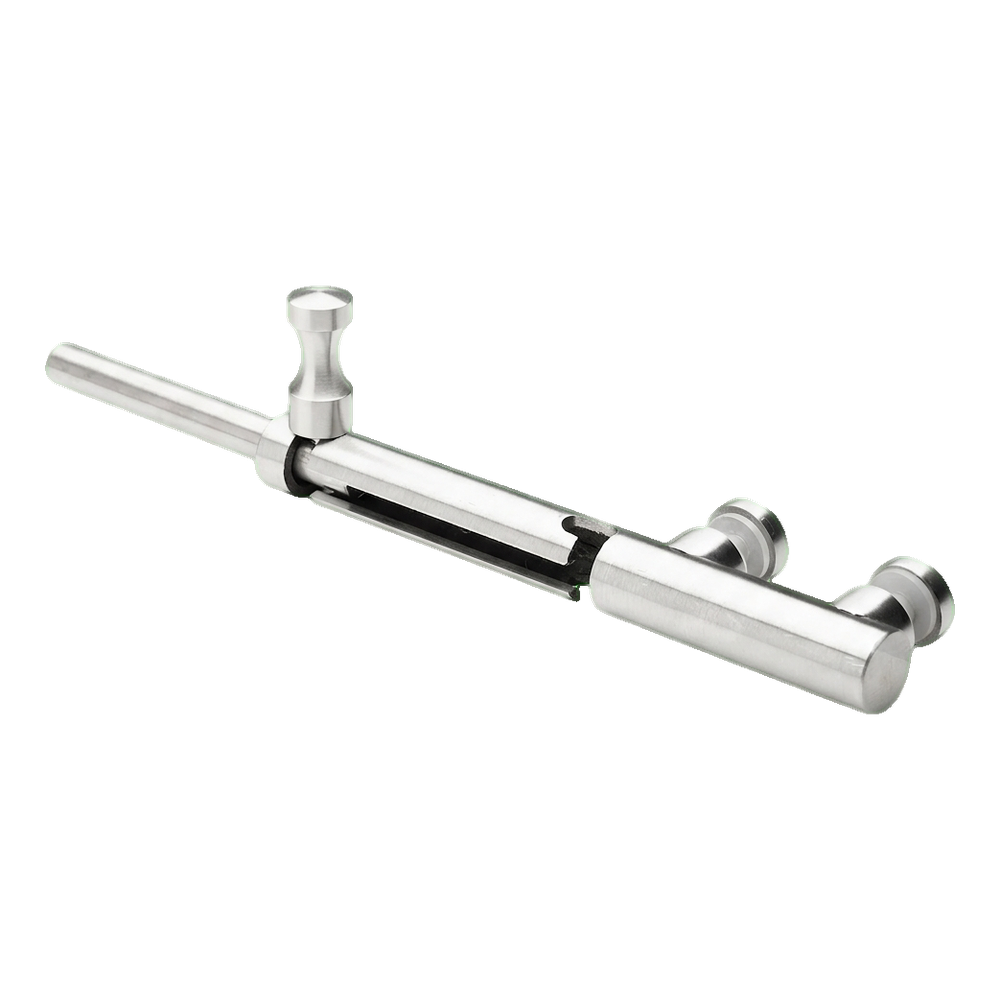

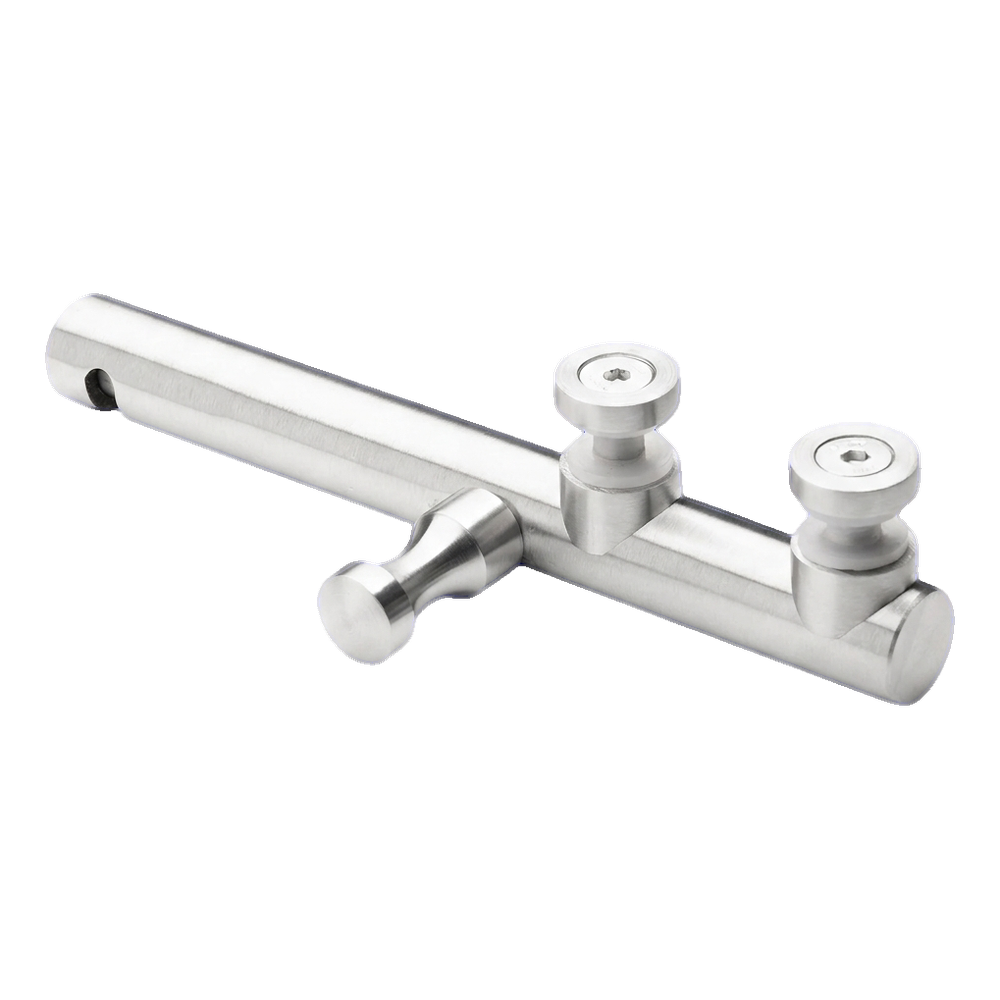

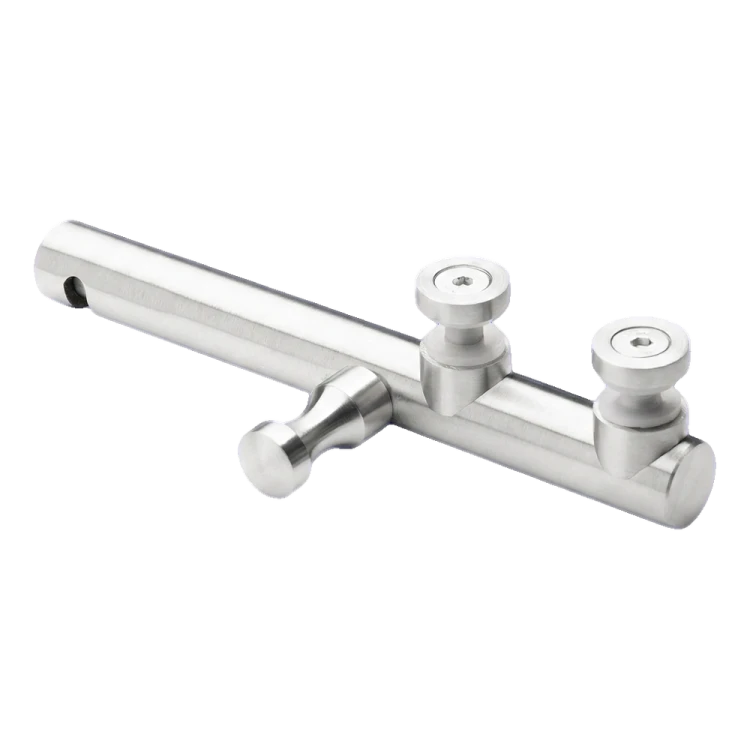

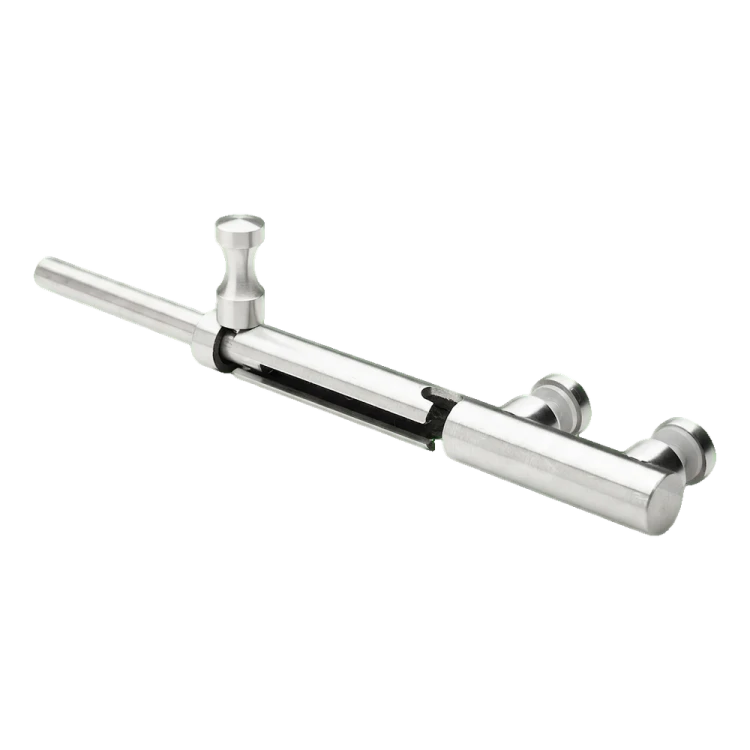

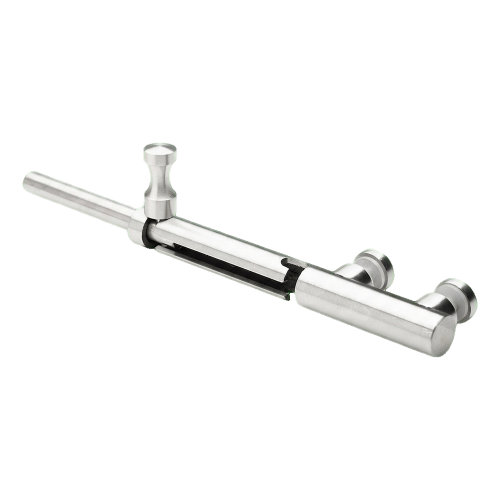

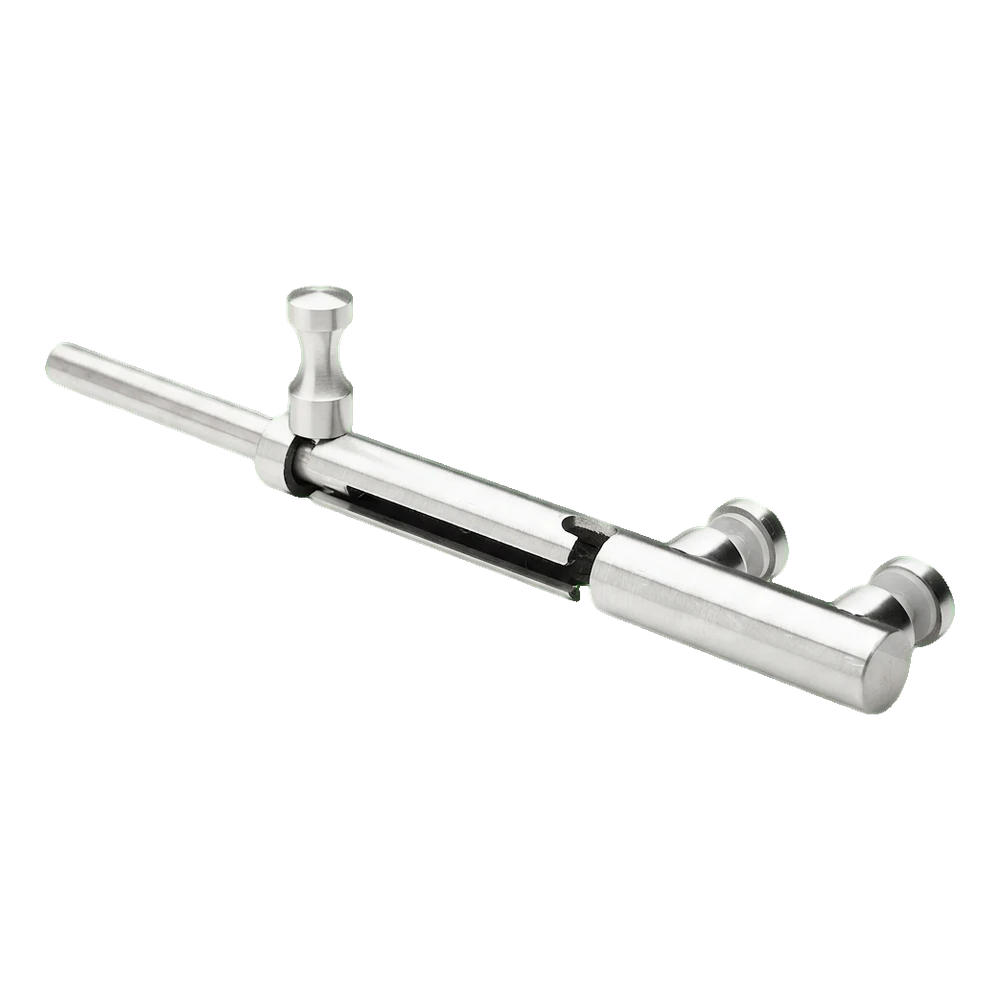

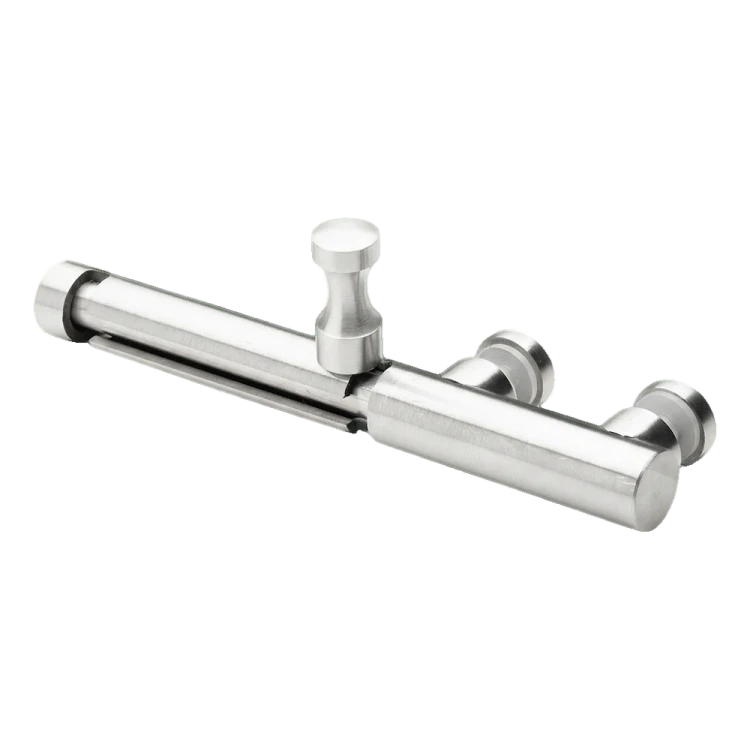

Steel bolt for glass gate AISI 304 ø20 mm satin – screw-in mounting
Steel bolt for glass gate made from stainless steel AISI 304 with satin finish. A robust and aesthetic locking solution designed for glass balustrade gates — provides durable, secure closure whilst maintaining a modern, minimalist appearance.
The body with a diameter of 20 mm and total length of 177 mm is made from a single grade of stainless steel, which guarantees uniform corrosion resistance — even in outdoor conditions and in rooms with increased humidity (swimming pools, bathrooms, terraces). The satin surface finish gives the bolt an elegant character and facilitates maintenance.
Universal mounting system allows the bolt to be used with tempered and laminated glass with thickness from 10 to 12.76 mm. Mounting is achieved by screwing in — two mounting points with decorative caps ø20 mm ensure stable installation on the glass panel.
Technical specification
- Product type: glass gate bolt
- Material: stainless steel AISI 304
- Finish: satin
- Mounting system: universal, screw-in
- Body diameter: ø20 mm
- Total body length: 177 mm
- Height (thickness): 20 mm
- Width: 55 mm
- Bolt pin extension: 80 mm
- Bolt pin diameter: ø12.5 mm
- Glass thickness range: 10–12.76 mm
- Mounting centres spacing: 45 mm
- Body axis distance from glass: 12 mm
- Mounting pin diameter: ø8 mm
- Mounting caps/washers diameter: ø20 mm
- Handle diameter: ø16 mm
- Handle length: 35 mm
- Guide slot width: 7 mm
- Weight: 0.16 kg
- EAN: 5903313205146
Dimensions and construction

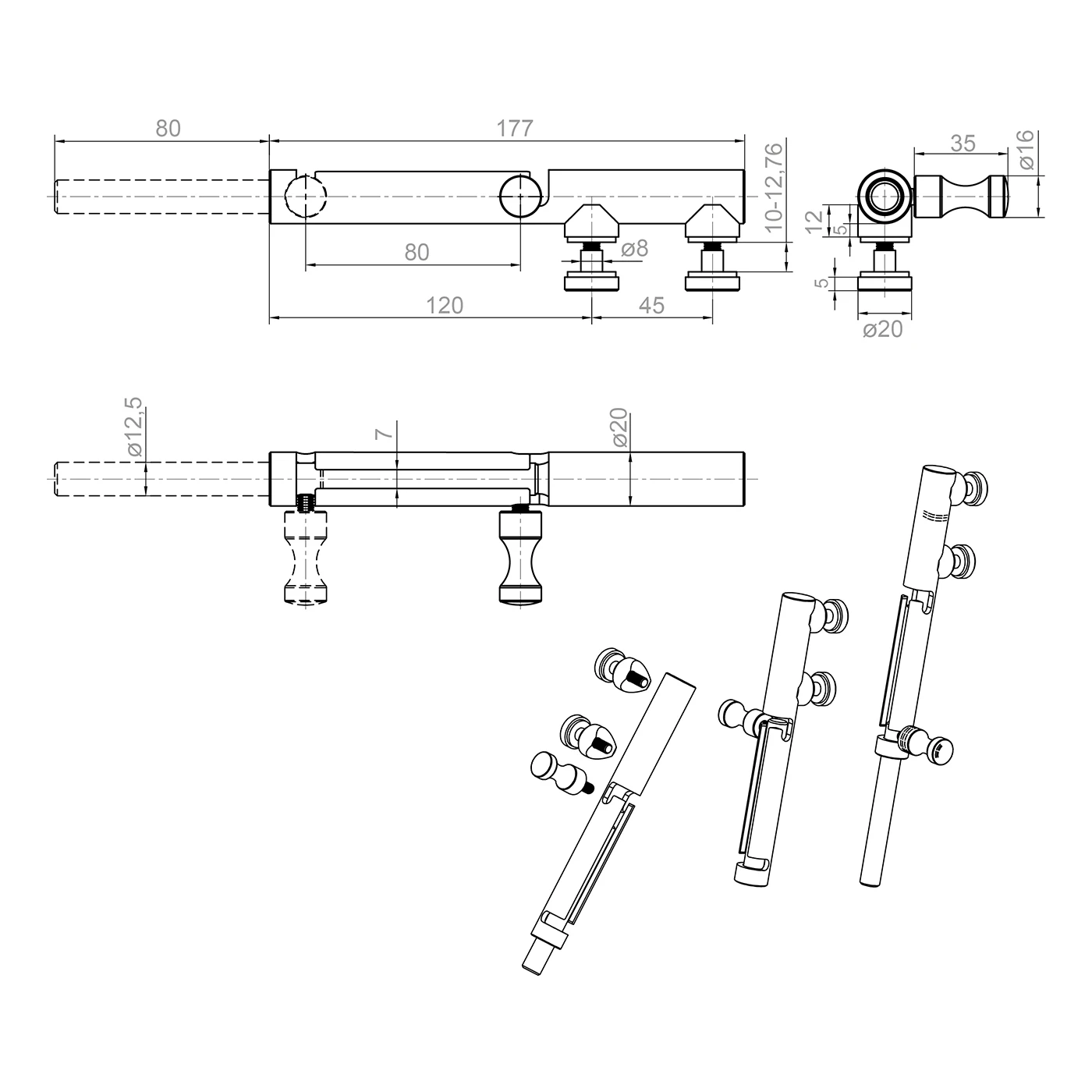

The technical drawing shows complete bolt dimensions along with mounting details. The locking pin with diameter ø12.5 mm extends 80 mm from the body, ensuring secure gate blocking. The operating handle with diameter ø16 mm and length 35 mm enables convenient one-handed operation. Two mounting points with 45 mm spacing and decorative ø20 mm caps guarantee stable, aesthetic installation on the glass panel.
Resistance and durability
Stainless steel AISI 304 is a material with proven resistance to corrosion, moisture and variable atmospheric conditions. Thanks to this, the bolt performs well both inside buildings and outdoors — on terraces, balconies or by swimming pools. The satin coating provides a uniform, matt appearance which does not collect fingerprints and is easy to maintain daily.
Technical data
| Material | A2 - stainless steel |
| Thread type | M10 |
