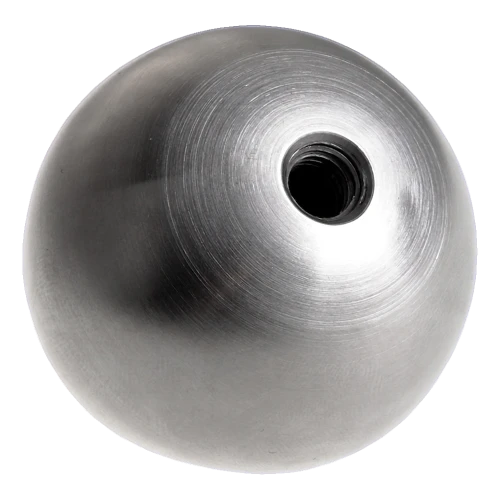

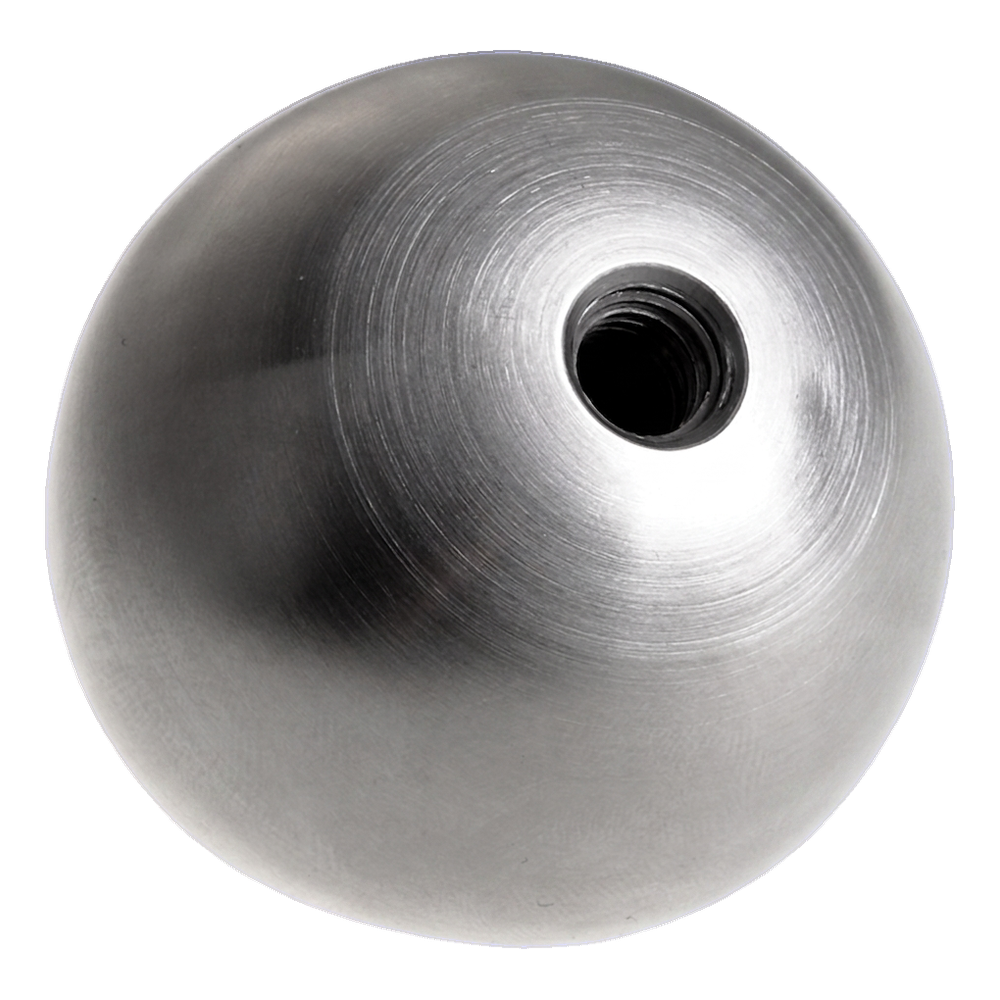

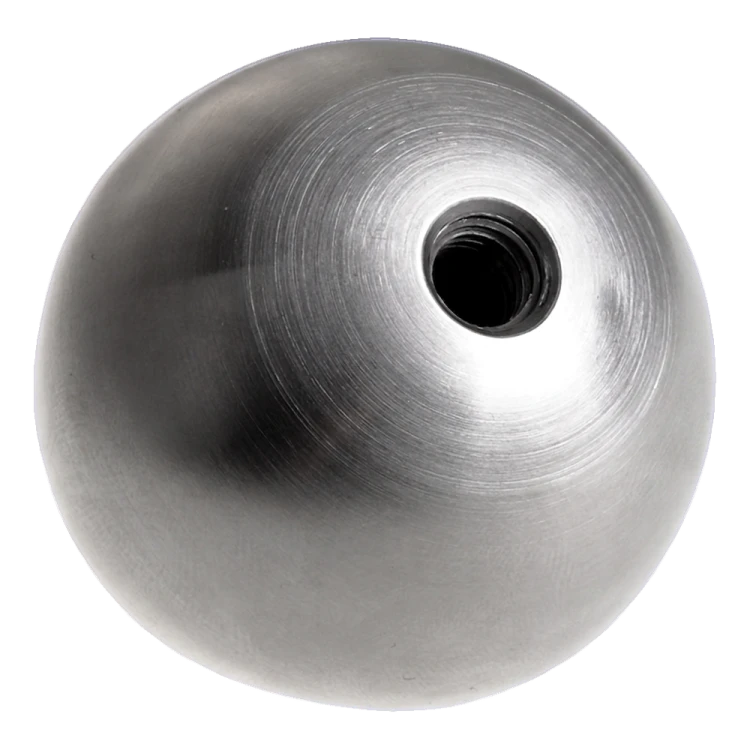

Solid threaded ball fi 25 mm for balustrade – AISI 304 stainless steel satin, M8 thread
0
Description
Solid threaded ball fi 25 mm for balustrade – AISI 304 stainless steel satin, M8 thread
Solid threaded ball fi 25 mm is a decorative finishing element designed for stainless steel balustrades. Thanks to its solid construction and precisely machined M8 thread, the ball screws securely into the post or balustrade rod, giving the entire structure an aesthetic, refined appearance.
The element caps sharp edges of posts and rods, eliminating hazardous elements of the balustrade, whilst simultaneously protecting openings from contamination and corrosion. Made from AISI 304 stainless steel with a satin finish guarantees durability and resistance to atmospheric conditions — the ball will perform well in both internal and external balustrades.

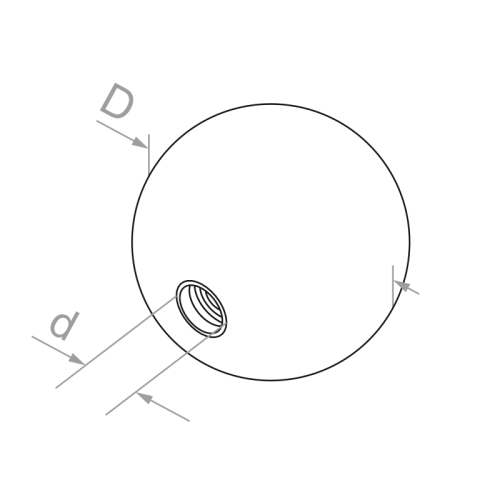

Technical parameters
- Ball diameter (D): 25 mm
- Internal thread (d): M8
- Construction: solid
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Weight: 0.06 kg
- Volume: 15.63 cm³
- Application: universal — internal and external balustrades
- EAN: 5901289672924
Application and installation
The ball is installed by screwing onto a rod or post with external M8 thread. Simple installation without the need for welding or bonding allows for quick balustrade finishing. The element works perfectly with popular profiles and balustrade posts with standard M8 thread, making it a universal solution suitable for most stainless steel balustrade systems.
The satin surface finish provides a uniform, matt appearance that harmoniously combines with other balustrade elements in the same finish. AISI 304 steel guarantees high corrosion resistance, which is particularly important for external building installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
