Solarflex-X Solar Cable 1x6mm² - Red
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.065 kg
Description

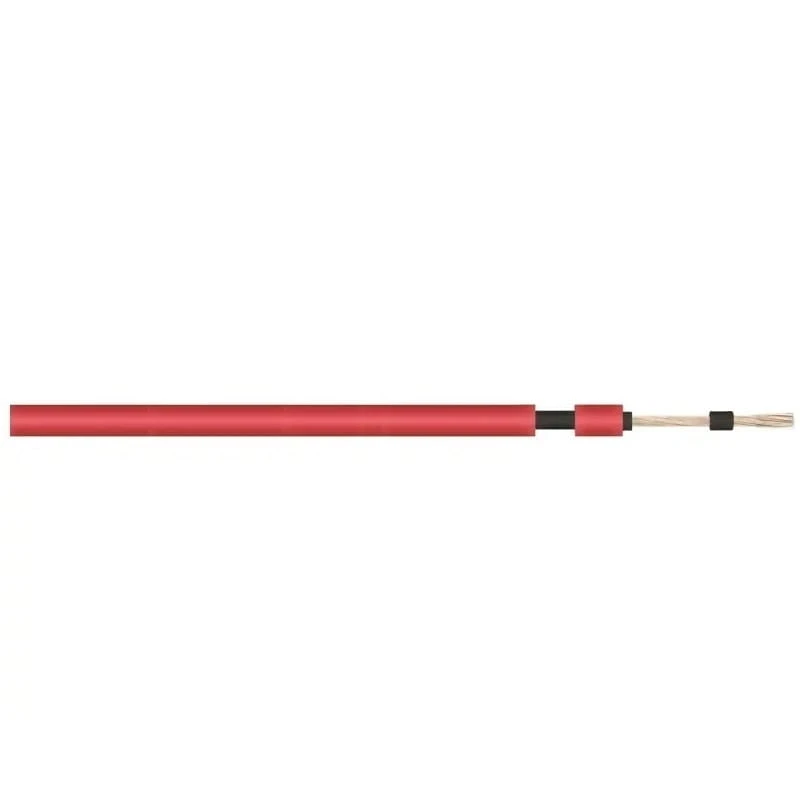

Solarflex-X Solar Cable 1x6mm² - Red
Solar cable for photovoltaic installations 1x6 mm² 0.6/1kV red double insulation SOLARFLEX-X H1Z2Z2 713569 HELUKABEL
- operating voltage: U0/U 1000/1000 VAC, U0/U 1500/1500 VDC, Um 1800 VDC – maximum voltage to earth
- test voltage: 6.5 kVAC
- minimum bending radius: for permanent installation 5 x ∅ cable
- CPR class according to EN 50575: Dca-s2, d2, a1
- TÜV Rheinland certificate: no. R60115689
- operating voltage: 1000 V
- tinned copper conductor according to DIN VDE 0295cl.5, fine wire, IEC 60228 cl.5
- 1st conductor insulation of special cross-linked compound
- 2nd conductor insulation of special cross-linked compound
SPECIFICATION
| Parameter | Value |
|---|---|
| Weight per 1 m | 0.082 kg |
| Number and cross-section of conductors [mm2] | 1 x 6 |
| DC operating voltage | 1.5 / 1.5 kV |
| Insulation colour | Red |
| Operating temperature | -40°C to +90°C |
| Number of working conductors: | 1 |
| Cross-section of working conductors: | 6 mm² |
| AWG/kcmil | 10 |
| Protective conductor | NO |
| Screening | NO |
| Halogen-free | YES |
| External diameter / h x w | 6.2 |
| Fire behaviour | IEC 60332-1-2 |
| Maximum operating temperature: | 90ºC |
| Minimum operating temperature: | -40ºC |
| Copper content [kg/km]: | 57.6 |
Loading...
Technical data
| Application | Solar DC |
| Cross-section [mm²] | 6 |
| Colour | Red |
| Conductor Material | Copper |
| CPR Class | D |
| Rodent Protection | No |
| Cable type | H1Z2Z2-K |
| Brand | HELUKABEL |
