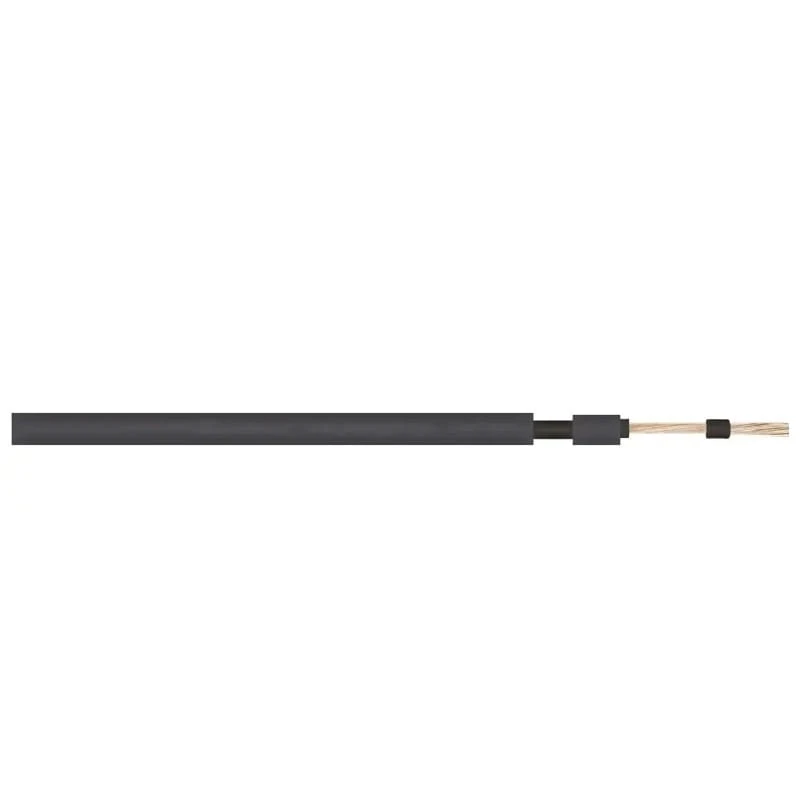

Solarflex-X Solar Cable 1x4mm² - Black
Leave feedback on the product
Solar cable 1x4 mm² for photovoltaic installations, voltage 1.5/1.5 kV DC, operating temperature -40°C to +90°C. Double insulation with cross-linked compound, tinned copper conductor class 5, halogen-free, TÜV Rheinland certified.
Choose a variant:
Individual variants may differ in price
Lengths
Product code:
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 4
- Colour Black
- Conductor Material Copper
- CPR Class D
- Rodent Protection No
- Cable type H1Z2Z2-K
- Brand HELUKABEL
Description
Solarflex-X Solar Cable 1x4mm² - Black
Solar cable for photovoltaic installations 1x4 mm² 0.6/1kV black double insulation SOLARFLEX-X H1Z2Z2-K 713530 HELUKABEL
- operating voltage: U0/U 1000/1000 VAC, U0/U 1500/1500 VDC, Um 1800 VDC – maximum voltage to earth
- test voltage: 6.5 kVAC
- minimum bending radius: when permanently installed 5 x ∅ cable
- CPR class according to EN 50575: Dca-s2, d2, a1
- TÜV Rheinland certificate: no. R60115689
- rated voltage: 1000 V
- tinned copper conductor according to DIN VDE 0295cl.5, fine wire, IEC 60228 cl.5
- 1st conductor insulation of special cross-linked compound
- 2nd conductor insulation of special cross-linked compound
SPECIFICATION
| Parameter | Value |
|---|---|
| Weight per 1 m | 0.06 kg |
| Number and cross-section of conductors [mm2] | 1 x 4 |
| DC operating voltage | 1.5 / 1.5 kV |
| Insulation colour | black |
| Operating temperature | -40°C to +90°C |
| Number of working conductors: | 1 |
| Cross-section of working conductors: | 4 mm² |
| AWG/kcmil | 10 |
| Protective conductor | NO |
| Screening | NO |
| Halogen-free | YES |
| External diameter / h x w | 5.4 |
| Behaviour in case of fire | IEC 60332-1-2 |
| Maximum operating temperature: | 90ºC |
| Minimum operating temperature: | -40ºC |
| Copper content [kg/km]: | 38.4 |
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
