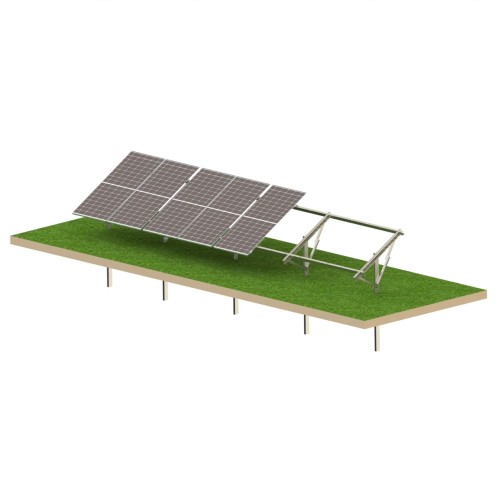

Solar KIT T1V Ultra Strong – Ground-Mounted PV Structure for 8 Panels

Solar KIT T1V Ultra Strong – 8 panels is a complete mounting kit designed for small and medium-sized installation companies that value fast turnaround, low logistics costs and simple installation. KIT means you get everything in one package – no hunting for missing parts.

What does T1V mean? The abbreviation breaks down as: T – the shape of the structure seen from the side, 1 – one row of legs, V – vertical (portrait) panel orientation. Ultra Strong: wind up to 28 m/s (100.8 km/h), snow load 1.6 kN/m² (approx. 163 kg/m²). If you need greater stability, check out the N2V variant with two rows of legs – ideal for more demanding ground conditions.

Why choose it? Solar KIT has been designed for maximum working efficiency. The video shows an installation carried out by one person. In practice, two people can assemble the entire kit in a really short time. Your crew can therefore complete more jobs without having to coordinate larger teams.

Logistics without complications

All components are short and light – none exceeds 2.4 m in length. The entire KIT fits on a single pallet, which significantly simplifies storage. Even a garage is enough. Transport? No problem – the kit fits on an ordinary trailer. Transport costs are minimal, and you don't need any specialist tools for installation.

Compact dimensions do not mean compromising on strength – the structure has been designed to take into account individual wind and snow zones, which guarantees safety even in difficult weather conditions.

Dispatch within 24 hours

We usually pack and dispatch orders within 24 hours on working days. We hold large stocks of all Solar KIT variants, so we can respond quickly to our customers' needs.

Choosing the right version

We offer kits suited to a range of weather conditions. Below you will find a tool that automatically checks the wind and snow zone for any location – simply enter the address of the planned installation.

If the result shows that the selected version does not meet the requirements for a given location, use the comparison table below. It presents all available models along with their full technical specifications. Select the wind and snow zone in the filters to see the kits that meet your criteria.

Technical parameters

The Solar KIT range is available in three strength variants:

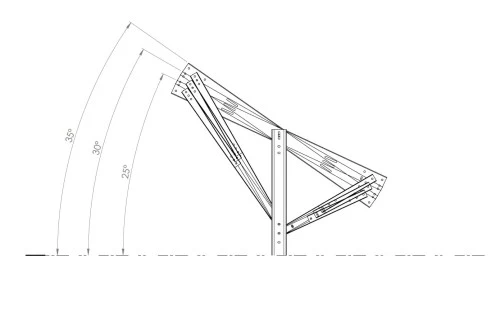

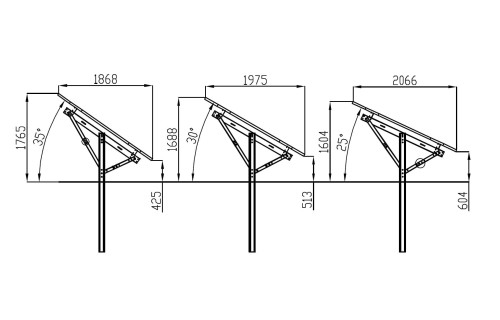

The maximum length of any component does not exceed 2.4 m. The structure is suitable for all popular panels. You choose the tilt angle during installation: 25°, 30° or 35°. Execution class: EXC1.

The steel components feature anti-corrosion protection and are covered by a 25-year warranty on the protective coating. The warranty applies under standard environmental conditions. In locations with an increased risk of corrosion (e.g. coastal areas with a high salt content in the air), different terms may apply – you will find the details in the warranty conditions.

Key benefits for installation companies

Quality and durability

The structure is made of high-grade steel with a Magnelis coating and is covered by a 25-year durability warranty. It meets the requirements of the following standards: EN 1090-1, EN 1090-2, EN 1090-4, PN-EN 1991-1-3 (Eurocode 1 – snow loads), PN-EN 1991-1-4 (Eurocode 1 – wind loads), PN-EN 1993-1-8 (Eurocode 3 – steel structures), PN-EN 1999-1-1 (Eurocode 9 – aluminium structures).

What do you gain as an installer?

Shorter installation time means more jobs per month. Simple logistics mean lower operating costs. Fast delivery translates into satisfied customers. The intuitive design minimises errors and claims. All of this has a direct impact on your profitability.

Kit contents

The Solar KIT package includes all structural components (profiles, connectors), fasteners (stainless steel bolts and washers), tensioners for the steel cables that reinforce the structure, steel cables, mid clamps (universal) and adjustable end clamps to suit every type of panel. The shipment also contains a CE certificate and assembly instructions.
