Solar Cable Solarflex-X 1x6mm² Black PV Wire 1000VAC 1500VDC
Leave feedback on the product
1x6 mm² solar cable for photovoltaic installations with double insulation SOLARFLEX-X. Operating voltage 1000/1000 VAC and 1500/1500 VDC. TÜV certified and CPR class Dca-s2,d2,a1. Temperature range -40°C to +90°C.
Choose a variant:
Individual variants may differ in price
Lengths
Product code:
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 6
- Colour Black
- Conductor Material Copper
- CPR Class D
- Rodent Protection No
- Cable type H1Z2Z2-K
- Brand HELUKABEL
Description

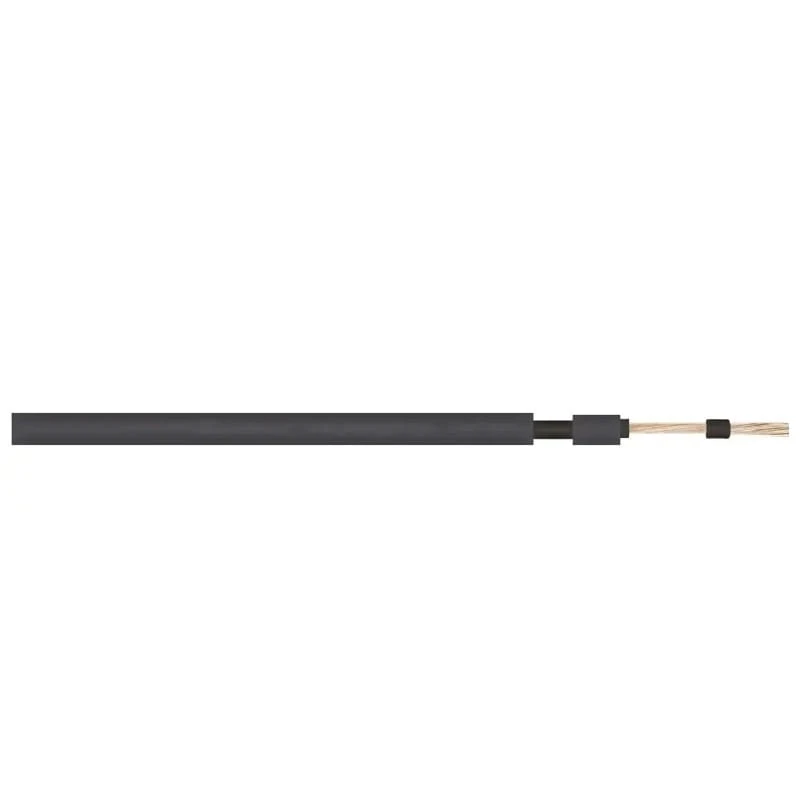

Solarflex-X Solar Cable 1x6mm² - Black
Solar cable for photovoltaic installations 1x6 mm² 0.6/1kV black double insulation SOLARFLEX-X H1Z2Z2-K 713531 HELUKABEL
SPECIFICATION
| Parameter | Value |
|---|---|
| Operating voltage: | U0/U 1000/1000 VAC, U0/U 1500/1500 VDC, Um 1800 VDC – maximum voltage to earth |
| Test voltage: | 6.5 kVAC |
| Minimum bending radius: | For fixed installation 5 x ∅ cable |
| CPR class according to EN 50575: | Dca-s2, d2, a1 |
| TÜV Rheinland certificate: | No. R60115689 |
| Rated voltage: | 1000 V |
| Weight per 1 m | 0.082 kg |
| Number and cross-section of cores [mm2] | 1 x 6 |
| DC operating voltage | 1.5 / 1.5 kV |
| Insulation colour | Black |
| Operating temperature | -40°C to +90°C |
| Number of working cores: | 1 |
| Cross-section of working cores: | 6 mm² |
| AWG/kcmil | 10 |
| Protective conductor | NO |
| Screening | NO |
| Halogen-free | YES |
| Outer diameter / h x w | 6.2 |
| Behaviour in case of fire | IEC 60332-1-2 |
| Maximum operating temperature: | 90ºC |
| Minimum operating temperature: | -40ºC |
| Copper content [kg/km]: | 57.6 |
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
