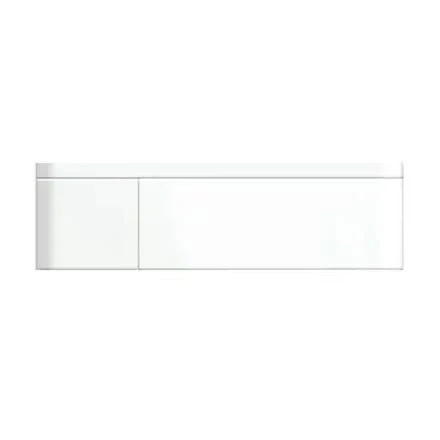

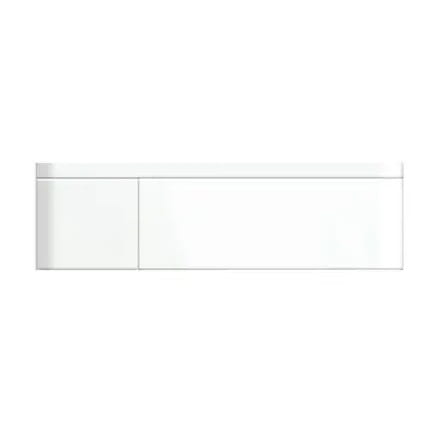

Sofar Battery Module 2.56kWh GTX3000HV
Leave feedback on the product
2.56 kWh lithium-ion battery module with 51.2 VDC voltage and 50 Ah capacity. Scalable system 4-10 modules, lifespan 6000 cycles, charge/discharge current 25-30 A. Natural cooling, CAN communication, UN38.3 and IEC62619 certified.
Product code: GPV-402-02
Product features
Compare all battery modules
- Usable capacity [kWh] 2.56
- Continuous power [kW] 1.28
- Peak power 10 s [kW] 2.56
- Maximum current [A] 30
- Chemistry LFP
- Lifespan [cycles] 6000
- IP rating 65
- Min. charging temp. [°C] 0
- Max. charging temp. [°C] 55
- Min. discharge temp. [°C] ‑20
- Max. discharge temp. [°C] 60
- Min. modules [pcs] 4
- Max modules [pcs.] 10
Description
Sofar Battery Module 2.56kWh GTX3000HV
GTX3000HV SOFAR is an advanced energy storage battery module with a capacity of 2.56 kWh.
This high-voltage lithium battery system has been designed with scalability and flexibility in mind. The rack-mountable construction allows for easy installation and optimal use of available space.

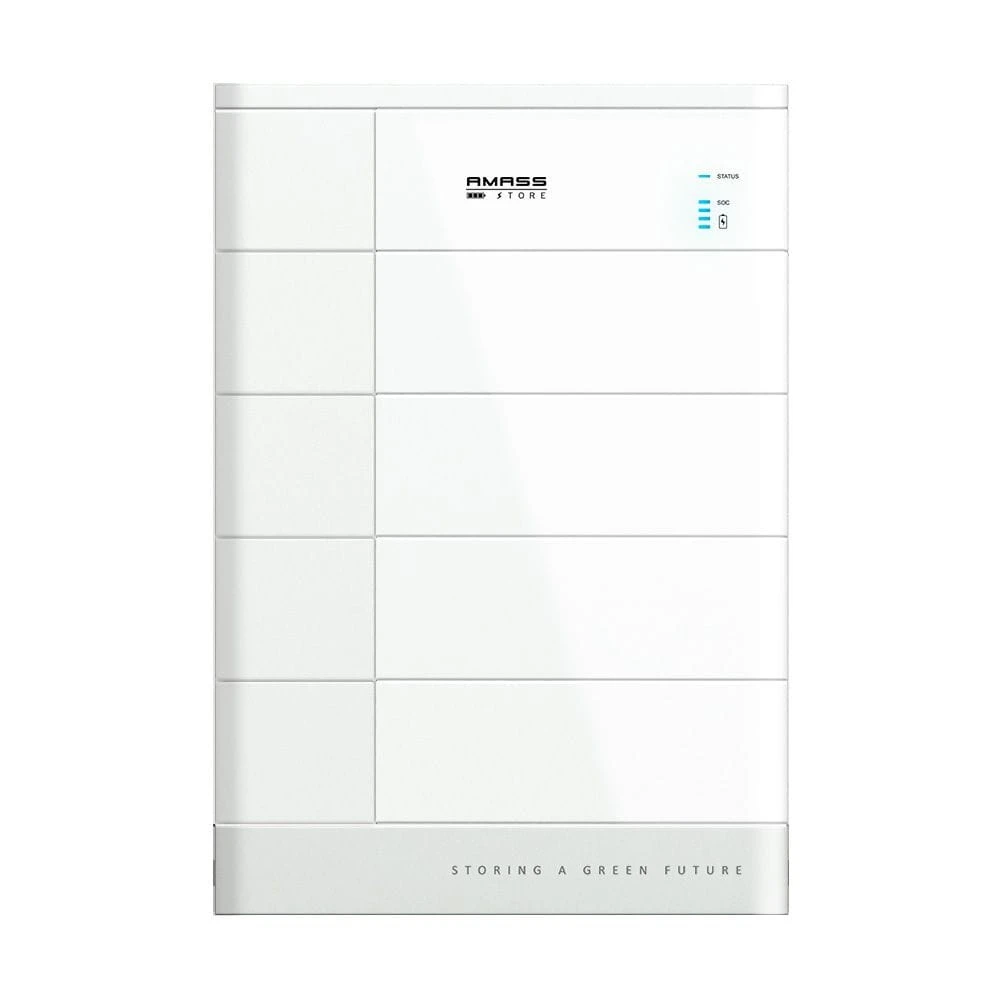

With the ability to configure from four to ten modules and up to four control units connected in parallel, users have full control over the capacity and performance of their energy system. Multi-level energy management ensures efficient use of resources, whilst a high lifespan of 6000 cycles guarantees long-term reliability.
For proper operation, a minimum of four modules and a control unit with base are required. This allows users to tailor their energy storage system to individual needs, ensuring reliability and operational efficiency.
Technical Parameters
| Parameter | Value |
|---|---|
| Series and type | Energy storage battery module 2.56kWh GTX3000HV SOFAR |
| Battery type | lithium-ion |
| Model | GTX3000HV |
| Nominal battery voltage | 51.2 VDC |
| Weight | 30 kg |
| Storage temperature [°C] | ≤25℃, 12 months ≤35℃, 6 months ≤45℃, 3 months |
| Battery capacity [Ah] | 50 Ah |
| DOD | < 90 % |
| Certifications | UN38.3, IEC62619, IEC62040-1, SAA |
| Cooling | natural |
| Communication | CAN |
| Scalability | Min. 4 modules/ Max. 10 modules |
| Remote diagnostics | Yes |
| Real-time data monitoring | Yes |
| Life cycle | 6000 cycles@ 80% DOD / 25℃ / 0.5C, 60% EOL |
| Nominal charging current [A] | 25 A |
| Maximum charging current [A] | 30 A |
| Nominal discharge current [A] | 25 A |
| Maximum discharge current [A] | 30 A |
