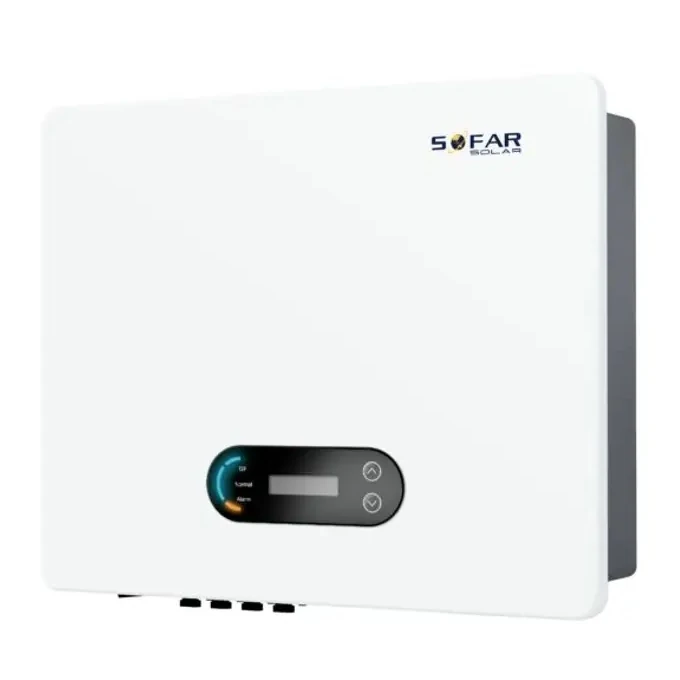

Sofar 3kW Three-Phase Inverter 4.8A 2MPPT DC Switch WiFi Module
Description
Inverter 3kW 3-Phase 4.8A KTLX-G3 2MPPT DC Switch WiFi Module 3.3KTLX-G3 SOFAR
The Sofar 3.3KTLX-G3 inverter is a three-phase device with 3kW power output and 4.8A current, equipped with two MPPT inputs and a WiFi module. It is part of a series of inverters ranging from 3kW to 24kW, designed for residential photovoltaic installations of various sizes.
Sofar inverters are characterised by high quality, thanks to the use of components from renowned suppliers and a meticulous production process. The product offers reliability and excellent quality at an affordable price, whilst the 12-year warranty confirms the high quality of Sofar brand devices. The units are equipped with a WiFi module, enabling remote management and monitoring of the installation's operation. Additionally, Sofar inverters feature an aluminium, stainless housing with IP 65 protection class, allowing for outdoor installation.
The latest G3 series of Sofar inverters stands out with low start-up voltage, high maximum efficiency, and new software with remote update capability.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 50000W |
| Number of phases | 3-Phase |
| Installation type | On-grid |
| Max. output power [VA] | 3300 VA |
| AC output current [A] | 4.8 A |
| AC voltage range [V] | 310Vac-480Vac (according to national standard) |
| Frequency [Hz] | 50Hz/60Hz |
| Frequency range [Hz] | 45Hz-55Hz/54Hz-66Hz (according to national standard) |
| Number of MPP trackers | 2 |
| Start-up voltage [V] | 160 V |
| MPP voltage range [V] | 140 V - 1000 V |
| Number of DC connections | 1/1 |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | Yes |
| DC insulation measurement | Yes |
| DC switch | Yes |
| Max. efficiency (PV installation – mains supply) | 98.4% |
| Dimensions [mm] | 513 x 425 x 169 mm |
| Weight [kg] | 17 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
| Safety standards: | IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30) |
| Grid standards: | AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21/CEI 0-16, UNE 206 007-1, EN50549, G98/G99, EN50530, NB/T32004 |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Type | On-grid |
| Power | 3-5 kW |
| Number of phases | Three-phase |
| Number of MPPT | 2 MPPT |
| WiFi | Yes |
| DC switch | Yes |
