Sliding gate trolley pack: 2× trolley (9-roller, plastic) + accessories
Leave feedback on the product
Complete running gear set for a self-supporting sliding gate: 2× 9-roller trolleys, approach bracket and approach roller. Load capacity 600 kg, rail 80×80×5 mm, rollers made of plastic.
Product code: 000-252
Product features
[PIM] wozki #111
- Rail Size 80x80x5
- Product Type Package / KIT with accessories
- Roller Material Plastic
- Number of Rollers [szt.] 9
- Trolley Construction Fixed
- Max. load capacity [kg] 600
- Running System Type Rolling system
Description
Sliding Gate Set – 2 x 9-Roller Carriages + Catcher Bracket + Entry Roller
A complete hardware set for a cantilever sliding gate, designed for 80×80×5 mm tracks. The set includes two 9-roller carriages with plastic rollers, a catcher bracket and an entry roller — everything you need for the professional installation of a gate with a maximum load of up to 600 kg.

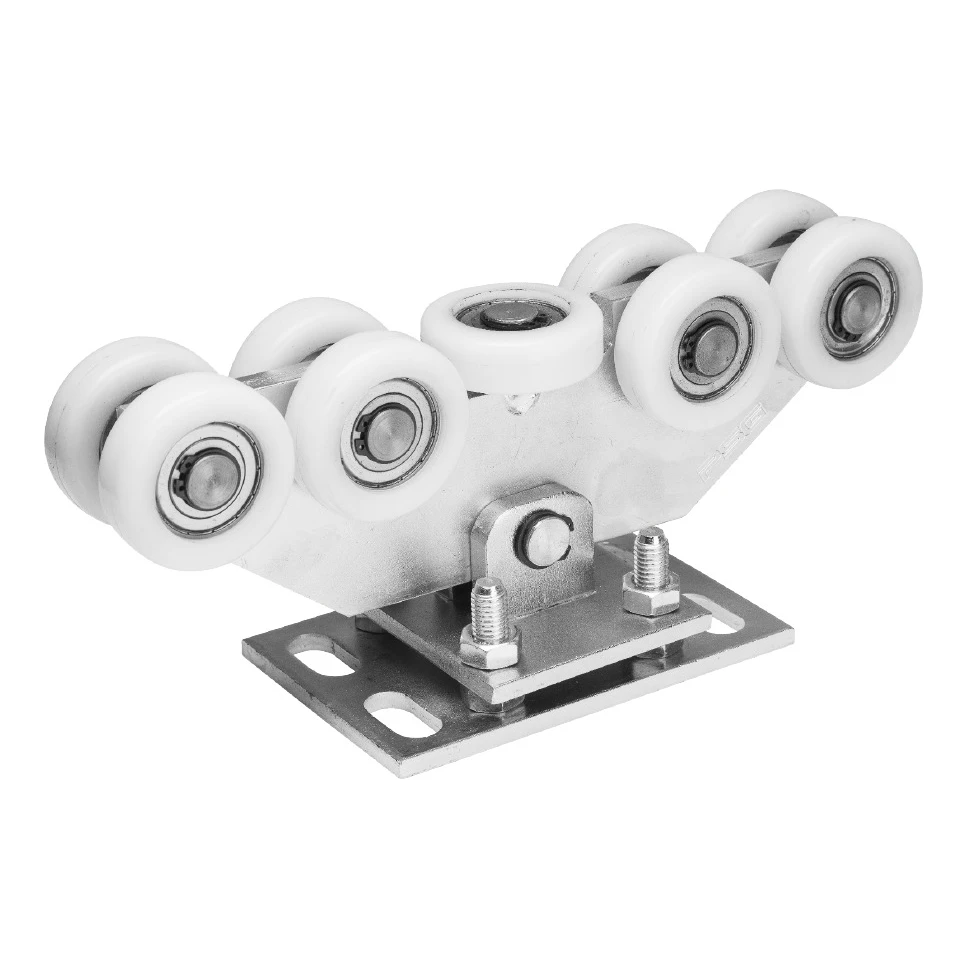

Carriage 80 – quiet and smooth gate operation
The carriages, fitted with 9 plastic rollers, ensure exceptionally quiet and smooth operation of the sliding gate. Thanks to the ball bearings in each roller, rolling resistance is minimal, which means less wear on the gate motor and greater ease of use. Each carriage is designed for an 80×80×5 mm track and has a sturdy mounting plate with bolt holes.
- Maximum carriage load: 600 kg
- Number of rollers: 9 pcs (plastic with bearings)
- Compatible track: 80×80×5 mm
- Carriage dimensions (L × H × W): 180 × 120 × 155 mm
- Mounting plate hole spacing: 140 mm
- Roller axle height: 65 mm
- Plate width: 68 mm
- Quantity in set: 2 pcs

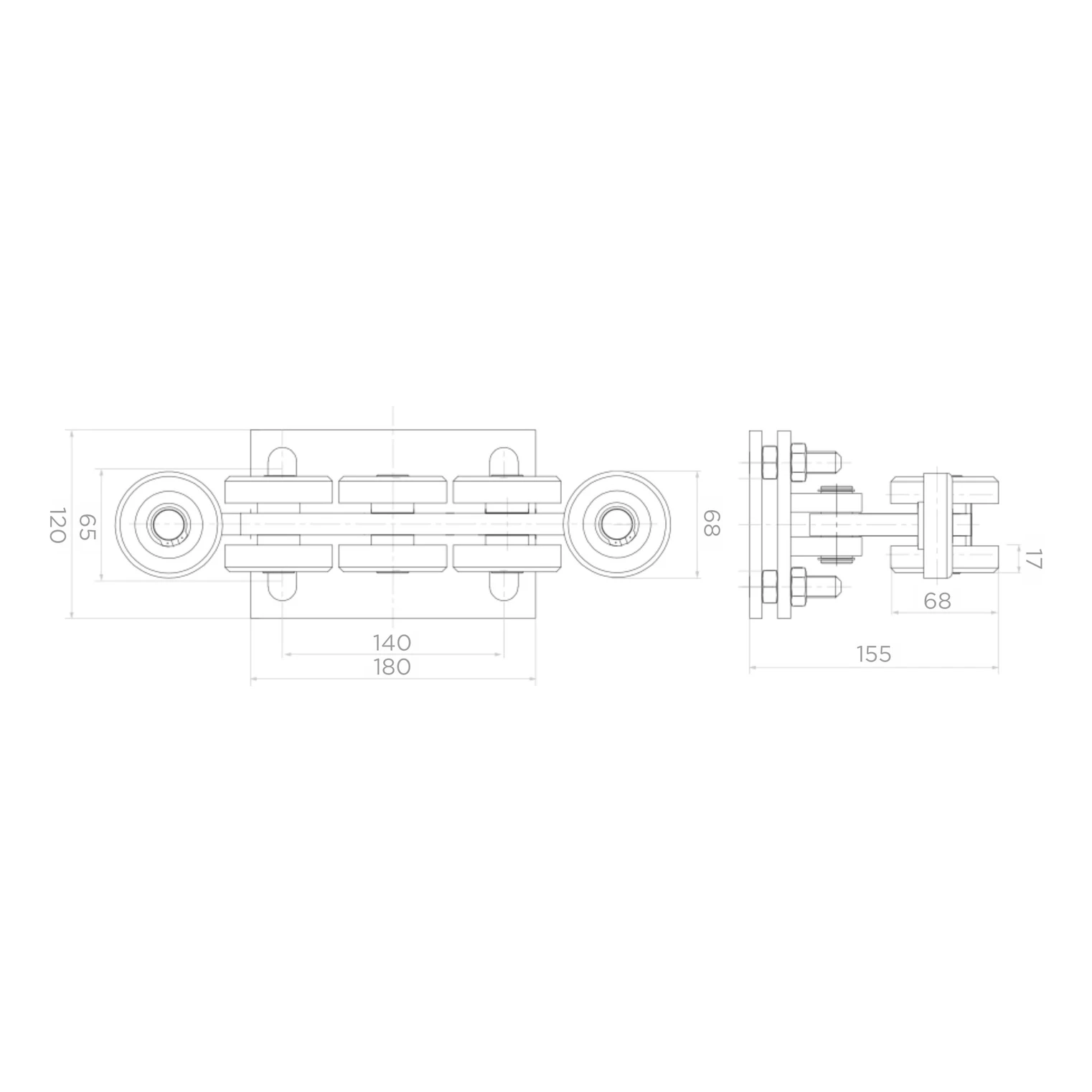

The detailed technical drawing of the carriage shows all the key mounting dimensions. The base plate, measuring 180 × 68 mm, has adjustable bolts that allow the gate to be levelled precisely after installation. The overall height of the carriage is 120 mm and its depth is 155 mm, which should be taken into account when designing the foundation.

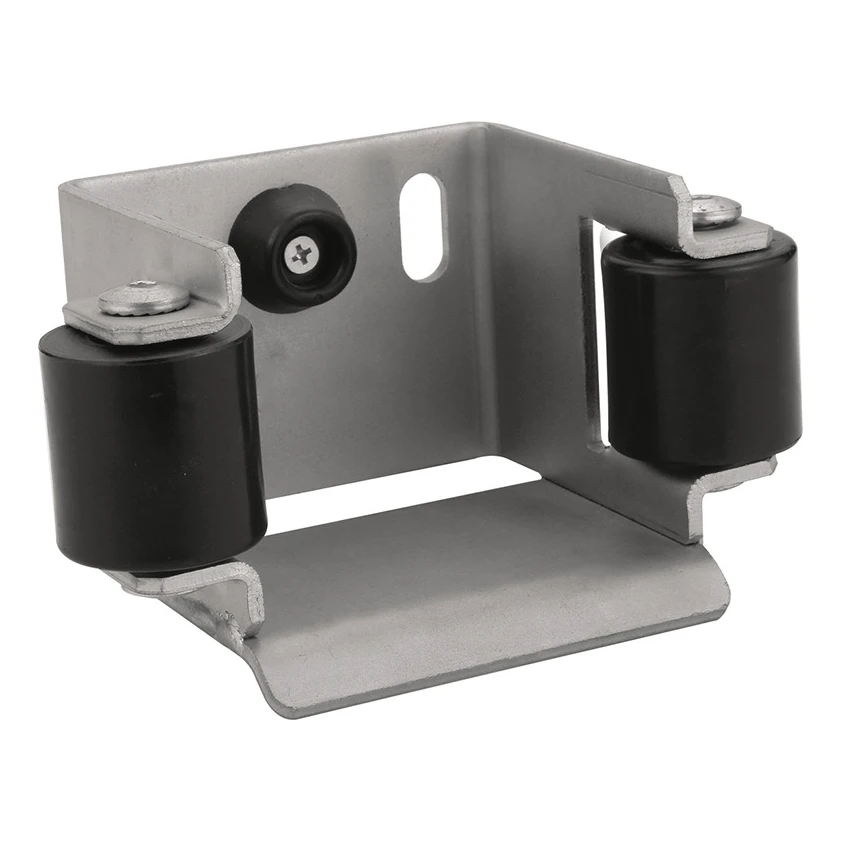

Catcher bracket – stability and protection
The steel catcher bracket serves a dual function — it stabilises the gate when closed and distributes its weight across a greater number of load-bearing elements, which significantly extends the service life of the carriages. Fitted with two plastic guide rollers spaced 88 mm apart, it guides the gate track precisely into position. On the back plate there are two mounting holes and a rubber buffer that cushions the closing of the gate. Galvanised product, weather-resistant.
- Compatible track: 80×80 mm
- Width between rollers: 88 mm
- Bracket dimensions (L × W × H): 100 × 90 × 85 mm
- Sheet thickness: 4 mm
- Finish: galvanised
- Quantity in set: 1 pc

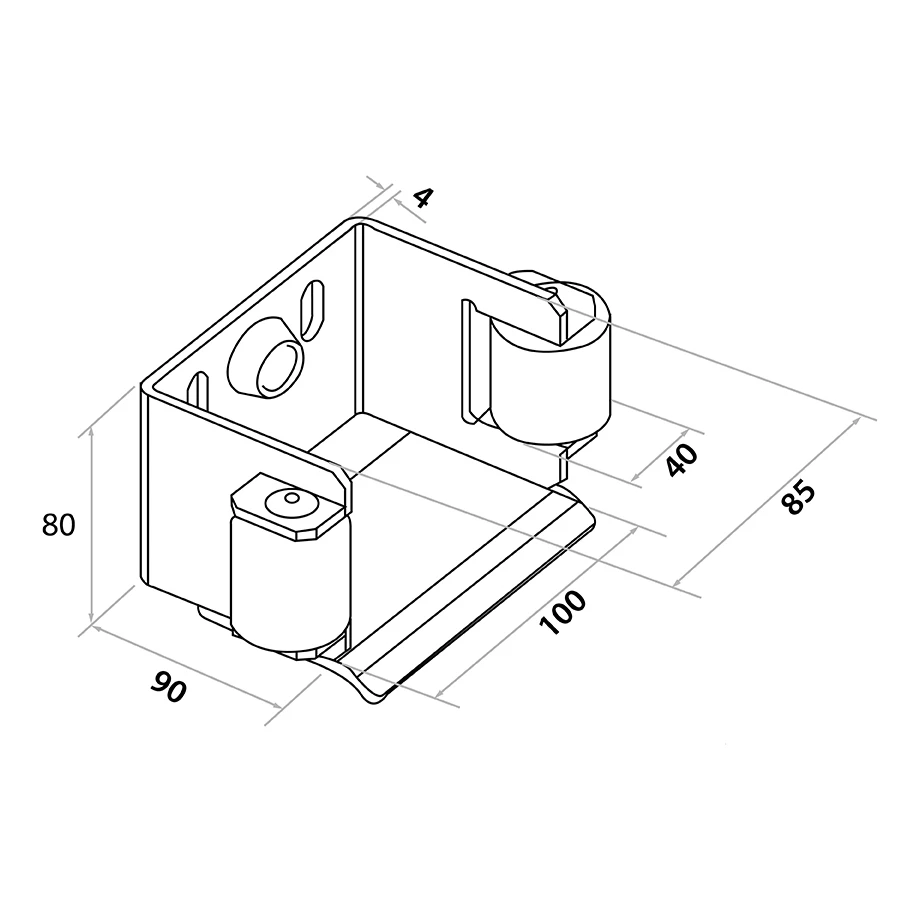

The dimensional drawing of the catcher bracket shows its key mounting parameters: base 100 × 90 mm, height 80 mm (85 mm with rollers), and a guide roller hole with a diameter of 40 mm. The construction, made from 4 mm thick sheet steel, provides the necessary rigidity and durability.

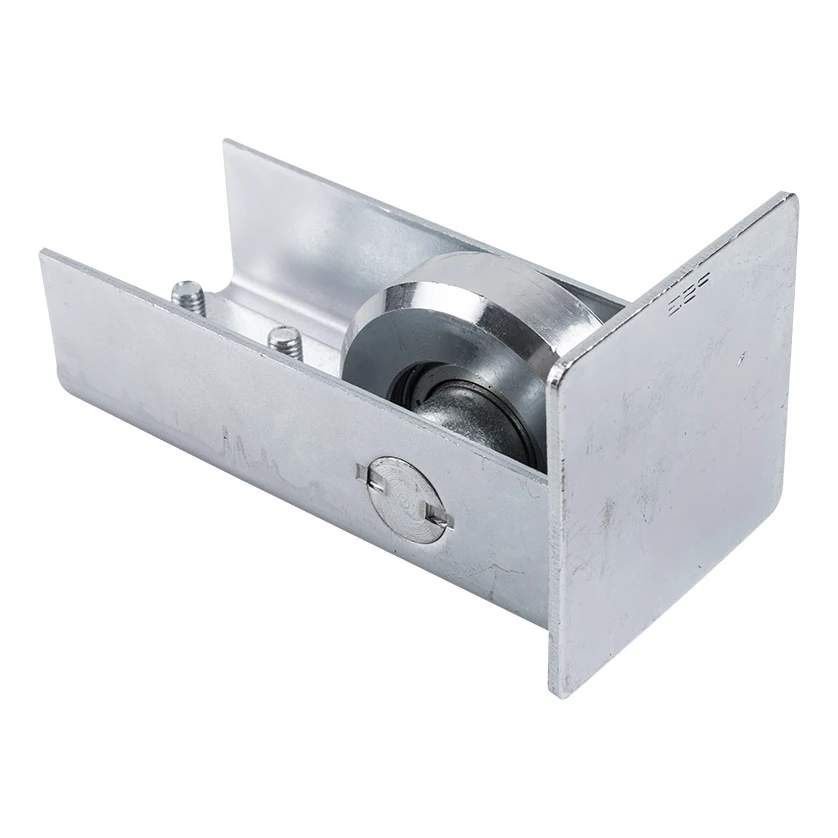

Entry roller – extended system life
The steel entry roller is mounted at the start of the cantilever sliding gate track. Its job is to guide the track gently onto the carriages each time the gate closes, which significantly reduces impact and extends the service life of the entire mechanism. It also provides protection against snow and ice building up inside the track. Mounting bolts are included. Galvanised product.
- Compatible track: 80×80×5 mm
- Housing dimensions (L × W × H): 148 × 80 × 62 mm
- Roller width: 64 mm
- Housing sheet thickness: 3 mm
- Finish: galvanised
- Included: mounting bolts
- Quantity in set: 1 pc

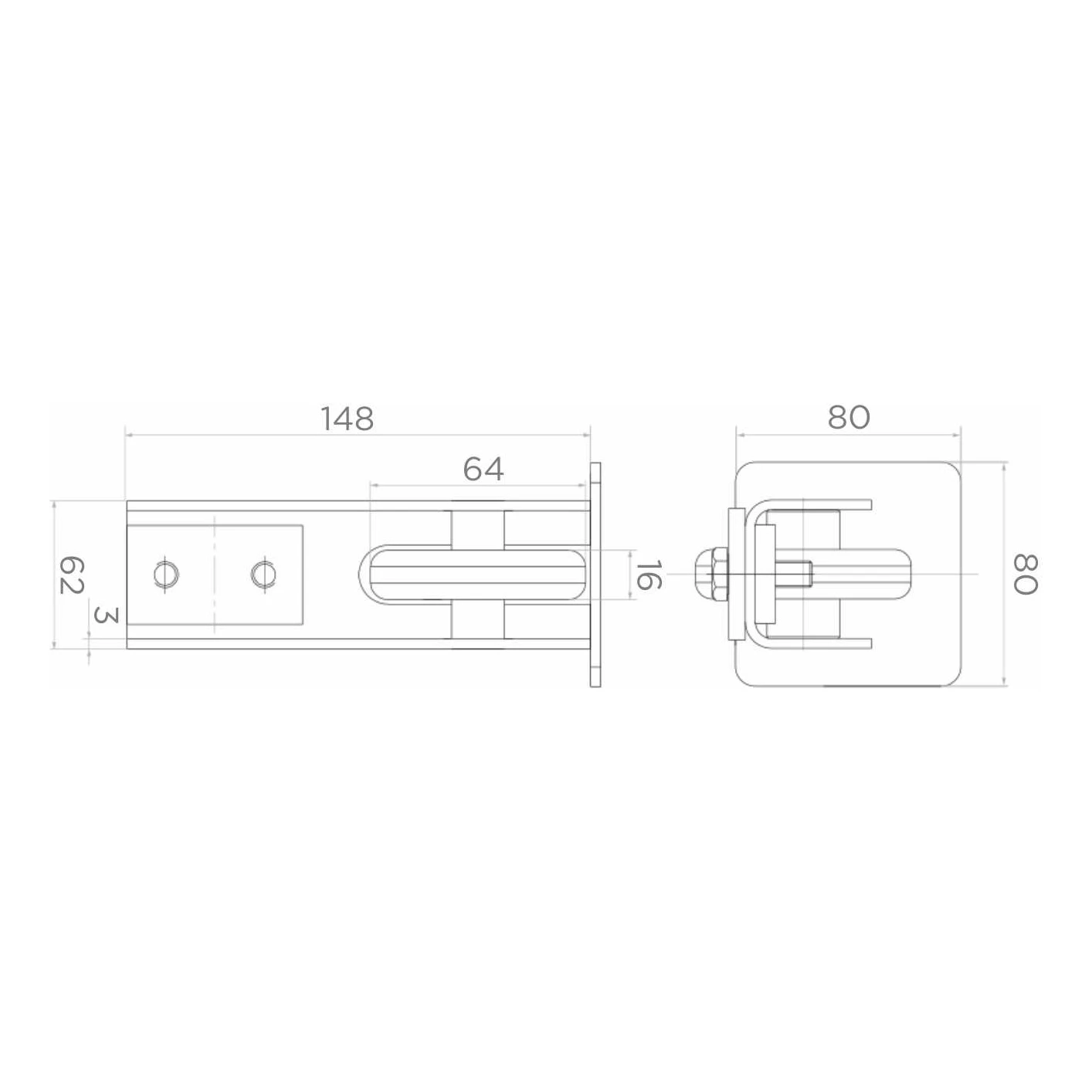

The technical drawing of the entry roller shows the housing dimensions: length 148 mm, width 80 mm, height 62 mm (sheet thickness 3 mm). The inner roller width is 64 mm, and the axle height is 16 mm from the base of the housing.

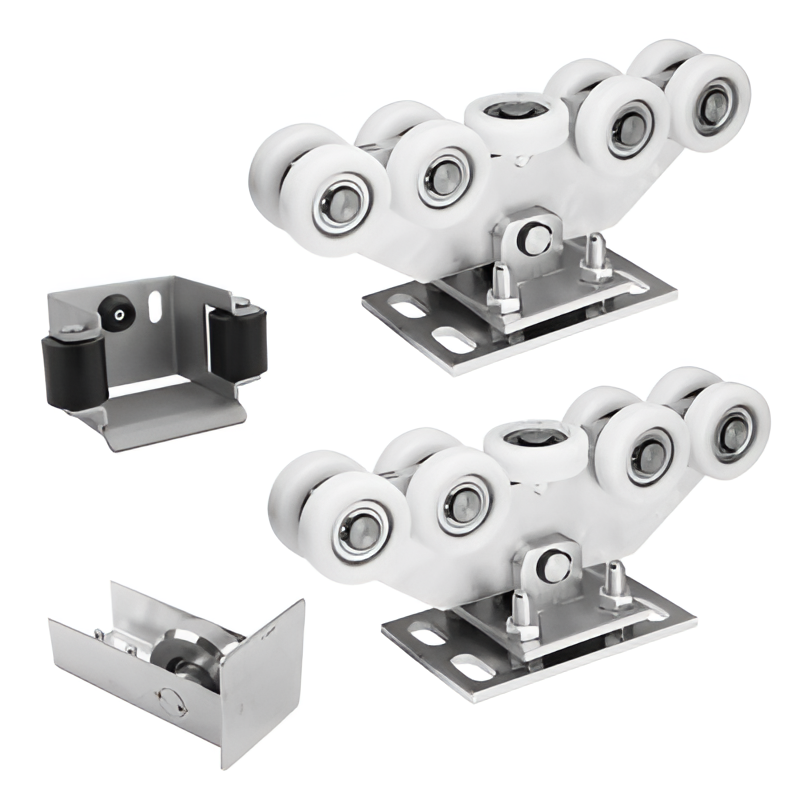

Set contents
- Carriage 80 (9 rollers, plastic rollers) – 2 pcs
- Catcher bracket with two guide rollers – 1 pc
- Entry roller with mounting bolts – 1 pc
The set is intended for the professional installation of cantilever sliding gates on 80×80×5 mm tracks. All steel components are galvanised, which ensures corrosion resistance and long-lasting performance in outdoor conditions. The weight of the complete set is 17.22 kg.
Technical specification of the set
- Compatible track: 80×80×5 mm
- Maximum load (per carriage): 600 kg
- Carriage roller material: plastic with bearings
- Steel component finish: galvanised
- Set weight: 17.22 kg
- EAN: 5903313203586
