Single-sided glass clamp 8-12.76 mm fi 60 mm AISI 304 flat system satin
Leave feedback on the product

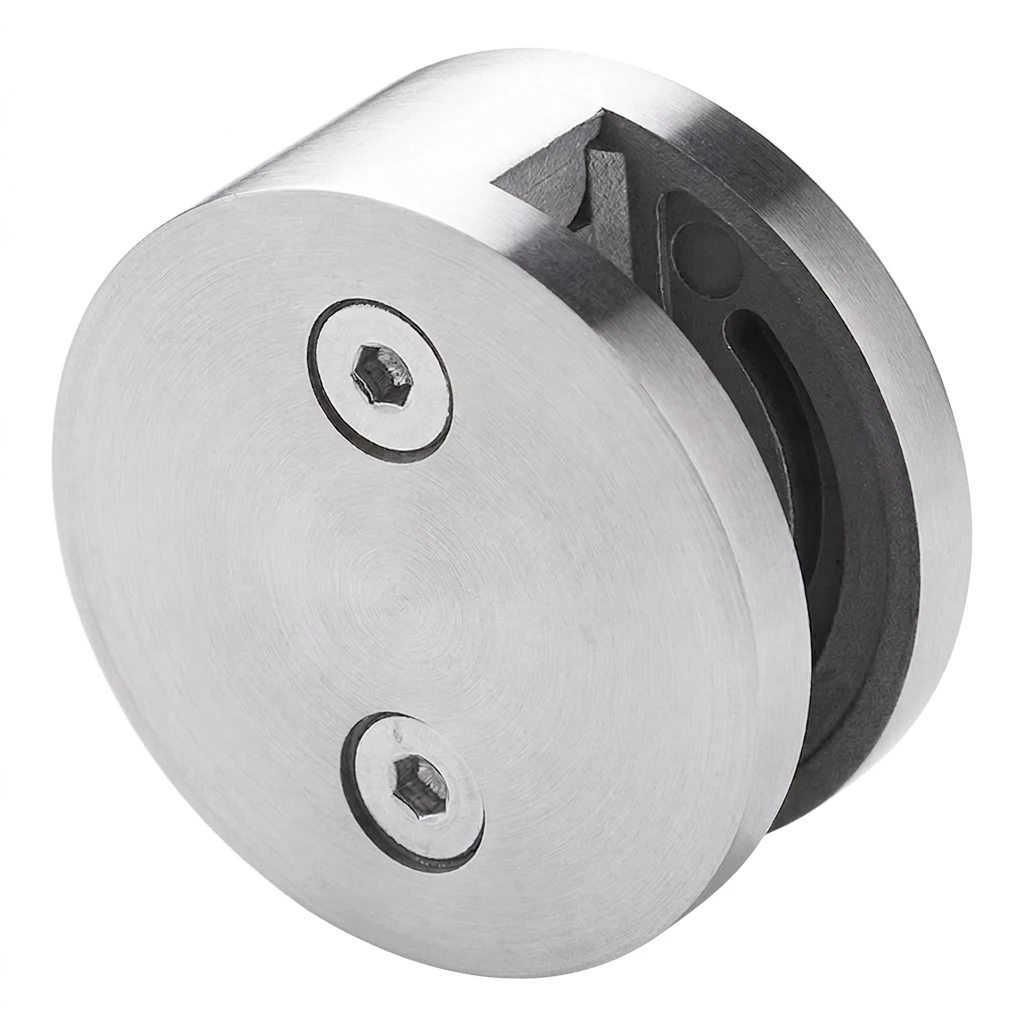

Single-sided glass clamp in AISI 304 stainless steel with a satin finish, diameter Ø60 mm, depth 40 mm. Accommodates glass panes with a thickness of 8–12.76 mm.
Product code: 6000-000-472
Product features
[PIM] uchwyty-do-szkla #124
- Material AISI 304
- Finish Satin
- Mounting System Flat
- Glass Thickness [mm] 8-12,76
Description
Single-Sided Glass Clamp Ø60 mm – AISI 304 Steel, Glass 8–12.76 mm
A round, single-sided glass clamp designed for mounting glass panels with a thickness of 8–12.76 mm. An ideal structural component for balcony, terrace, and interior balustrades — fixed by bolting to a flat-surface post, it securely connects the glass infill to the structural post. Made from AISI 304 stainless steel with a satin finish, it offers excellent corrosion resistance and an attractive, matte surface appearance.
Structural advantages
- Adds rigidity to the balustrade structure — reliable retention of the glass panel
- Prevents the glass panel from sliding out of the post structure
- Attractive appearance — satin finish complements modern balustrade designs
- Allen screws allow clamping force adjustment without removing the clamp
- Flat-surface post mounting system — fast and repeatable installation

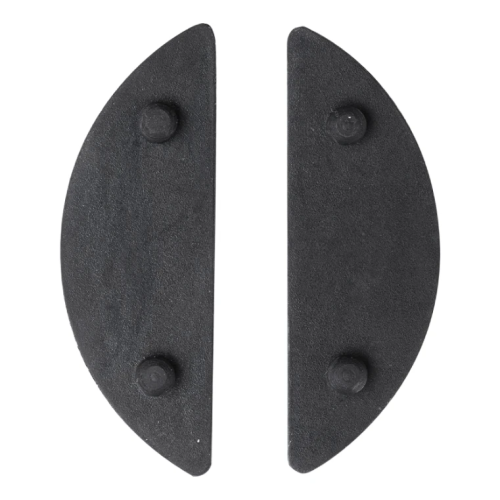

The clamp requires the use of rubber gaskets, which are selected according to the thickness of the glass being fitted. Gaskets are available as separate accessories, allowing the clamp to be flexibly adapted to various panel thicknesses within the 8–12.76 mm range.

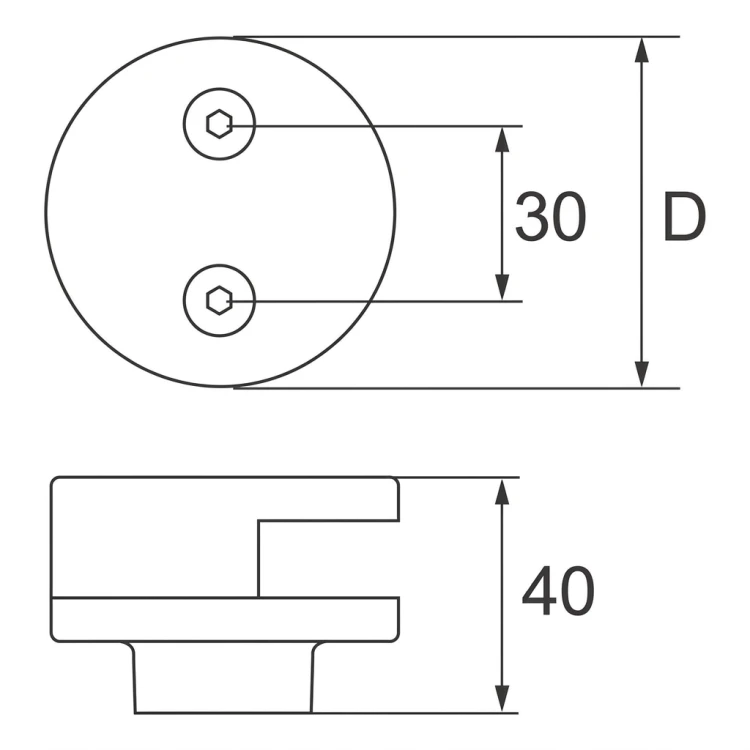

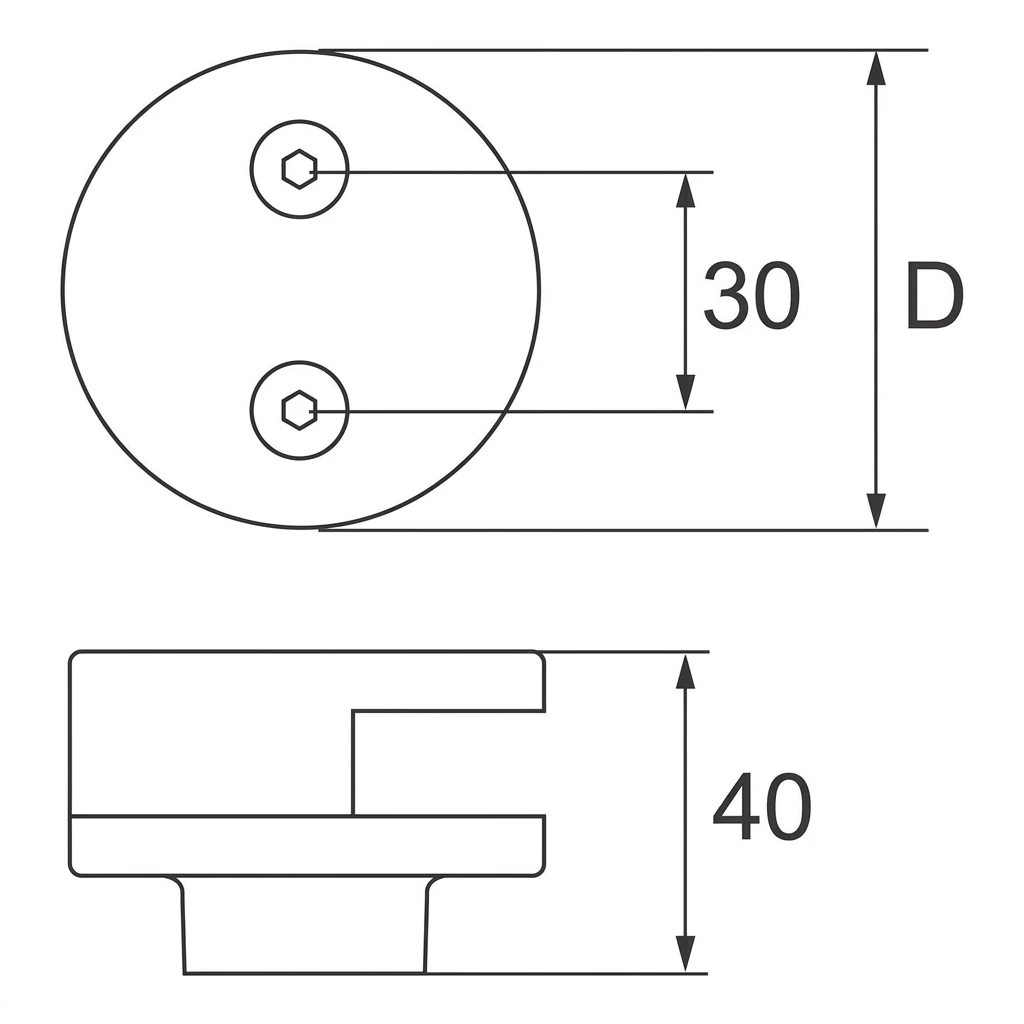

Dimensions and technical specifications
- Clamp diameter (D): 60 mm
- Overall depth: 40 mm
- Fixing screw centre distance: 30 mm
- Glass thickness: 8–12.76 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: single-sided clamp for flat-surface system
- Weight: 0.35 kg
- Volume: 258.75 cm³
- EAN: 5901289670807
The glass clamp is one of the key components for fitting glass infills in balustrades. Thanks to its wide range of compatible glass thicknesses (8–12.76 mm) and its universal flat-surface mounting system, this model is suitable for the majority of standard post balustrade configurations — whether on balconies, terraces, or in interior spaces.
