Single drive-in ground anchor l=35cm galvanized steel
Leave feedback on the product

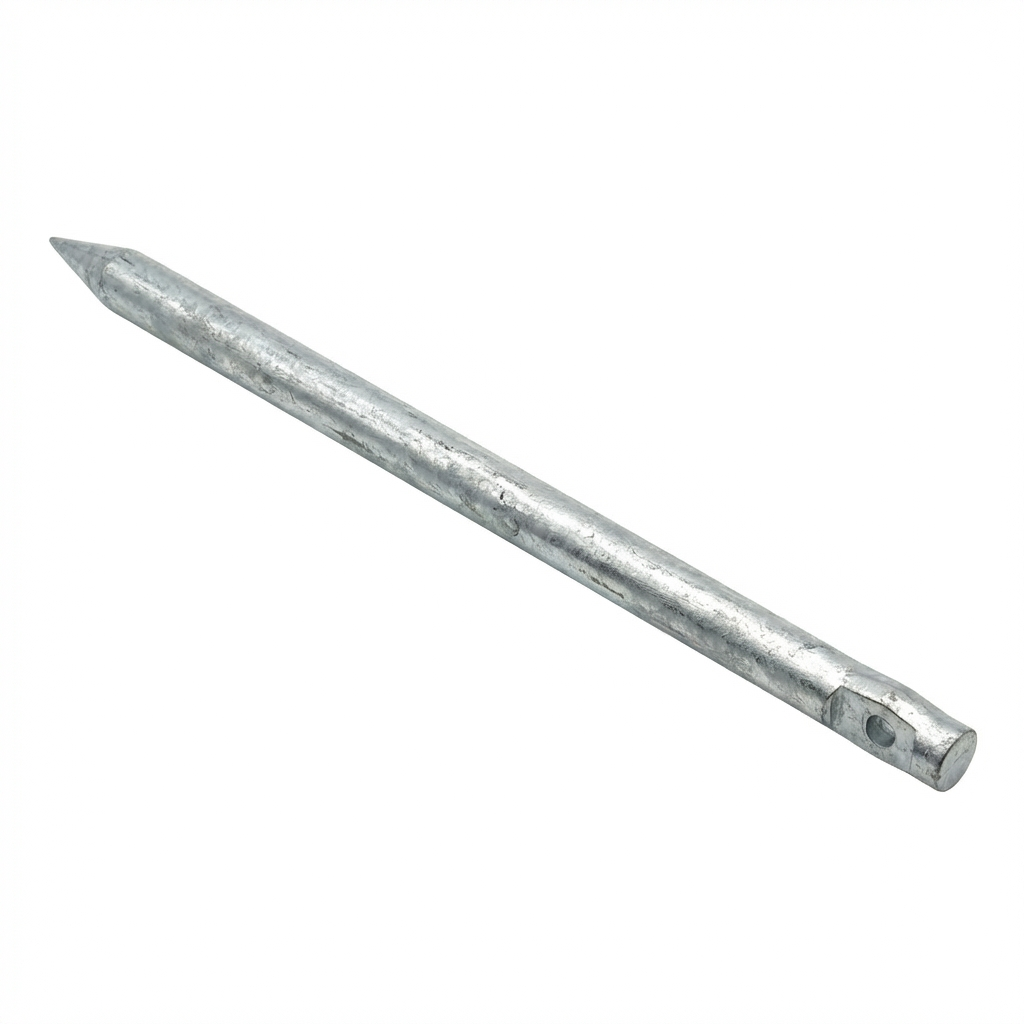

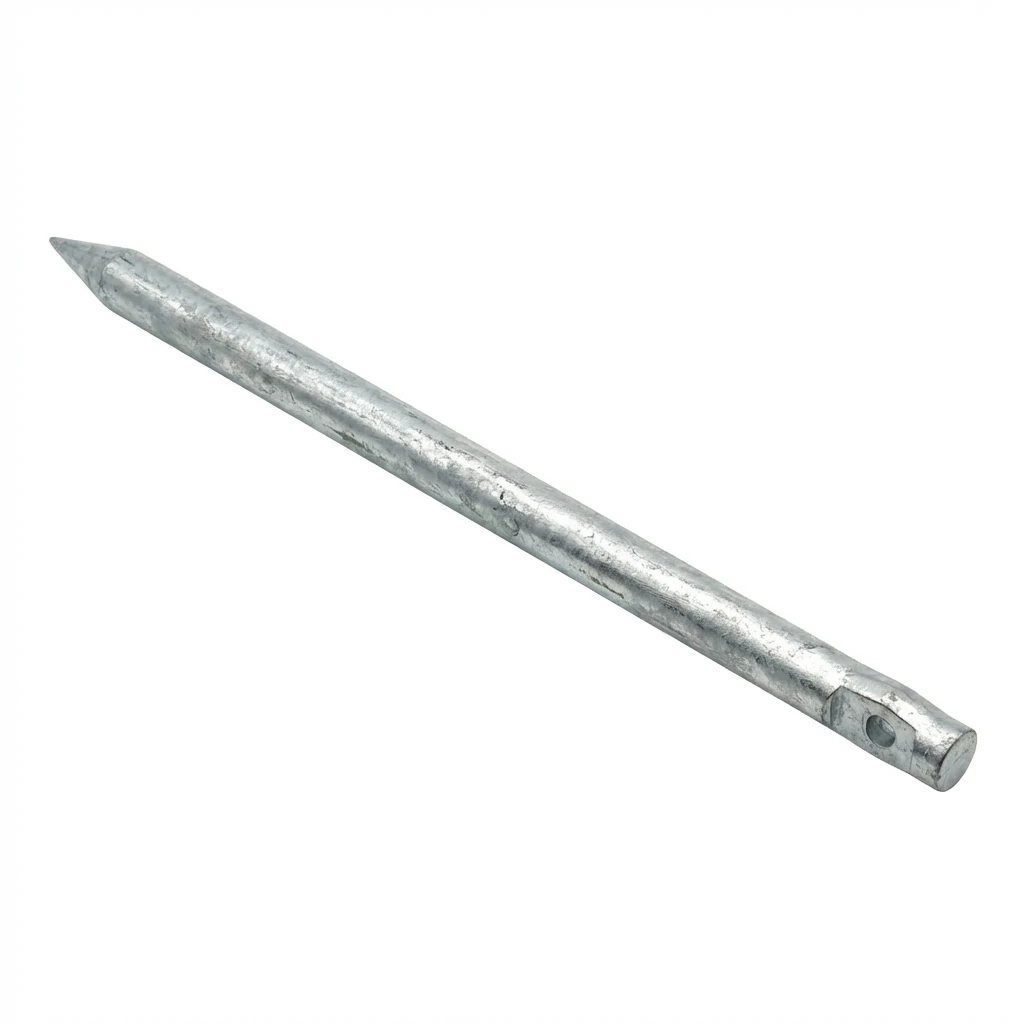

Single drive-in earth rod L=350 mm made of galvanically galvanised steel for anchoring Ø8 mm lightning conductors in the ground. Pointed end facilitates installation.
Product code: 000-164
Description
Single Drive-in Earth Anchor L=350 mm – Galvanised Steel
Single drive-in earth anchor with a length of 350 mm is a reliable component for anchoring lightning and earthing conductor stays in the ground. Made from galvanised steel, it provides high corrosion resistance and long-lasting durability for the installation.
The anchor is designed to be driven into the ground and serves as a fixing point for round conductors with a diameter of Ø8 mm. The pointed tip facilitates driving even into harder substrates, whilst the mounting hole enables secure attachment of the lightning conductor.
Galvanised coating provides effective corrosion protection, ensuring the anchor retains its properties for years even in challenging ground conditions.
Applications
- Anchoring stays for lightning protection installations
- Securing earthing conductors in the ground
- Fixing point for single guy wires
Technical Data
- Material: galvanised steel
- Length: 350 mm
- Shaft diameter: Ø18 mm
- Hole diameter: Ø10 mm
- Conductor range: round wire Ø8 mm
- Type: single
- GTIN: 5901832918356
