  • Side mounting of post fi 42.4 mm to pipe fi 100 mm AISI 304 satin 000-299 (1)
  • Side mounting of post fi 42.4 mm to pipe fi 100 mm AISI 304 satin 000-299 (2)
PSG

Side mounting of post fi 42.4 mm to pipe fi 100 mm AISI 304 satin

Go to Product feedback

Side wall mount for balustrade post fi 42.4 mm in AISI 304 stainless steel with satin finish. Mounting plate 100 mm, wall distance 51 mm.

Go to full description
with VAT without VAT
Price €6.64
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] mocowania-slupkow #129

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm

Description

Side fixing for balustrade post fi 42.4 mm – AISI 304 stainless steel satin finish

Side fixing for balustrade post with a diameter of 42.4 mm is a robust structural component designed to secure the lower section of a post to a wall. It is ideally suited for stair and balcony balustrades, providing a stable and aesthetically pleasing connection between the post and a lateral surface.

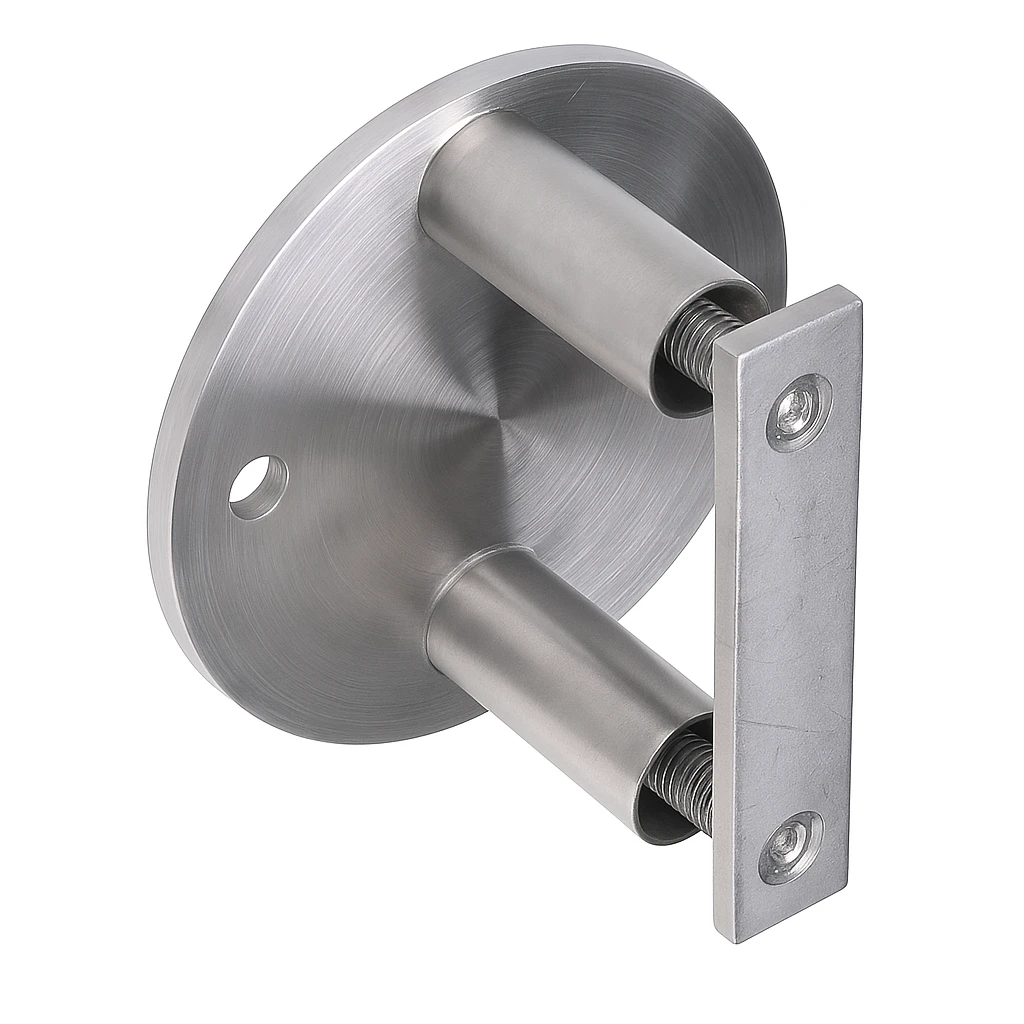

Side fixing for balustrade post fi 42.4 mm – product view in satin-finish stainless steel
Side fixing for balustrade post fi 42.4 mm – product view in satin-finish stainless steel

Manufactured entirely from AISI 304 stainless steel with a satin finish, this fixing combines excellent corrosion resistance with a modern, understated appearance. The satin surface complements other stainless steel balustrade system components perfectly and is easy to keep clean.

The design, based on a circular mounting plate with fixing holes and two threaded studs with an intermediate connector, ensures a secure and durable post fixing. Installation is quick and straightforward — the component is pressed against the wall using bolts, significantly reducing on-site working time.

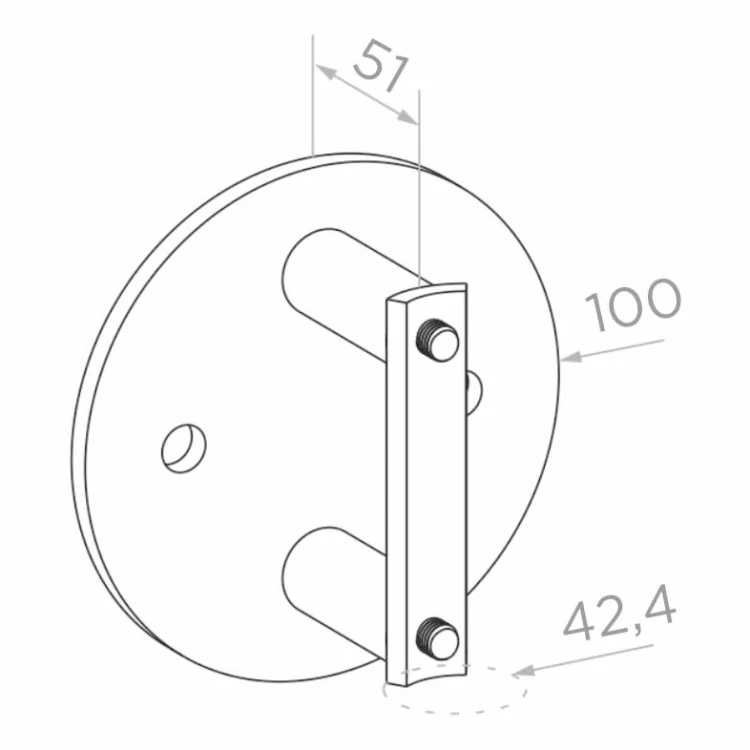

Technical drawing of the side fixing with dimensions: plate diameter 100 mm, standoff 51 mm, post diameter 42.4 mm
Technical drawing of the side fixing with dimensions: plate diameter 100 mm, standoff 51 mm, post diameter 42.4 mm

Dimensions and Technical Specifications

  • Post diameter: 42.4 mm
  • Mounting plate diameter: 100 mm
  • Standoff from wall: 51 mm
  • Material: AISI 304 stainless steel
  • Surface finish: satin
  • Weight: 0.5 kg
  • Packaging volume: 550 cm³
  • Package contents: 1 pc.
  • EAN: 5901289673617

Applications

This fixing is intended for balustrade systems using posts with a diameter of 42.4 mm. It is suitable wherever a balustrade post must be mounted laterally to a wall — in particular for stair and balcony balustrades as well as stairwells. Thanks to the use of stainless steel, the component can be installed both indoors and outdoors.
